Parts Location: Illustration

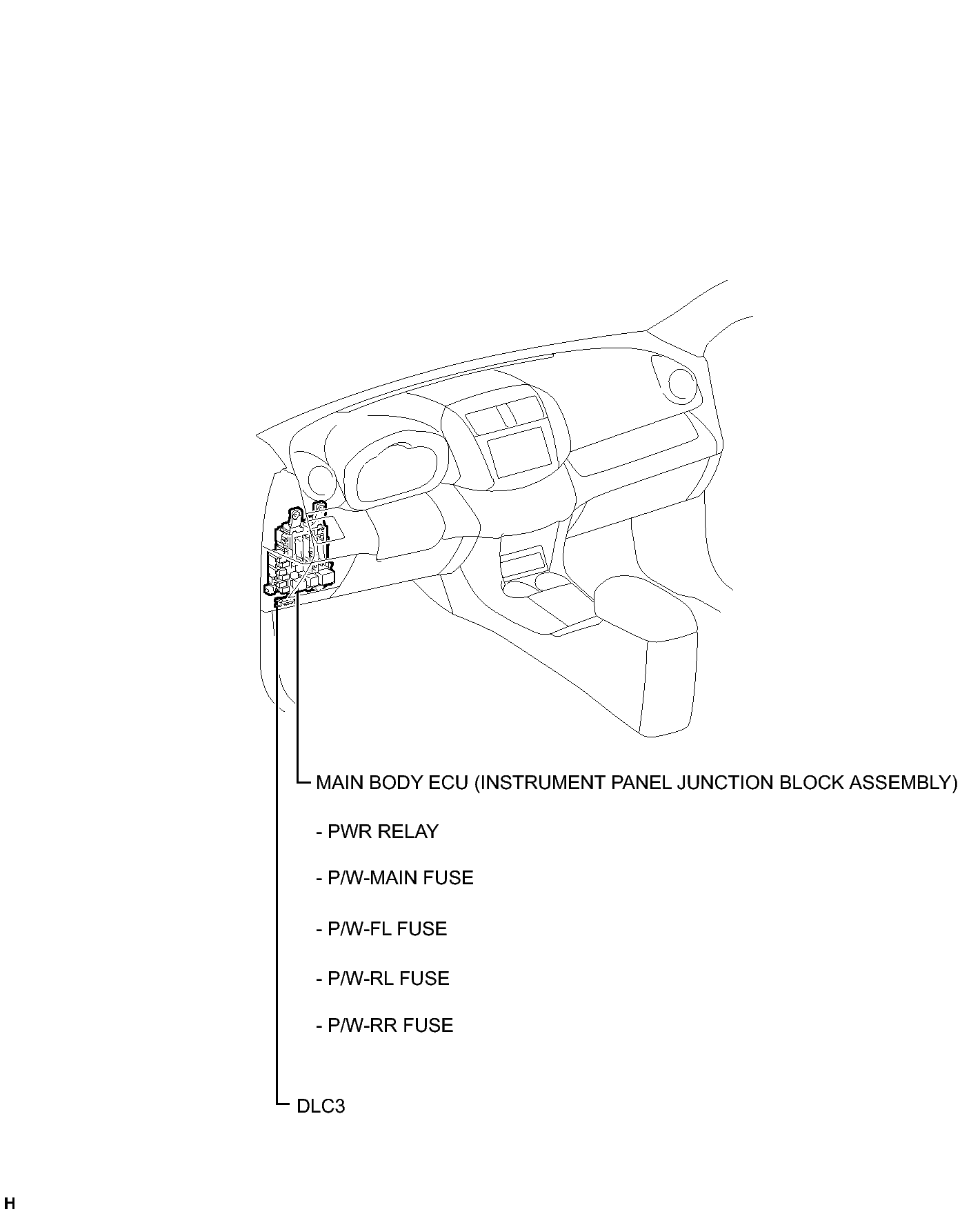

Fig 1: Identifying Power Window Control System Component Locations (1 Of 2)
GTY368067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

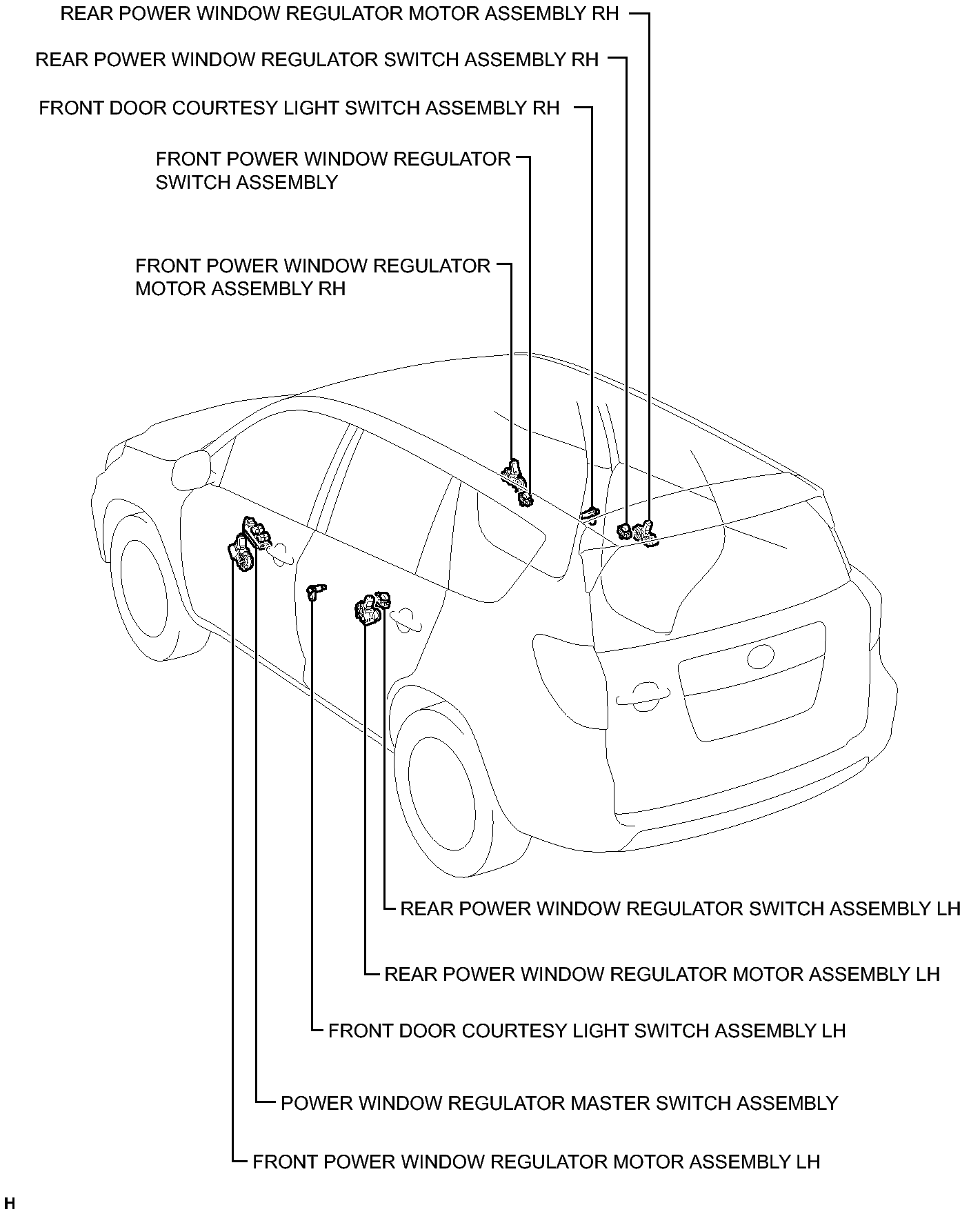

Fig 1: Identifying Power Window Control System Component Locations (2 Of 2)
GTY377143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
