Power Outlet: Notes

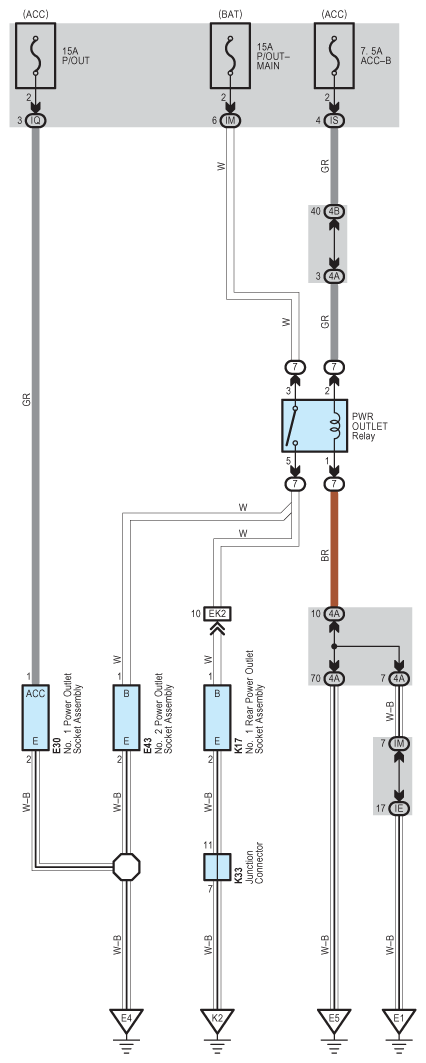

Fig 1: Power Outlet Wiring Diagram
G09110557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
