Section 18 (Occupant Classification System (Diagnostics - Introduction) (Electric))
›
Occupant Classification System
›
System Diagram
›
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.

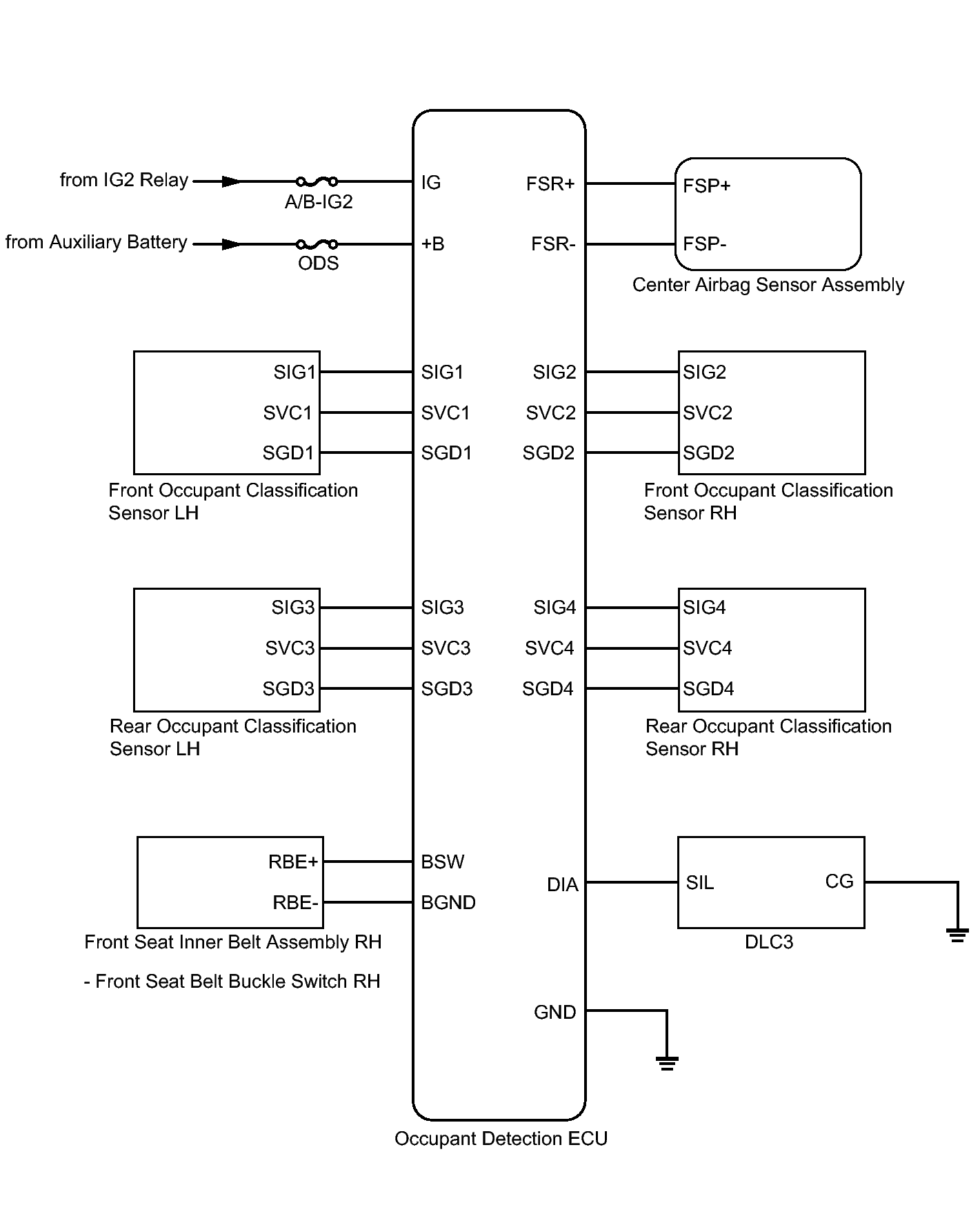

Fig 1: Occupant Classification System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
