Active Control Engine Mount: Components: Illustration

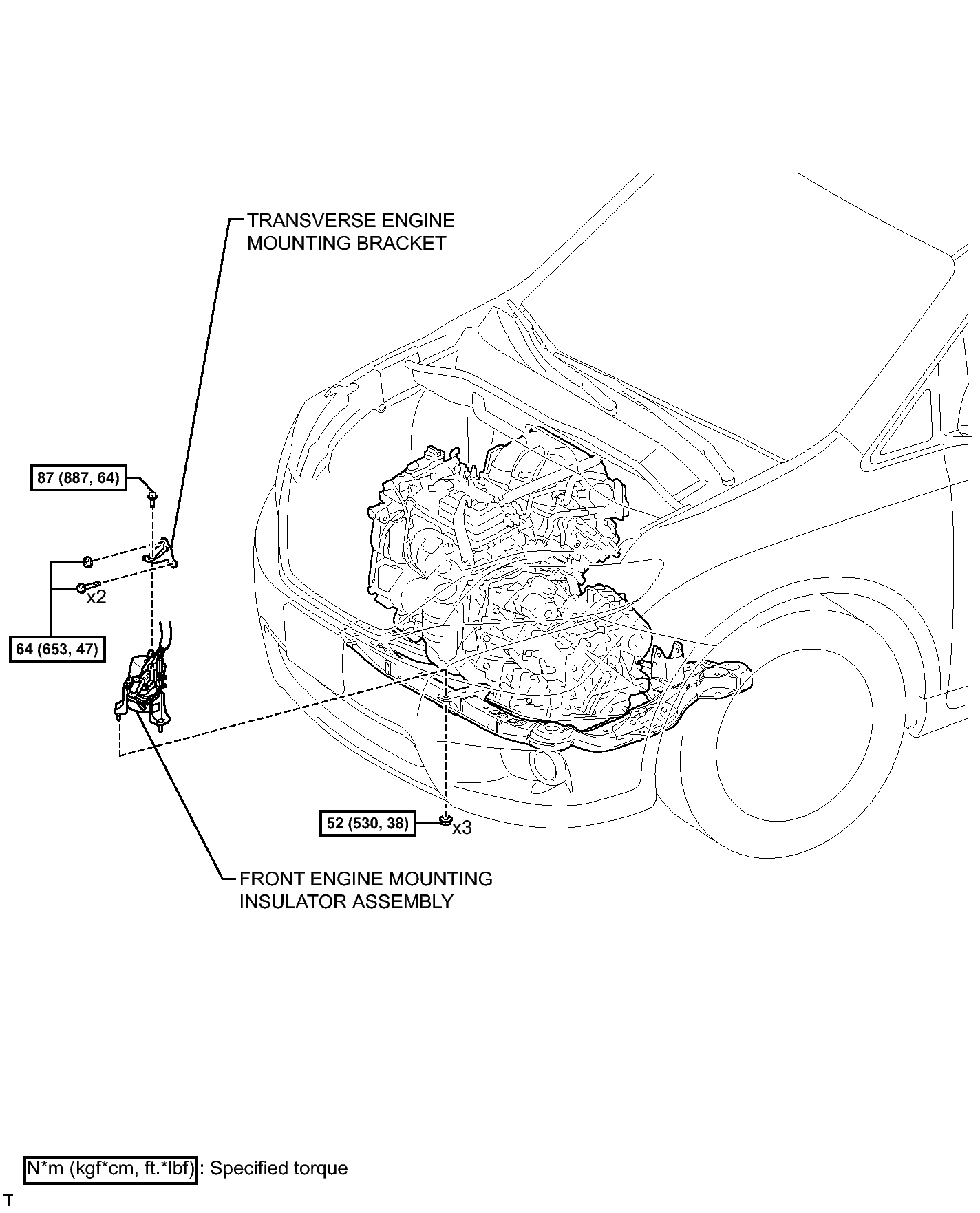

Fig 1: Identifying Active Control Engine Mount Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
