Air Fuel Ratio Sensor: Removal: Removal

REMOVE AIR CLEANER INLET COVER ASSEMBLY SEAL See step 6
REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 24
REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
1. Disengage the 3 wire harness clamps.
2. Disconnect the air fuel ratio sensor connector.

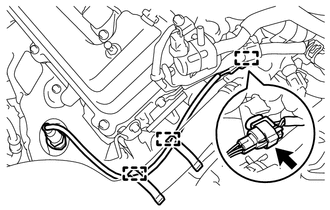

  Fig 1: Identifying Air Fuel Ratio Sensor, Connector & Clamps (For Bank 2 Sensor 1)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.

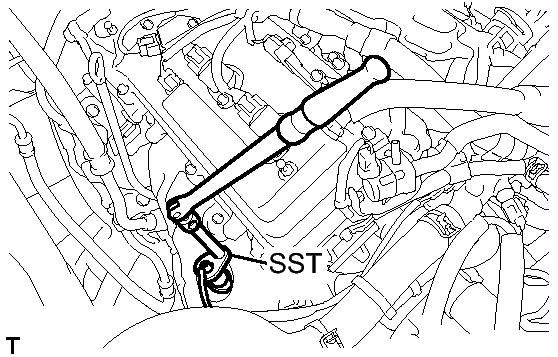

  Fig 2: Removing Air Fuel Ratio Sensor At Exhaust Manifold LH Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
REMOVE NO. 1 ENGINE UNDER COVER . Refer to REMOVAL - Step 4
REMOVE NO. 2 ENGINE UNDER COVER (for AWD) . Refer to REMOVAL - Step 5
REMOVE PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)
Refer to REMOVAL
REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET . Refer to REMOVAL - Step 5
REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2WD) . Refer to REMOVAL - Step 8
REMOVE FRONT EXHAUST PIPE ASSEMBLY (for AWD) . Refer to REMOVAL - Step 9
REMOVE MANIFOLD STAY . Refer to REMOVAL - Step 10
REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH . Refer to REMOVAL - Step 11
REMOVE EXHAUST MANIFOLD TO HEAD GASKET . Refer to REMOVAL - Step 12
REMOVE AIR FUEL RATIO SENSOR NO. 2 (for Bank 1 Sensor 1)
1. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.

  Fig 3: Removing Air Fuel Ratio Sensor At Exhaust Manifold RH Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09224-00010
