VACUUM SWITCHING VALVE (for Engine Mounting): Components: Illustration

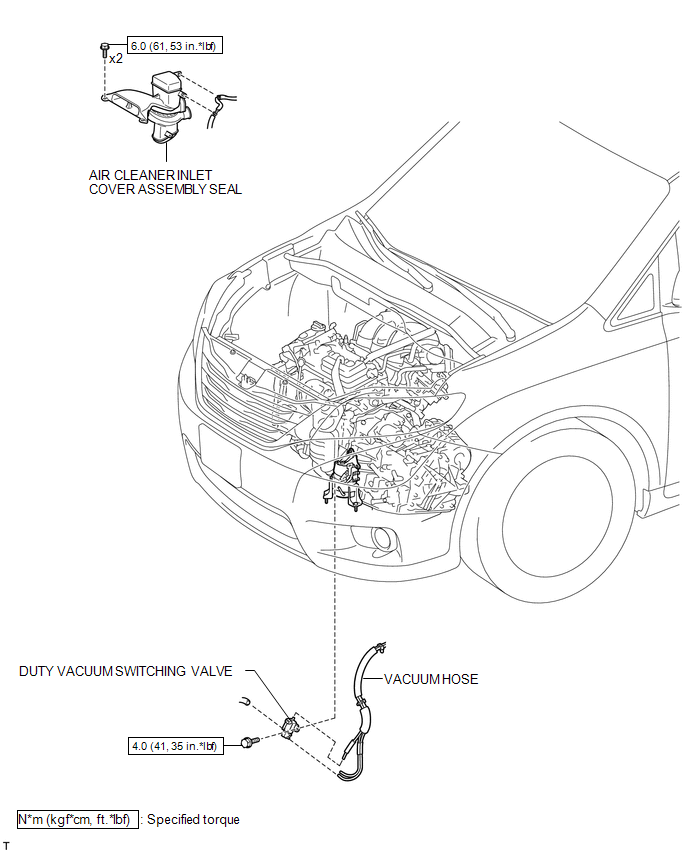

Fig 1: Identifying Vacuum Switching Valve Replacement Components With Torque Specifications (For Engine Mounting)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
