Mass Air Flow Meter: Removal: Removal

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL

  2. REMOVE FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 10
  3. REMOVE MASS AIR FLOW METER
    1. Disconnect the mass air flow meter connector.

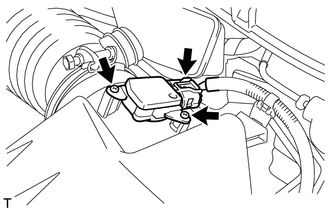

      Fig 1: Locating Mass Air Flow Meter, Connector & Fasteners
      GTY298021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and the mass air flow meter.
