OEM System Circuits: AWD: Notes

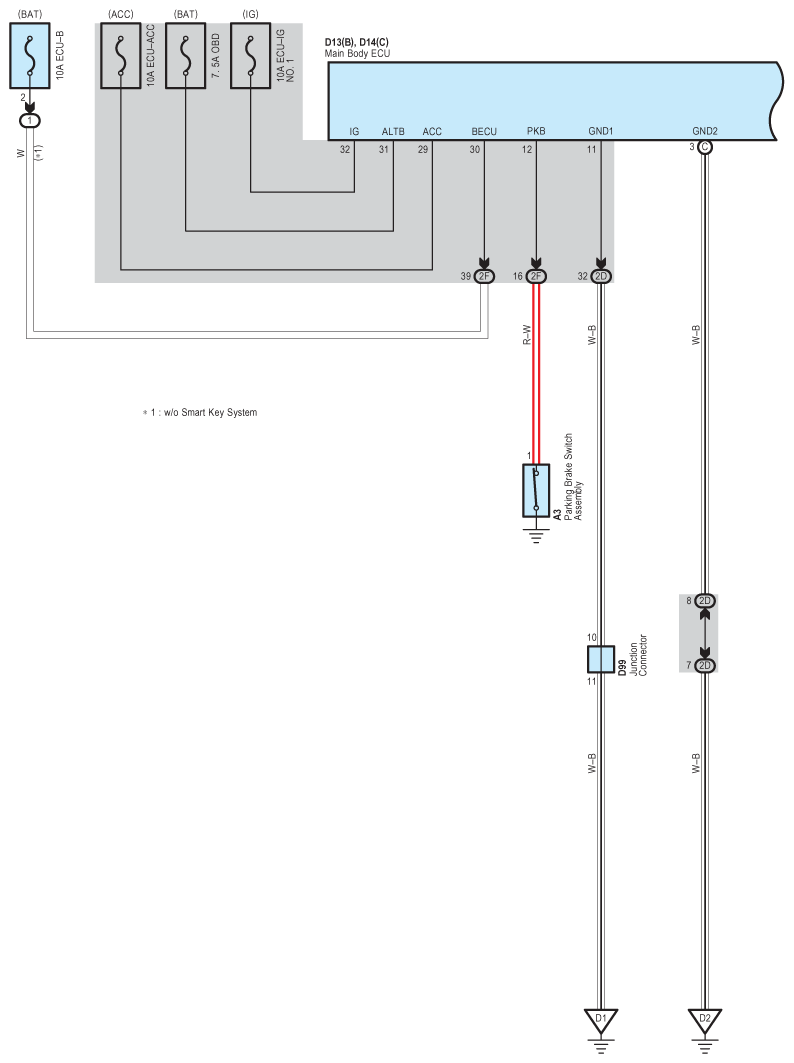

Fig 1: AWD System Wiring Diagram (1 Of 5)

G09111616

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

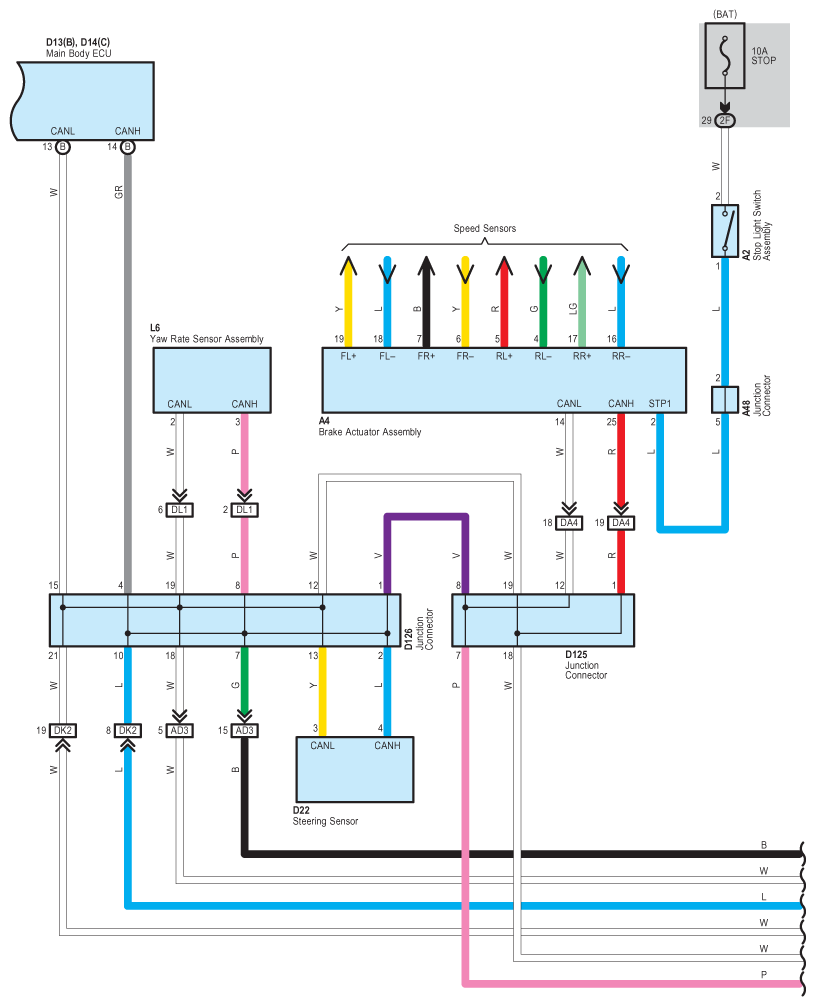

Fig 2: AWD System Wiring Diagram (2 Of 5)

G09111617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

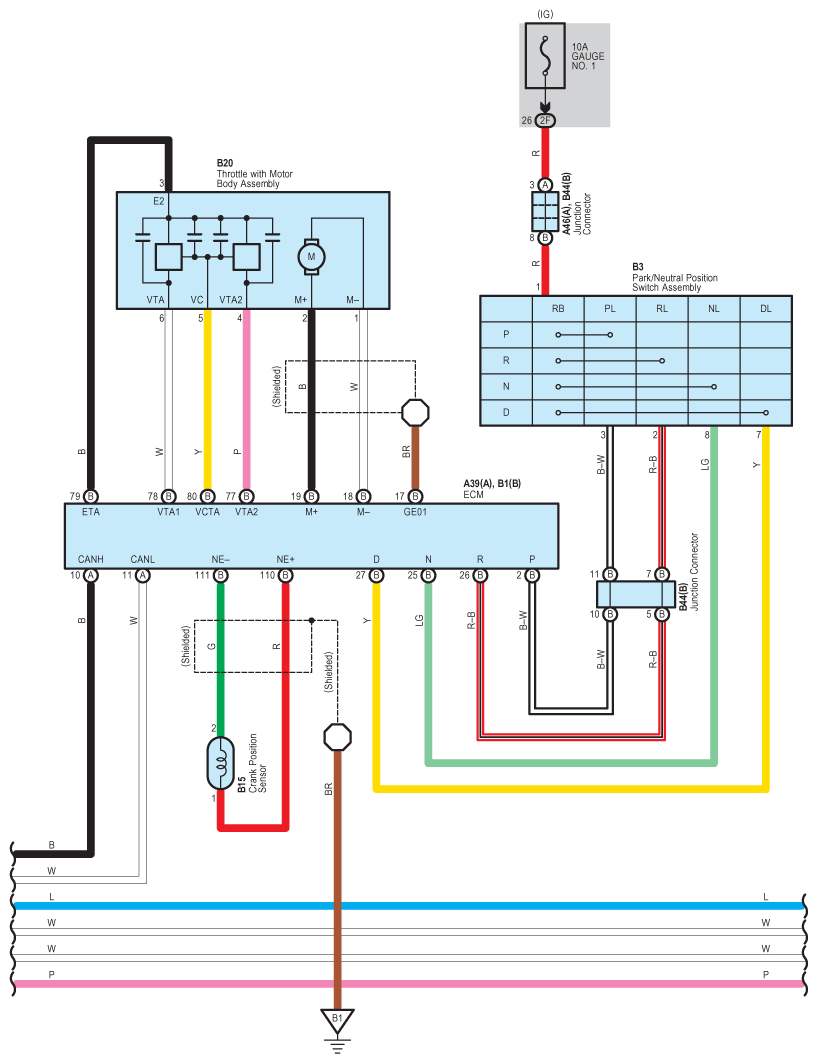

Fig 3: AWD System Wiring Diagram (3 Of 5)

G09111618

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

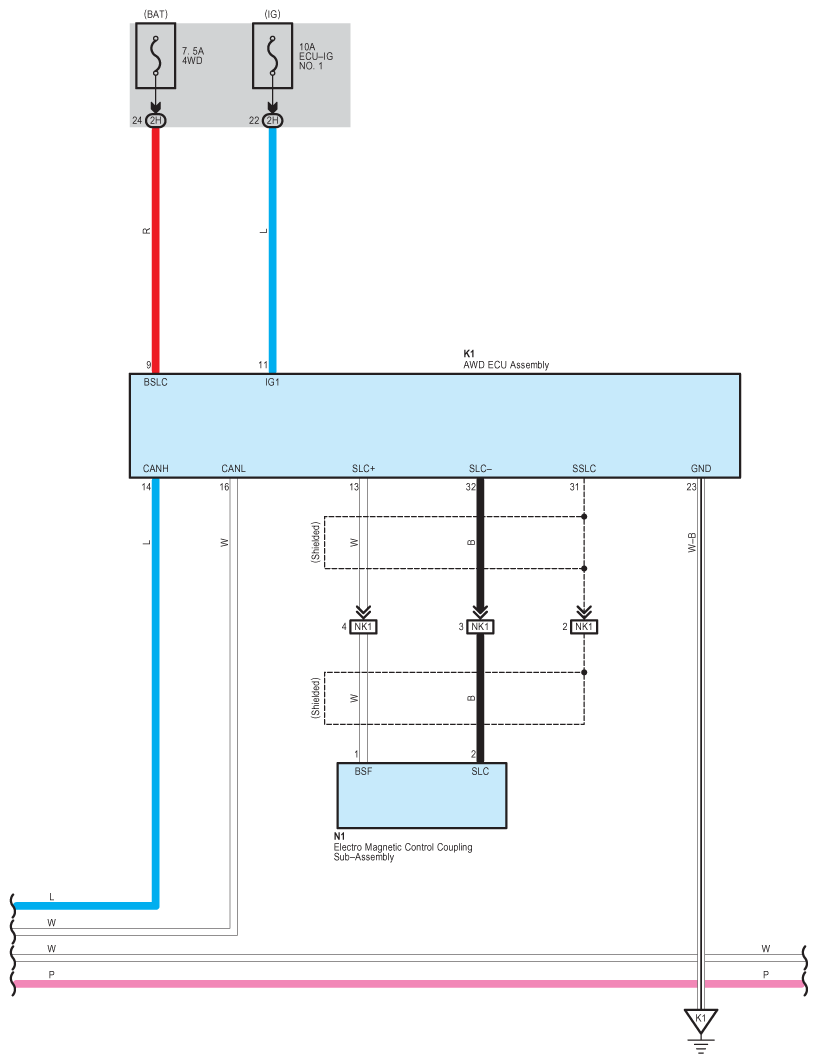

Fig 4: AWD System Wiring Diagram (4 Of 5)

G09111619

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

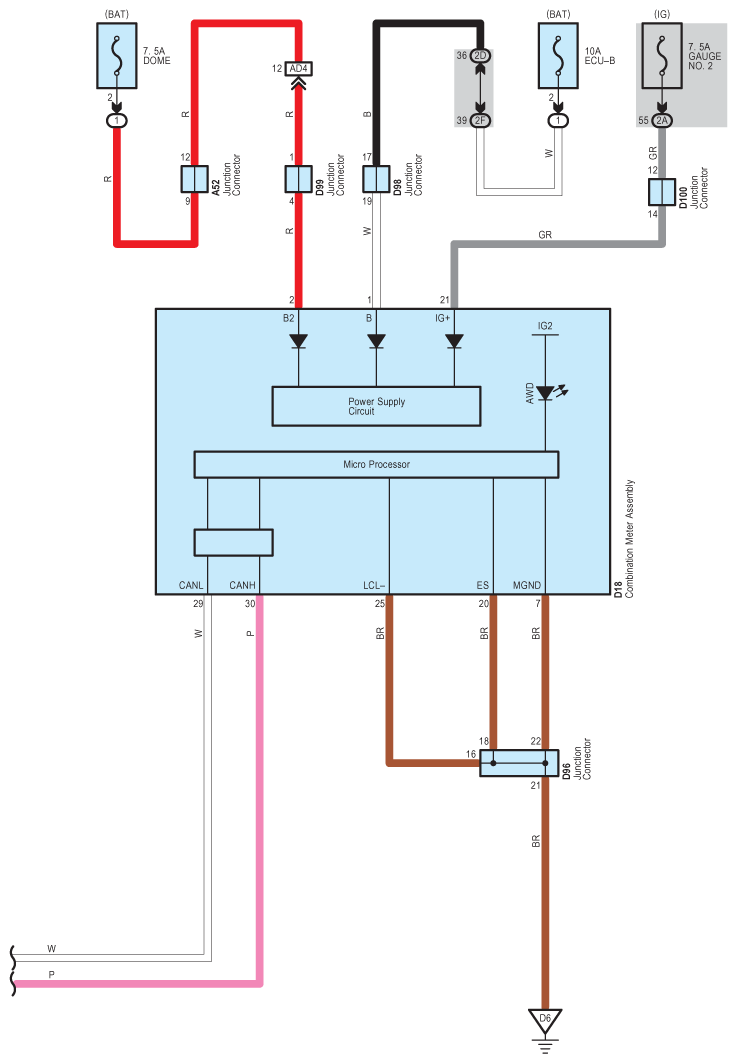

Fig 5: AWD System Wiring Diagram (5 Of 5)

G09111620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
