Engine Immobilizer System (w/o Smart Key System): Notes

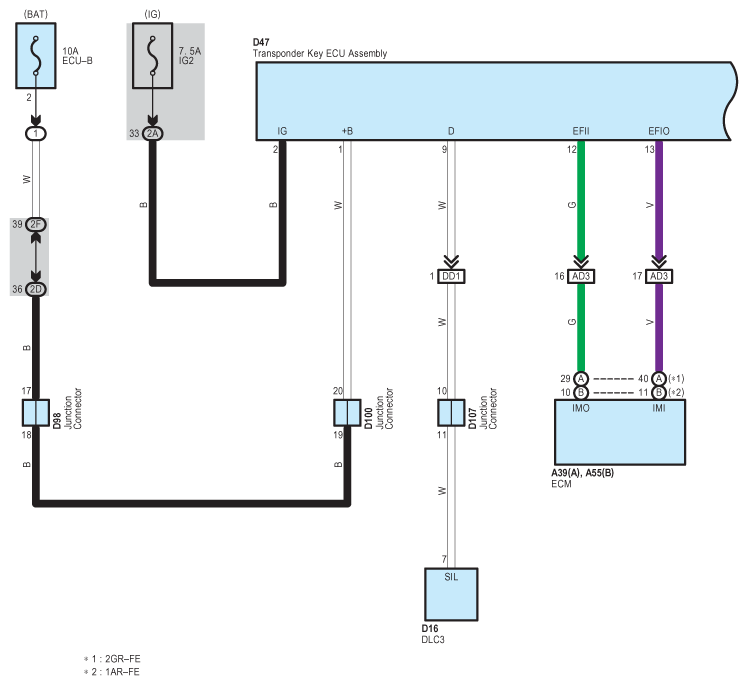

Fig 1: Engine Immobilizer System (W/O Smart Key System) System Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

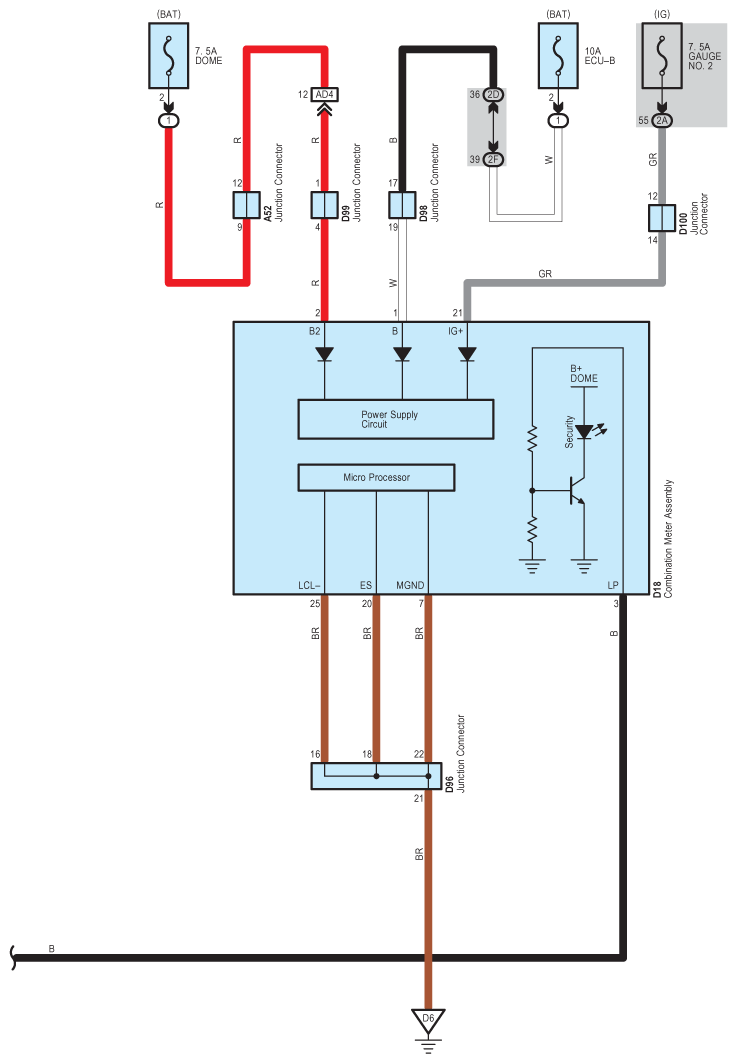

Fig 2: Engine Immobilizer System (W/O Smart Key System) System Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

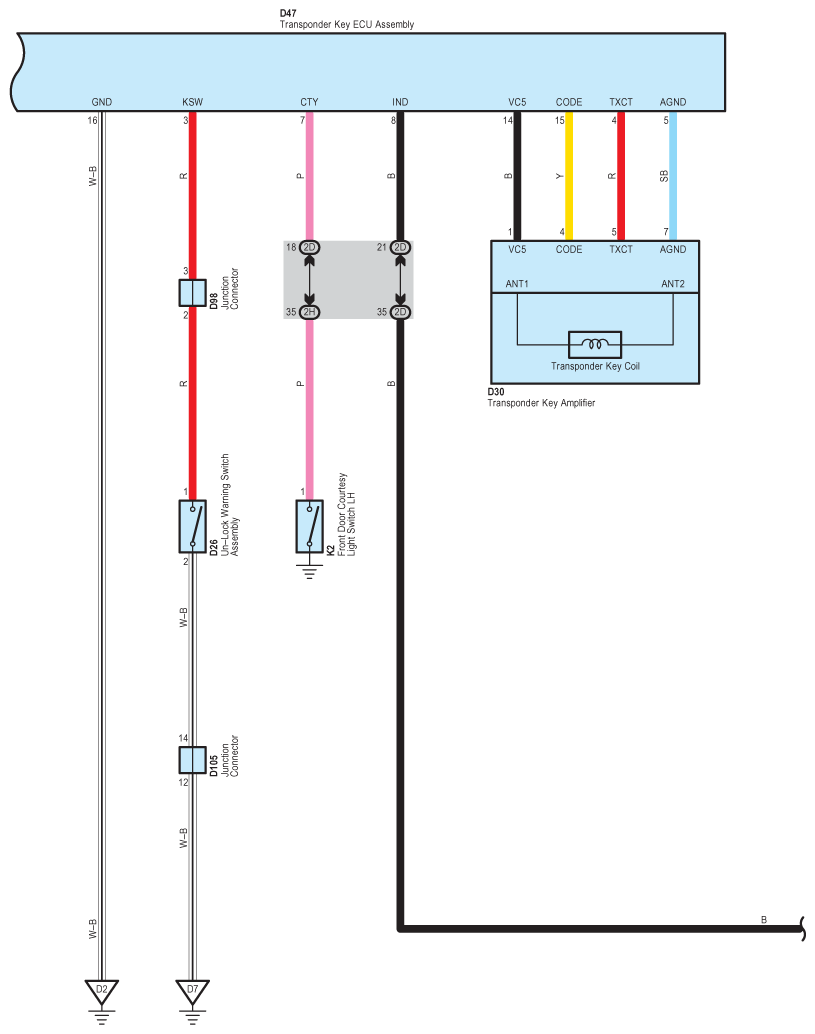

Fig 3: Engine Immobilizer System (W/O Smart Key System) System Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
