Sienna XLE, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Ignition (1AR-FE)
›
Notes
Ignition (1AR-FE): Notes

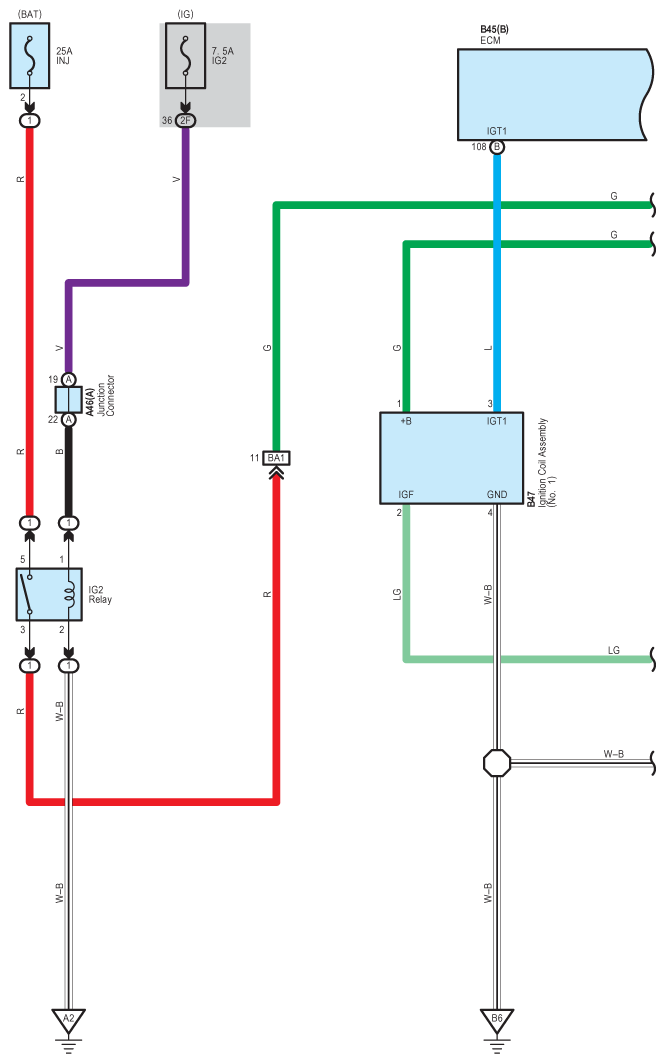

Fig 1: Ignition (1AR-FE) System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

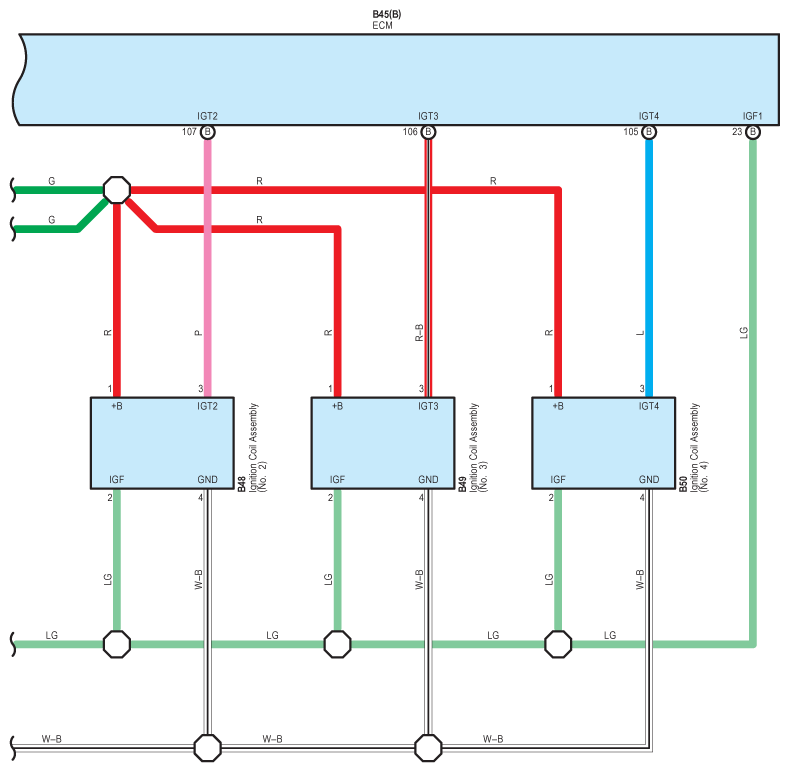

Fig 2: Ignition (1AR-FE) System Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
