Crankshaft Position Sensor: Removal: Removal

  1. REMOVE W/PULLEY COMPRESSOR ASSEMBLY

    Refer to REMOVAL

  2. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

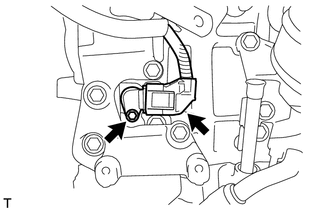

      Fig 1: Locating Crankshaft Position Sensor, Connector & Fastener
      GTY298011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and the crankshaft position sensor.
