Engine Immobilizer System (2TR-FE): Notes

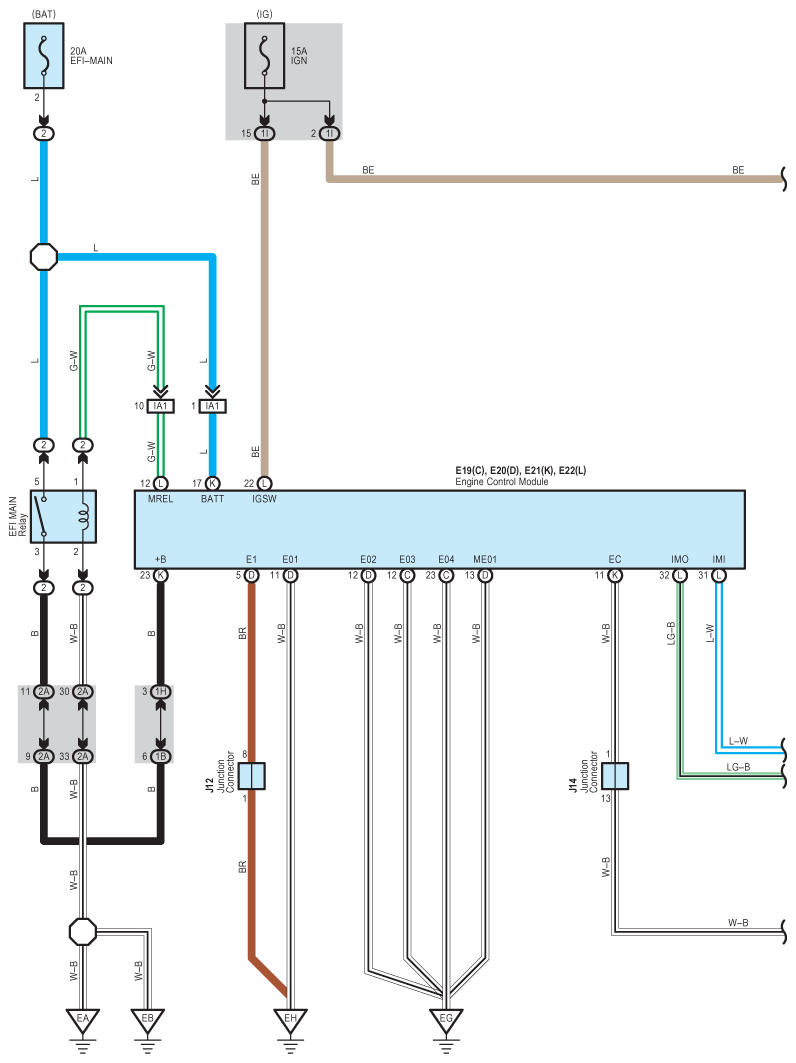

Fig 1: Engine Immobilizer (2TR-FE) System Wiring Diagram (1 Of 2)
G09107279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

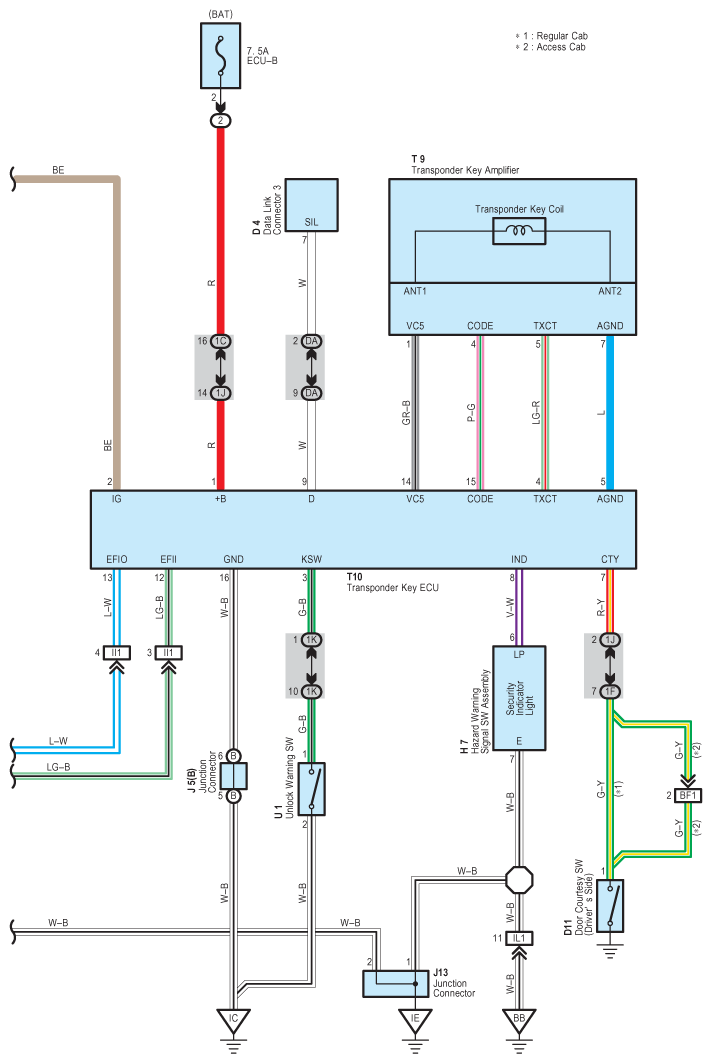

Fig 2: Engine Immobilizer (2TR-FE) System Wiring Diagram (2 Of 2)
G09107280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
