Cruise Control (1GR-FE): Notes

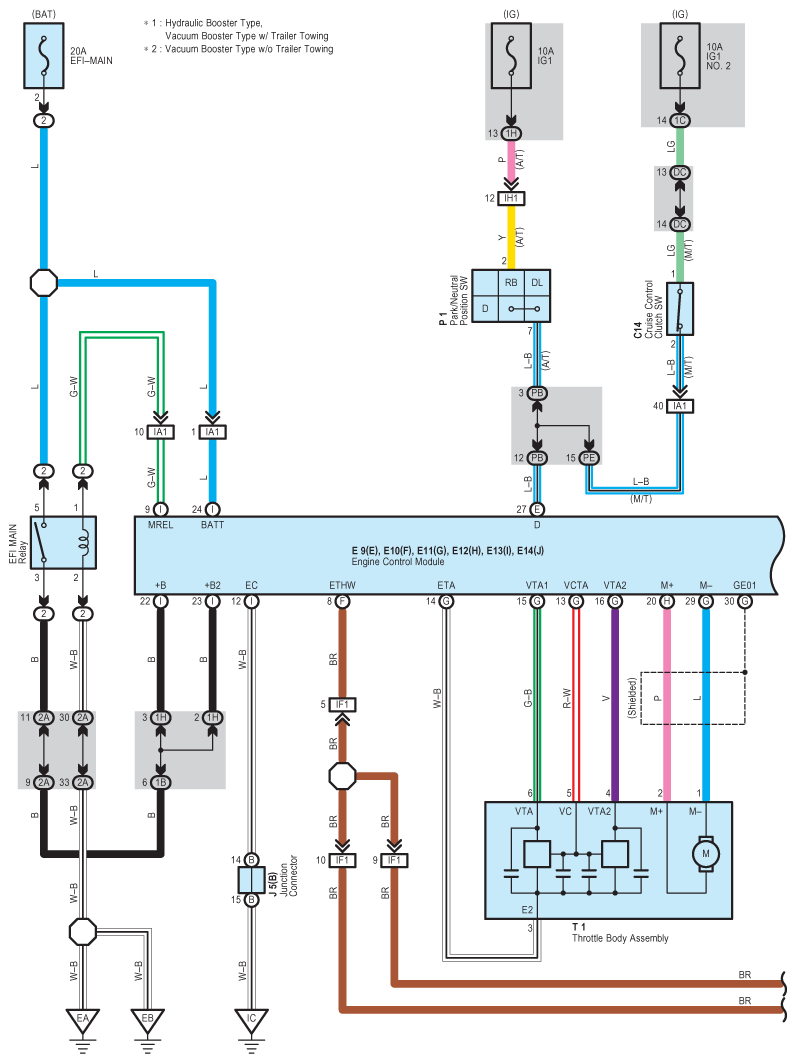

Fig 1: Cruise Control (1GR-FE) System Wiring Diagram (1 Of 5)
G09107316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

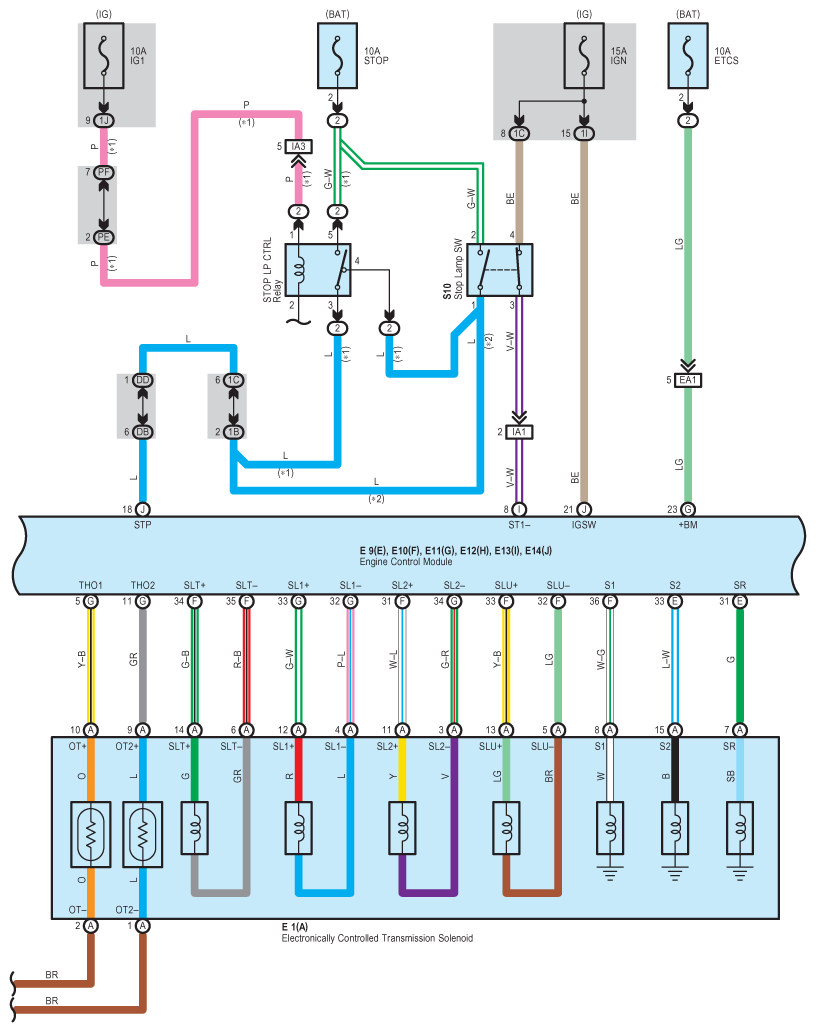

Fig 2: Cruise Control (1GR-FE) System Wiring Diagram (2 Of 5)
G09107317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

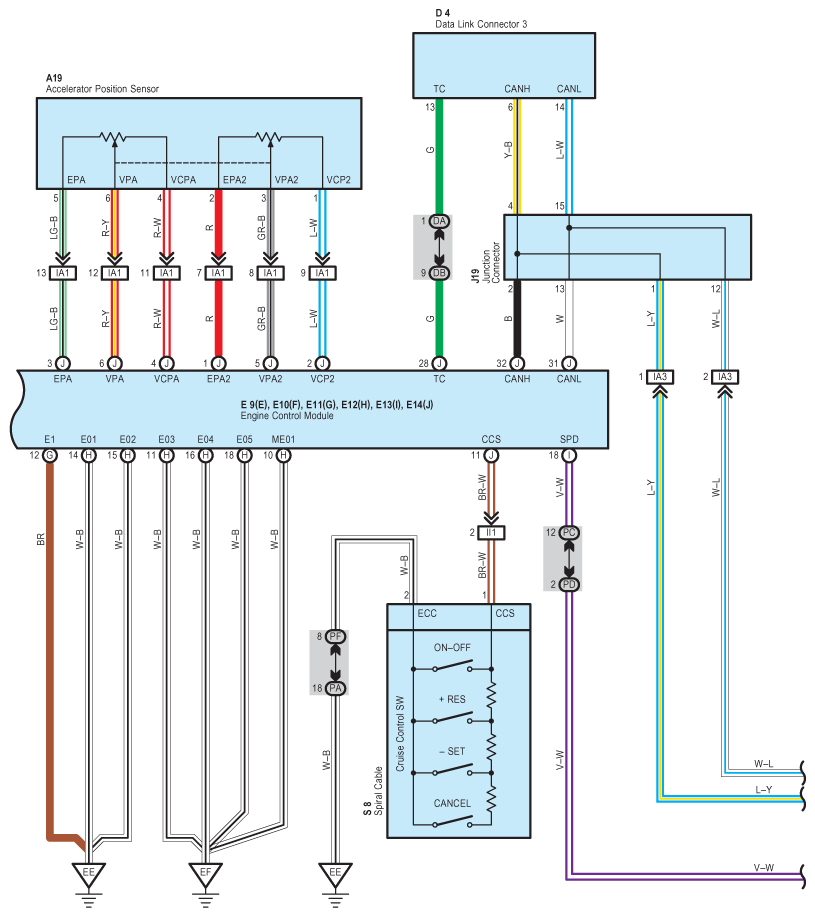

Fig 3: Cruise Control (1GR-FE) System Wiring Diagram (3 Of 5)
G09107318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

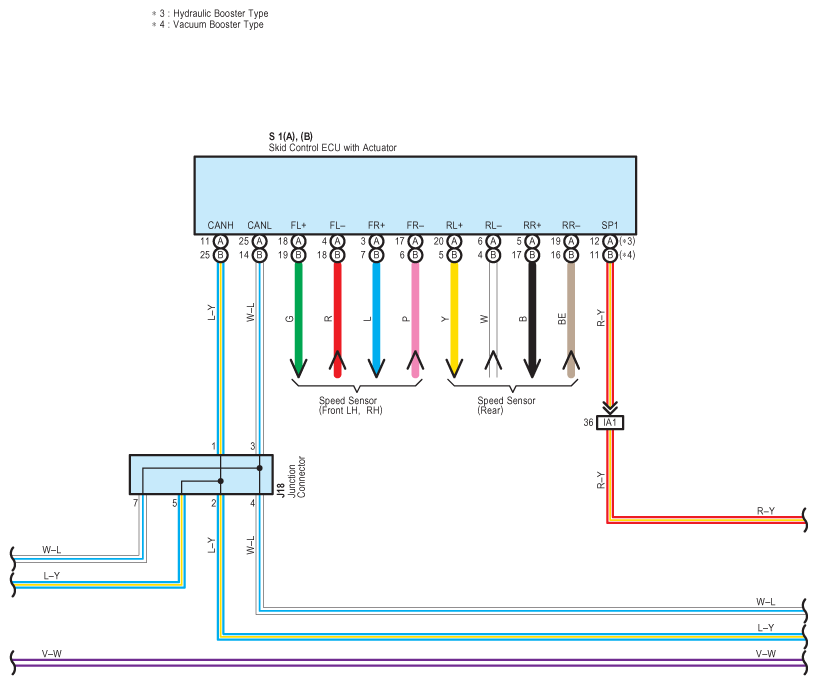

Fig 4: Cruise Control (1GR-FE) System Wiring Diagram (4 Of 5)
G09107319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

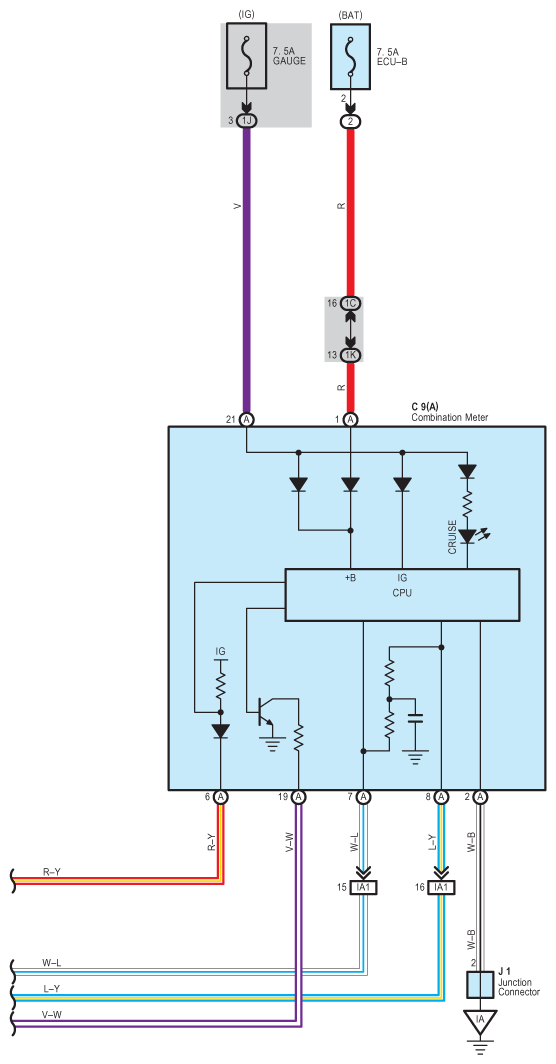

Fig 5: Cruise Control (1GR-FE) System Wiring Diagram (5 Of 5)
G09107320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
