Engine Control (2TR-FE): Notes

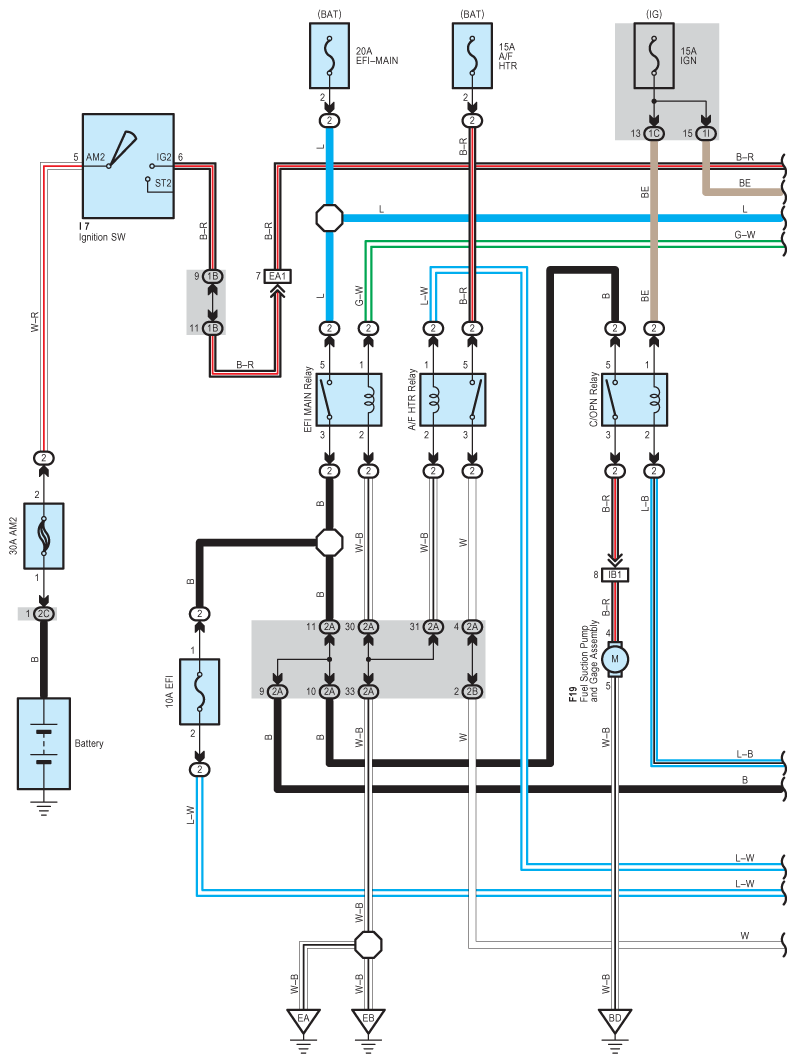

Fig 1: Engine Control (2TR-FE) System Wiring Diagram (1 Of 9)
G09107268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

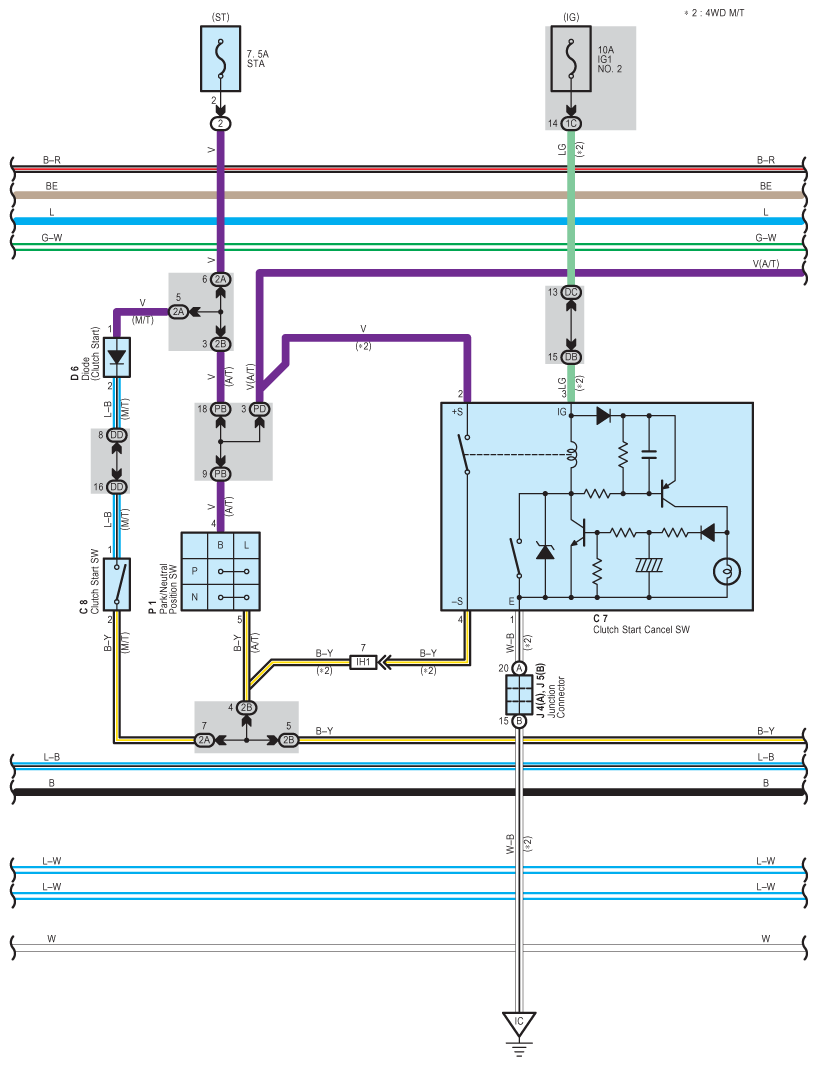

Fig 2: Engine Control (2TR-FE) System Wiring Diagram (2 Of 9)
G09107269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

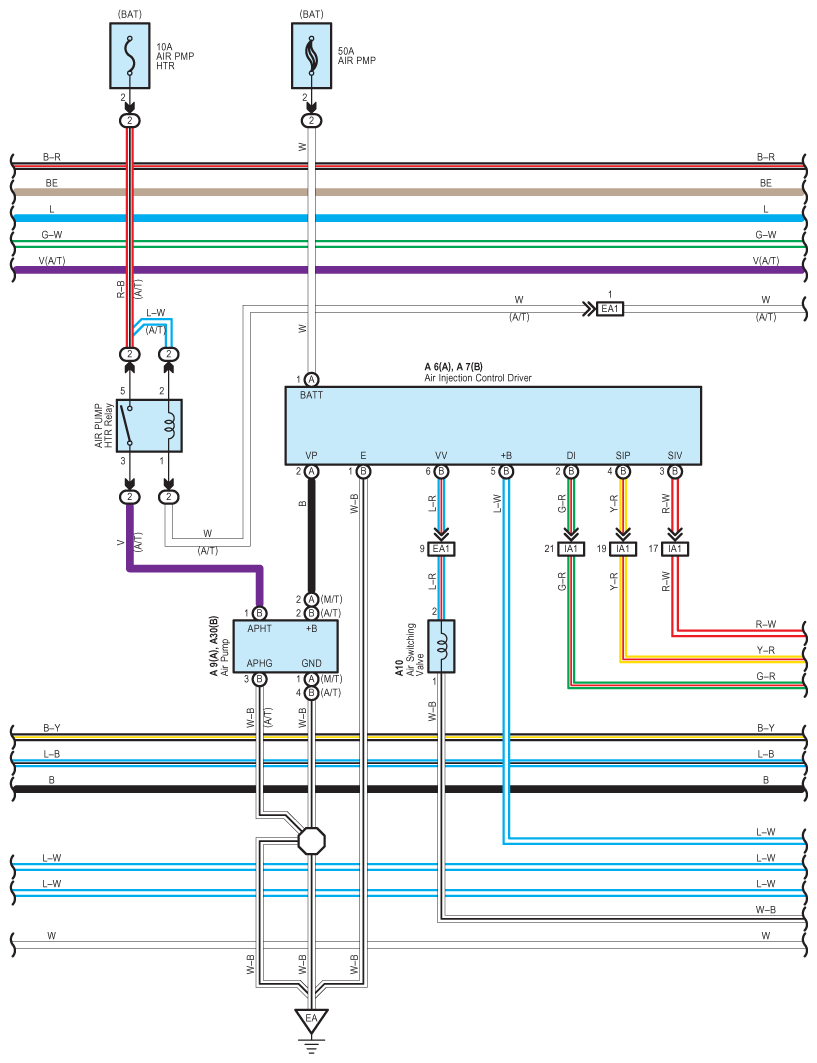

Fig 3: Engine Control (2TR-FE) System Wiring Diagram (3 Of 9)
G09107270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

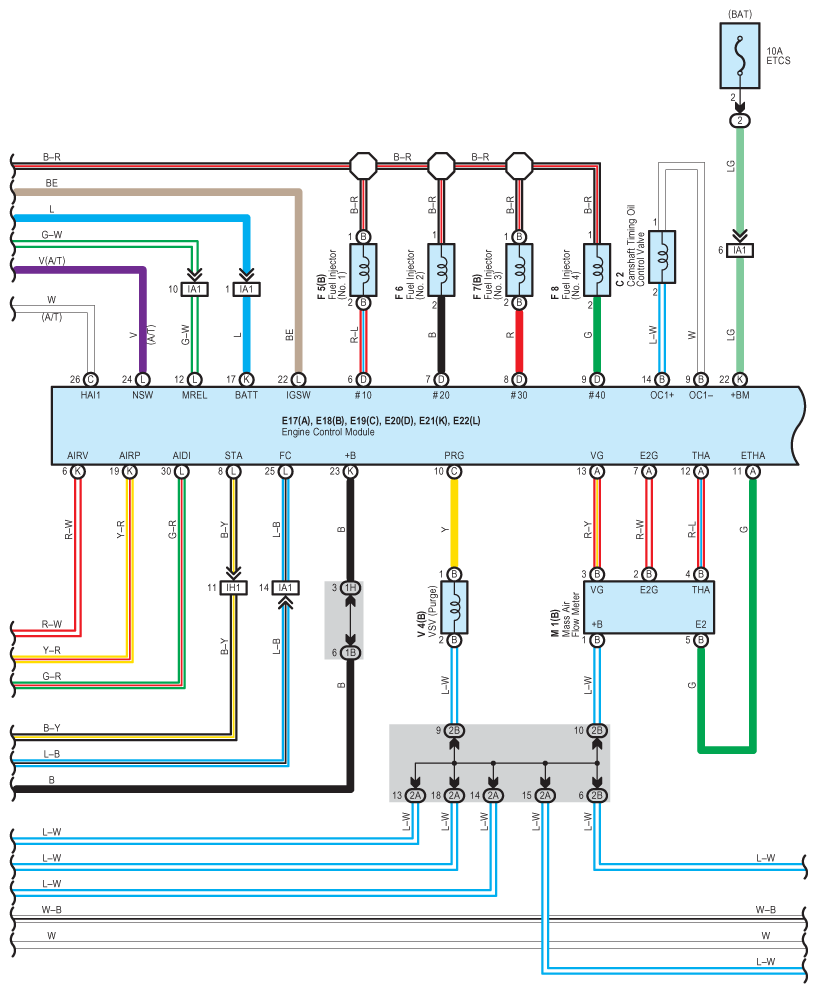

Fig 4: Engine Control (2TR-FE) System Wiring Diagram (4 Of 9)
G09107271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

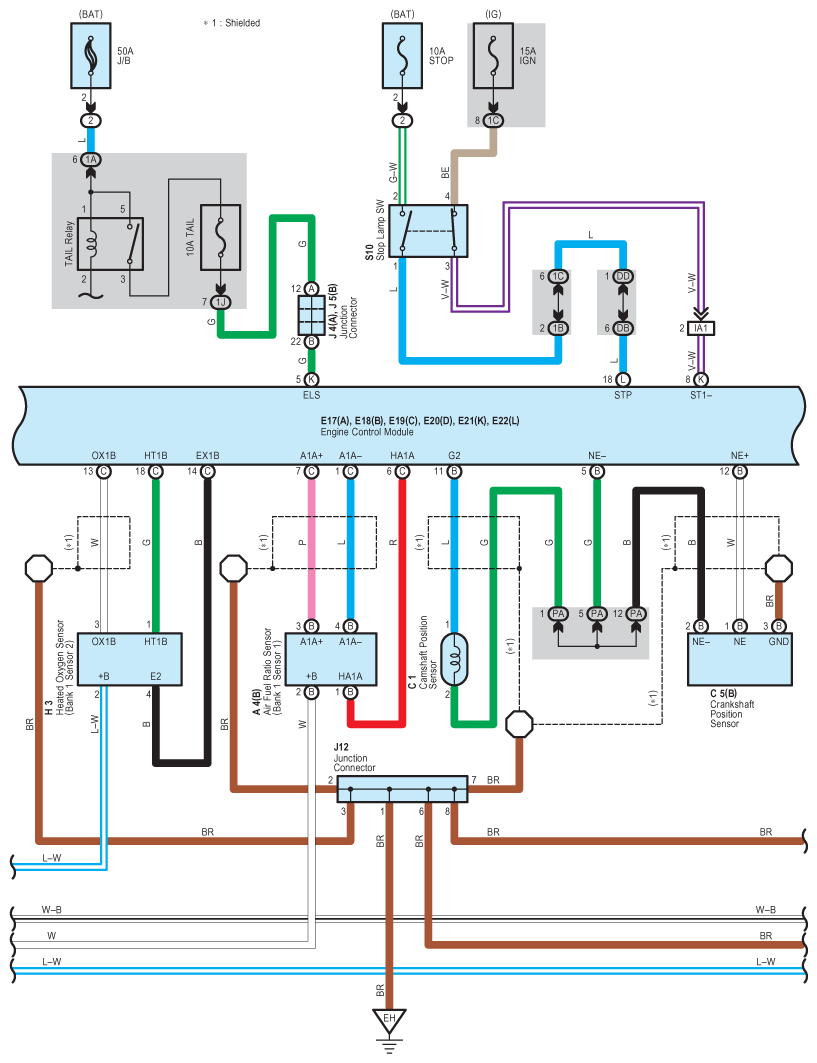

Fig 5: Engine Control (2TR-FE) System Wiring Diagram (5 Of 9)
G09107272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

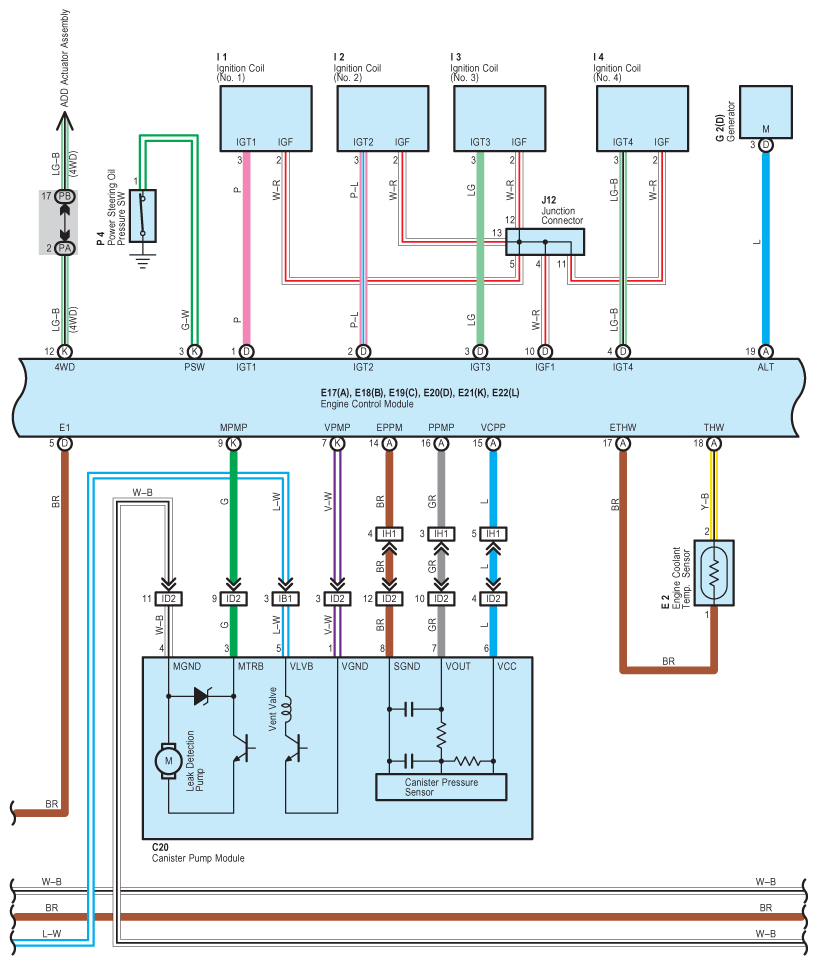

Fig 6: Engine Control (2TR-FE) System Wiring Diagram (6 Of 9)
G09107273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

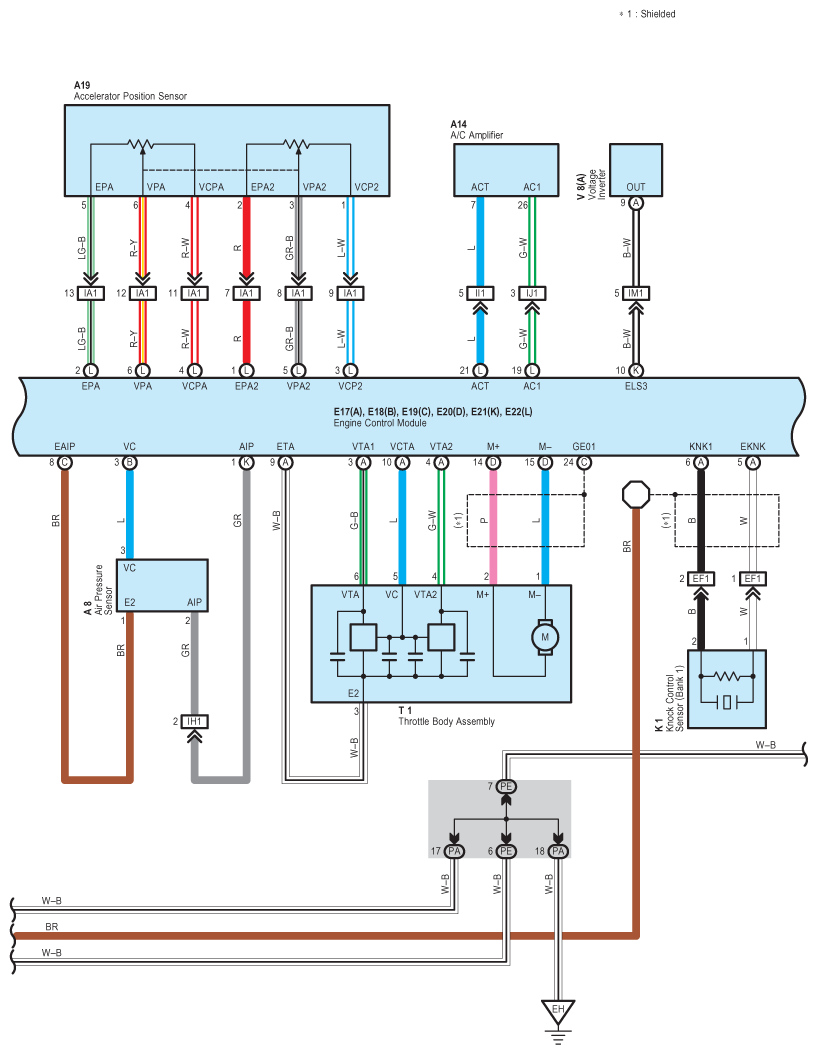

Fig 7: Engine Control (2TR-FE) System Wiring Diagram (7 Of 9)
G09107274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

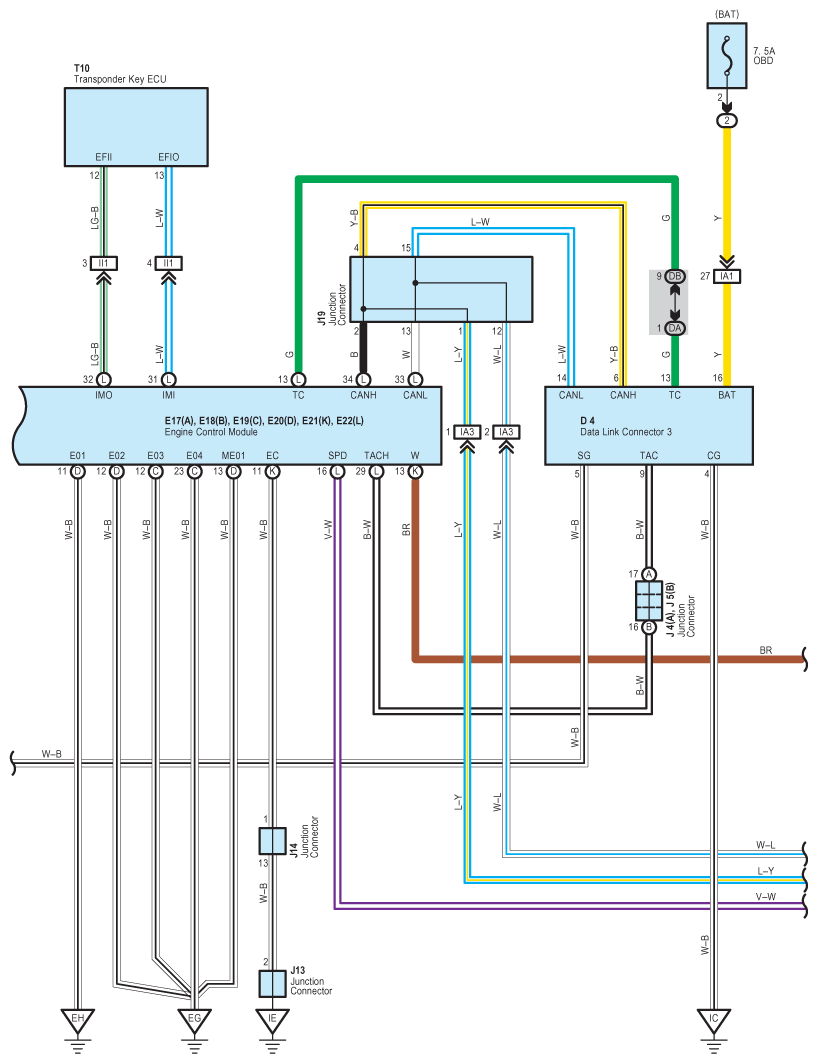

Fig 8: Engine Control (2TR-FE) System Wiring Diagram (8 Of 9)
G09107275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

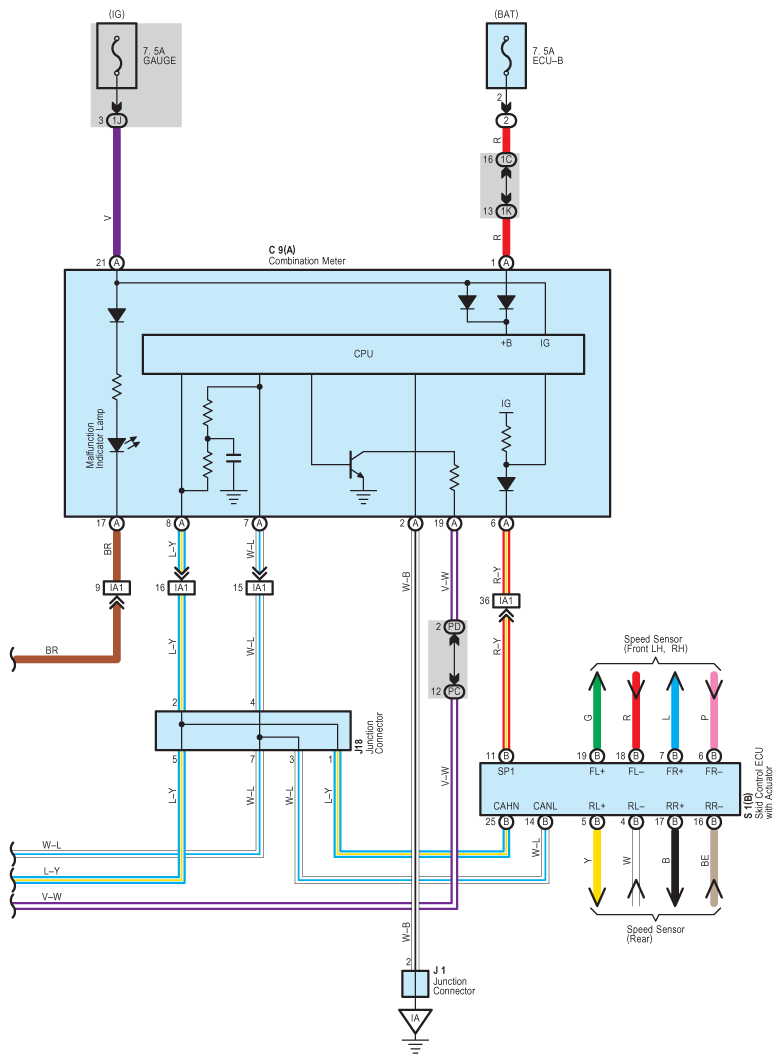

Fig 9: Engine Control (2TR-FE) System Wiring Diagram (9 Of 9)
G09107276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
