Engine Immobilizer System (1GR-FE): Notes

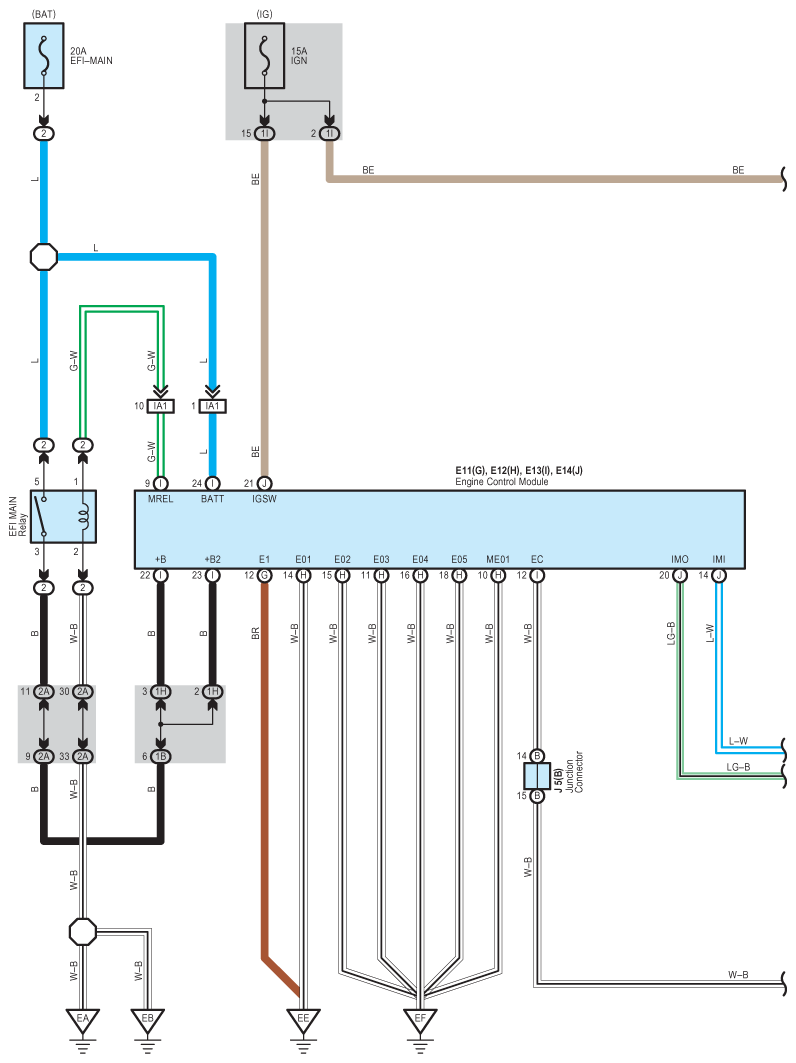

Fig 1: Engine Immobilizer (1GR-FE) System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

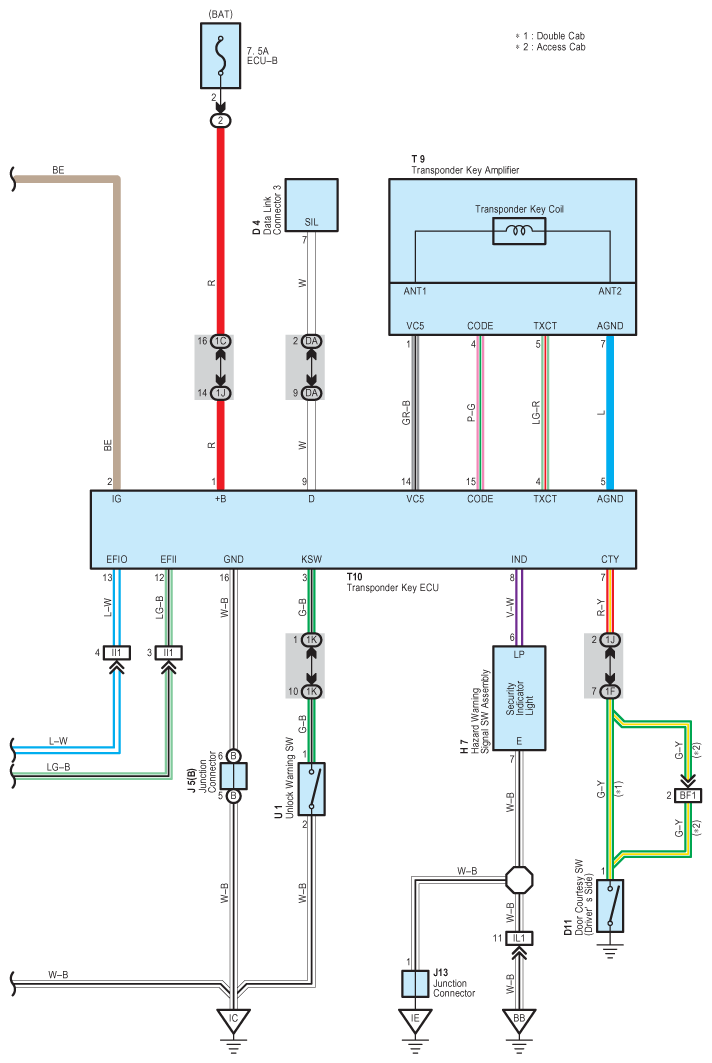

Fig 2: Engine Immobilizer (1GR-FE) System Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
