Rear Differential Lock (2WD): Notes

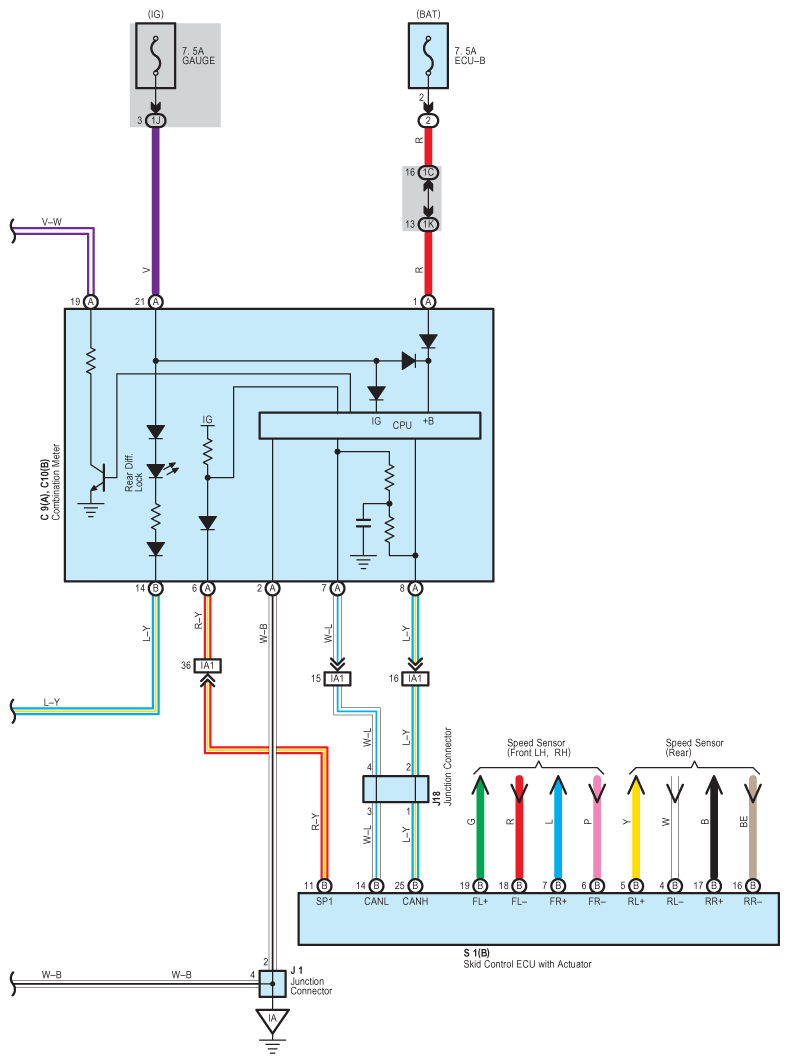

Fig 1: Rear Differential Lock (2WD) System Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

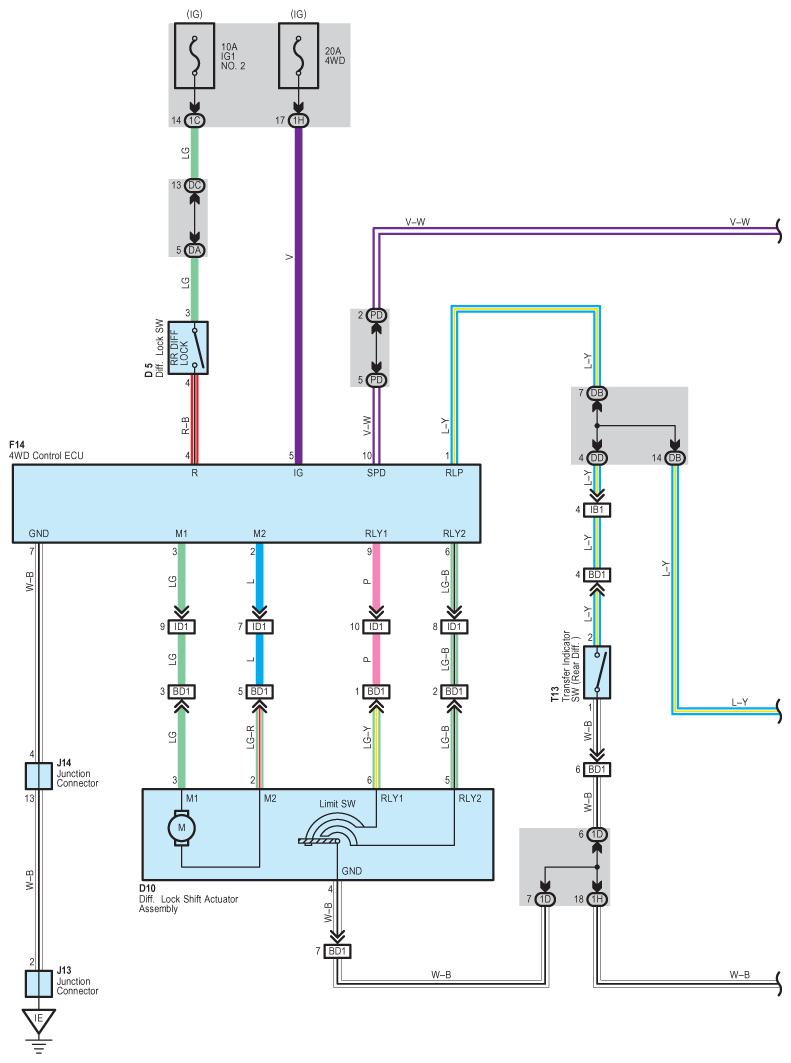

Fig 2: Rear Differential Lock (2WD) System Wiring Diagram (2 Of 2)
