System Diagram

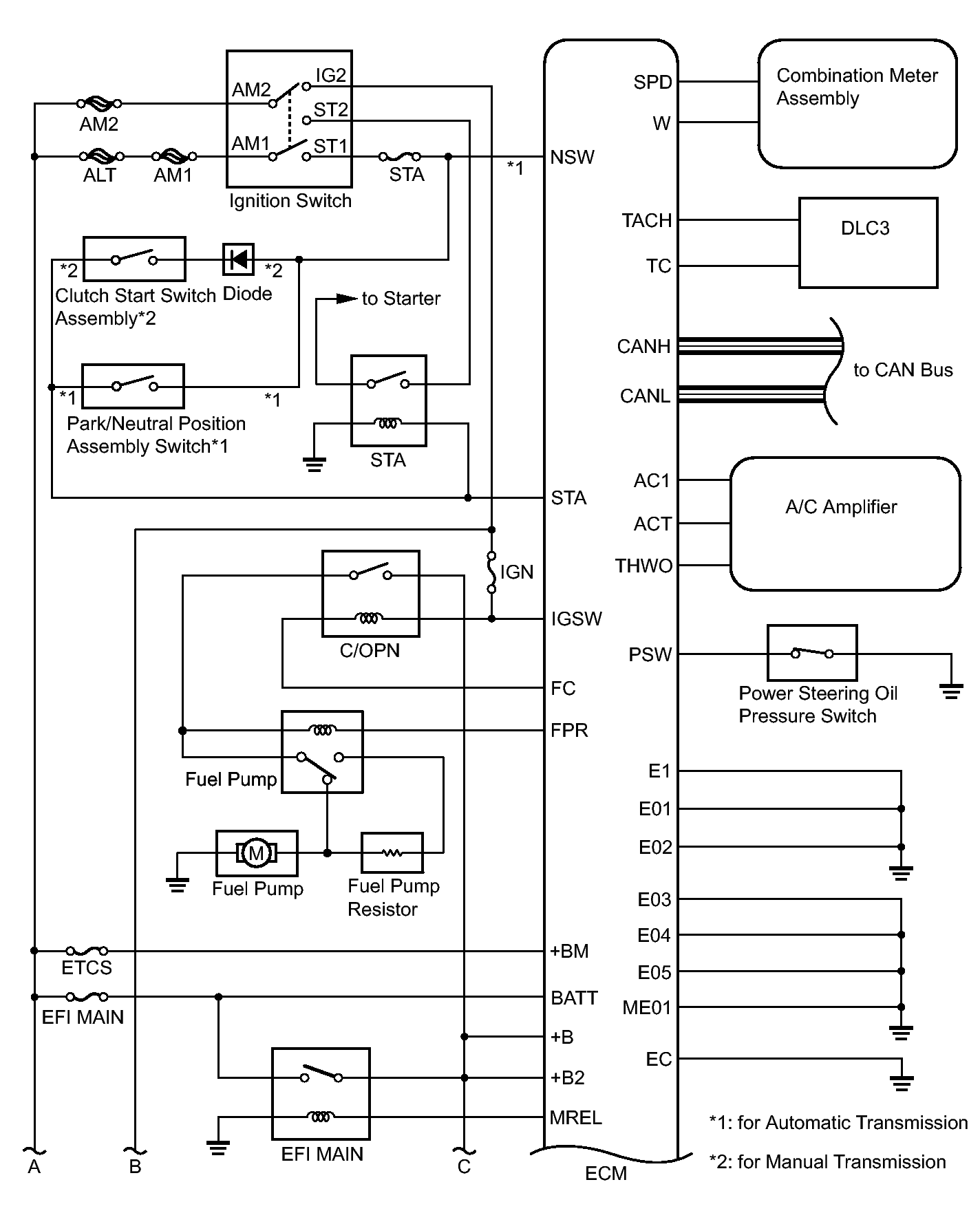

Fig 1: Identifying SFI System Wiring Diagram (1 Of 5)
GTY362404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

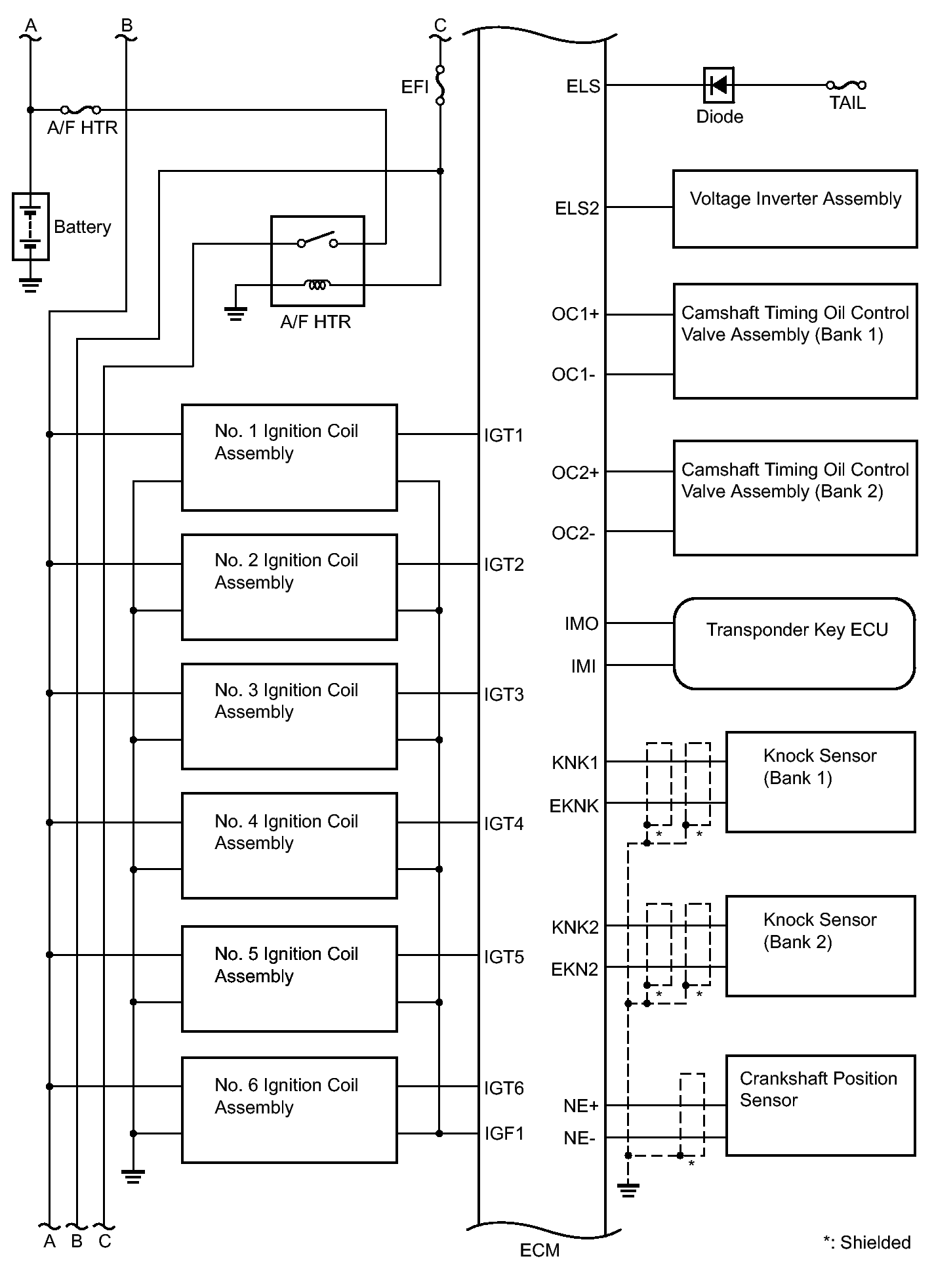

Fig 2: Identifying SFI System Wiring Diagram (2 Of 5)
GTY369340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

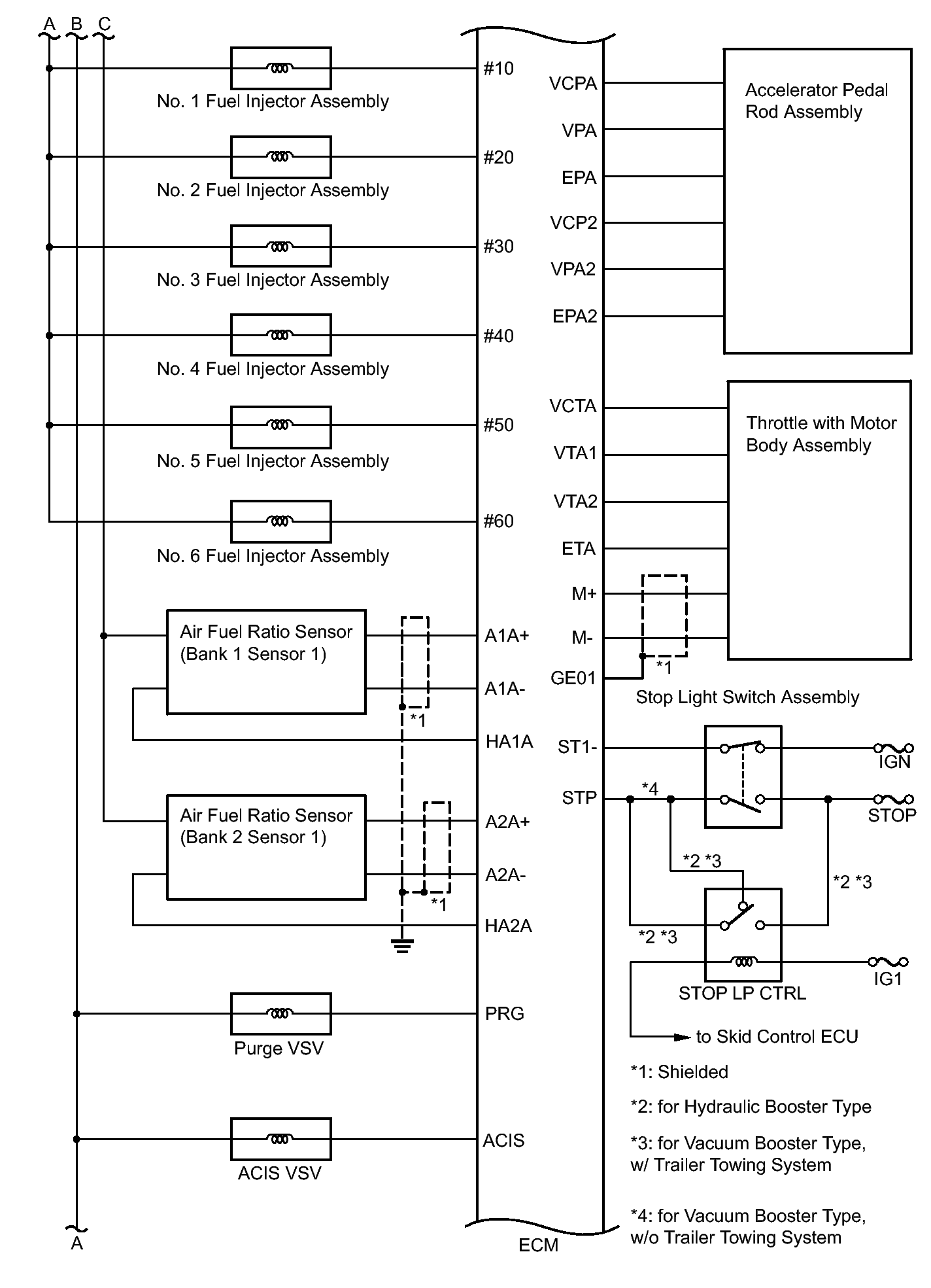

Fig 3: Identifying SFI System Wiring Diagram (3 Of 5)
GTY380505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

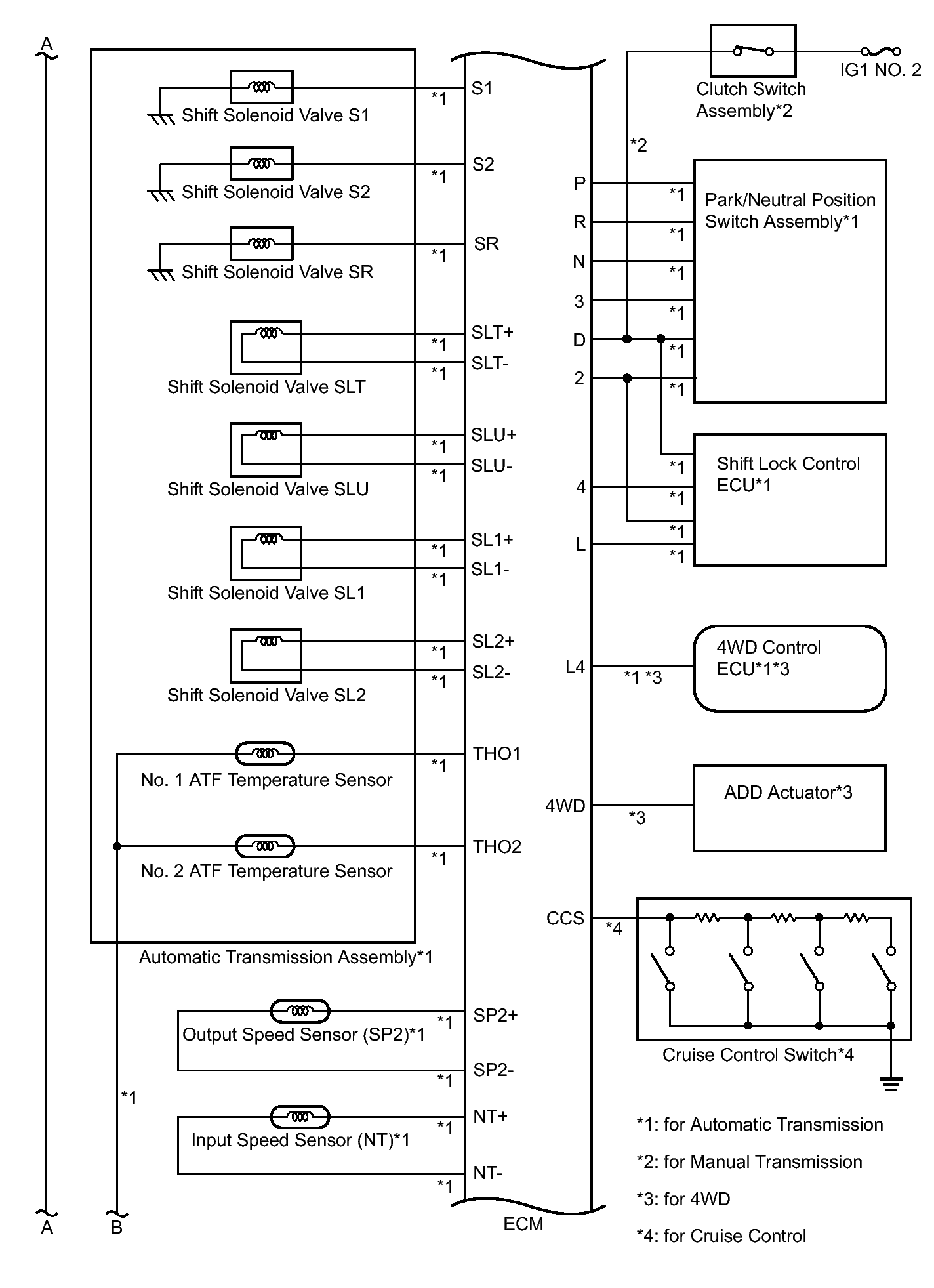

Fig 4: Identifying SFI System Wiring Diagram (4 Of 5)
GTY335517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

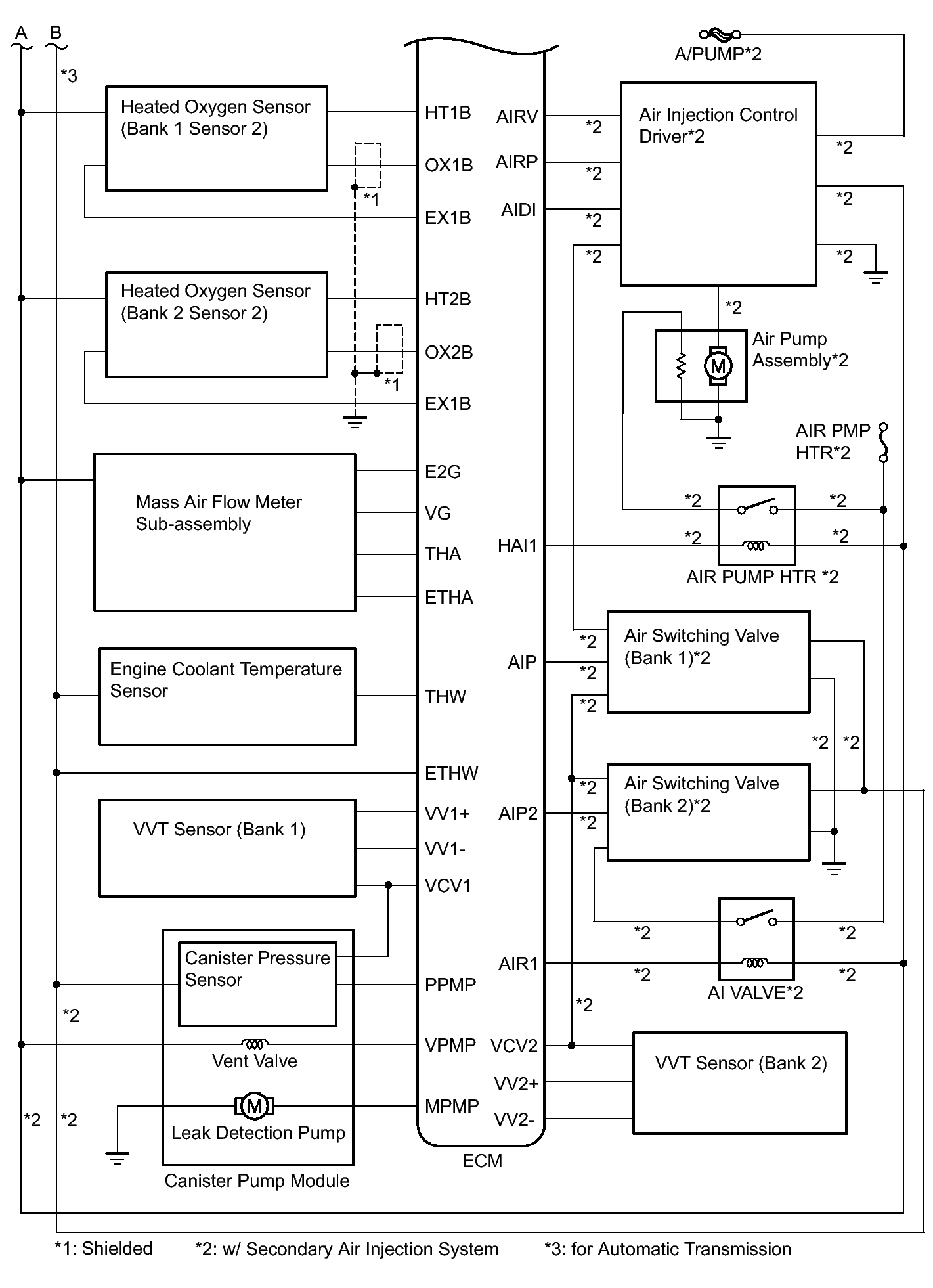

Fig 5: Identifying SFI System Wiring Diagram (5 Of 5)
GTY366180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
