Key Reminder (w/o Smart Key System): Notes

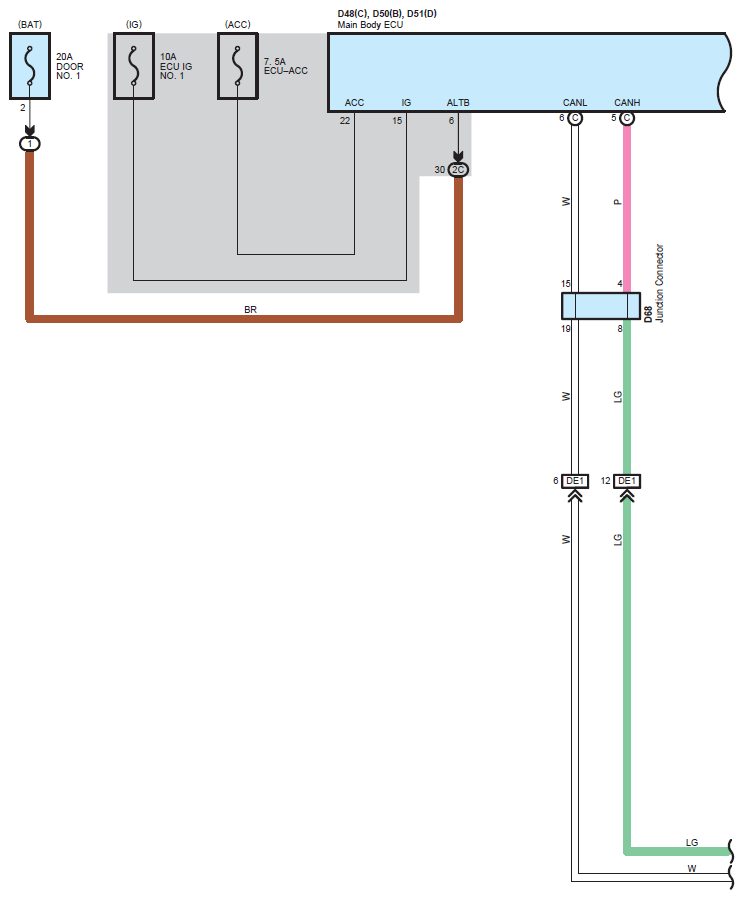

Fig 1: Key Reminder System Wiring Diagram (W/O Smart Key System, 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

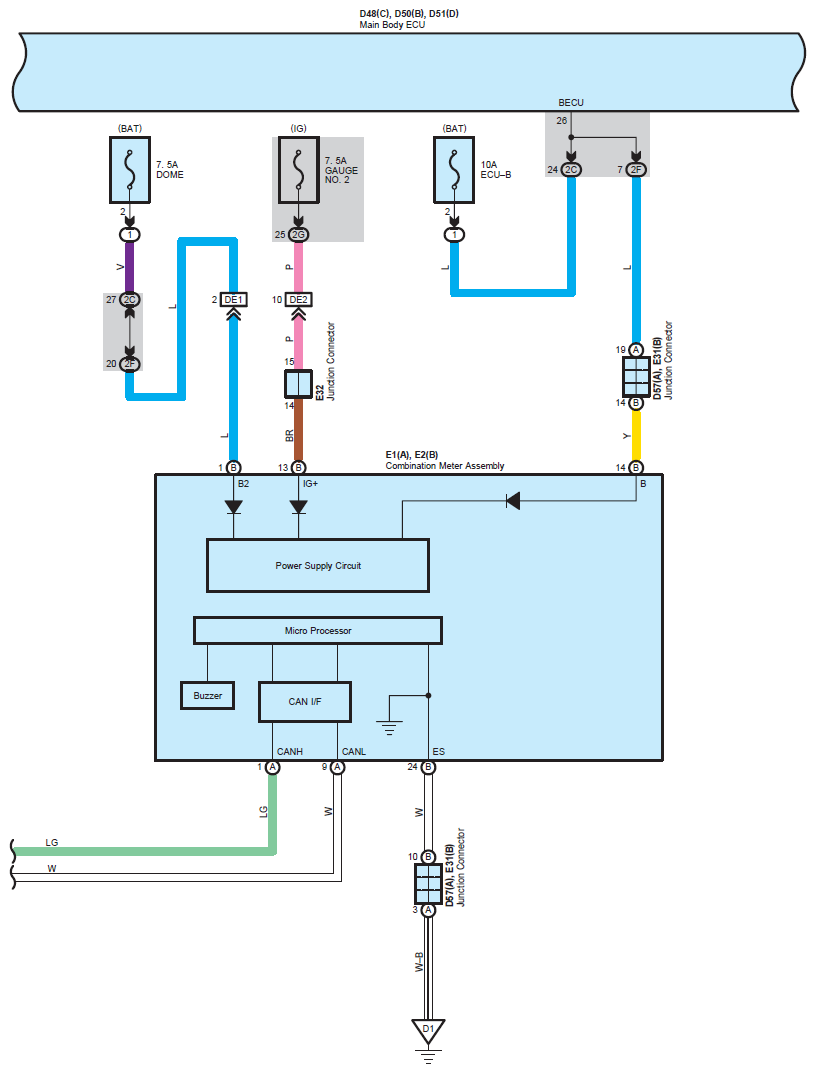

Fig 2: Key Reminder System Wiring Diagram (W/O Smart Key System, 2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

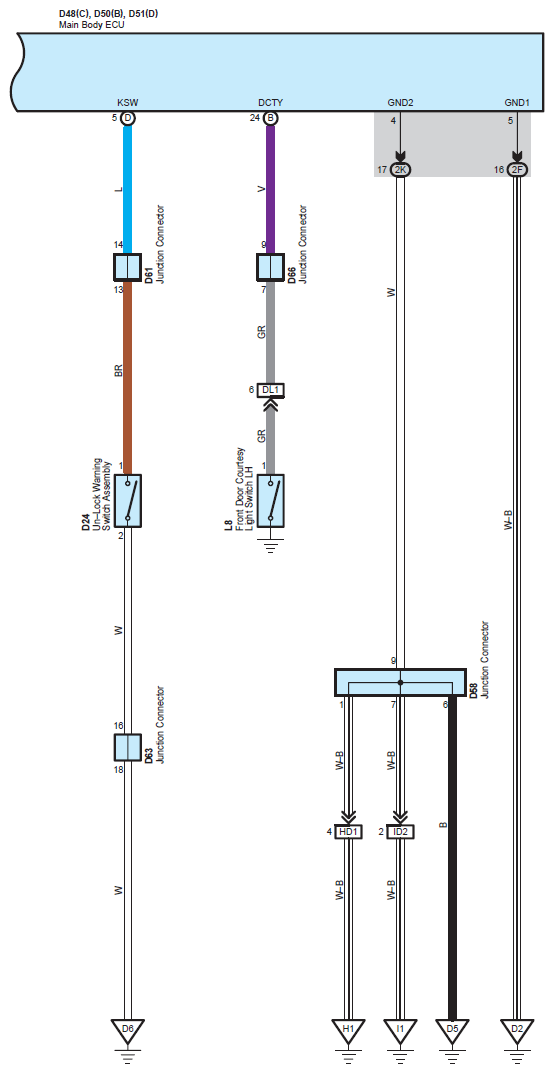

Fig 3: Key Reminder System Wiring Diagram (W/O Smart Key System, 3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
