Starting (w/o Smart Key System)
›
Notes
Starting (w/o Smart Key System): Notes

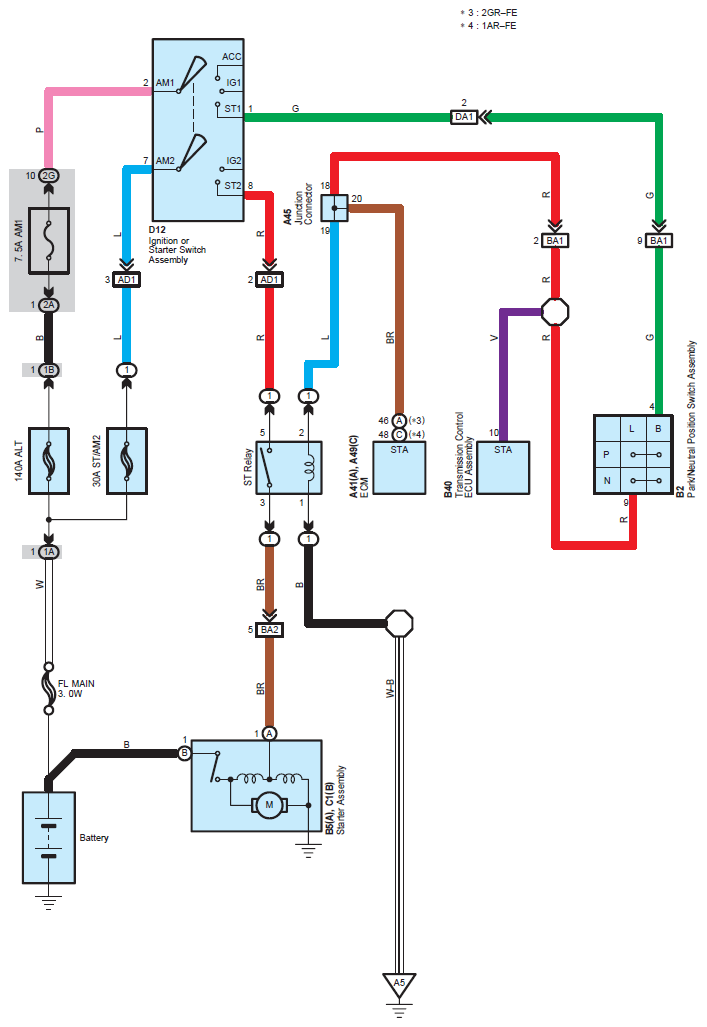

Fig 1: Starting System Wiring Diagram (W/O Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
