Horn (S/D): Notes

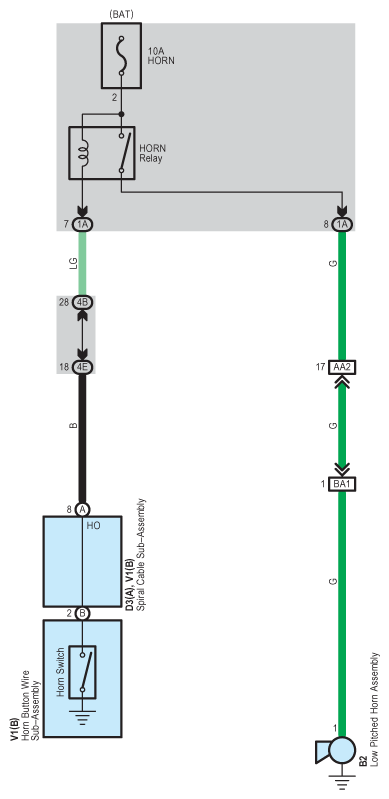

Fig 1: Horn (S/D) System Wiring Diagram

G09112756

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
