CRANKSHAFT POSITION SENSOR (for Sedan): Components: Illustration

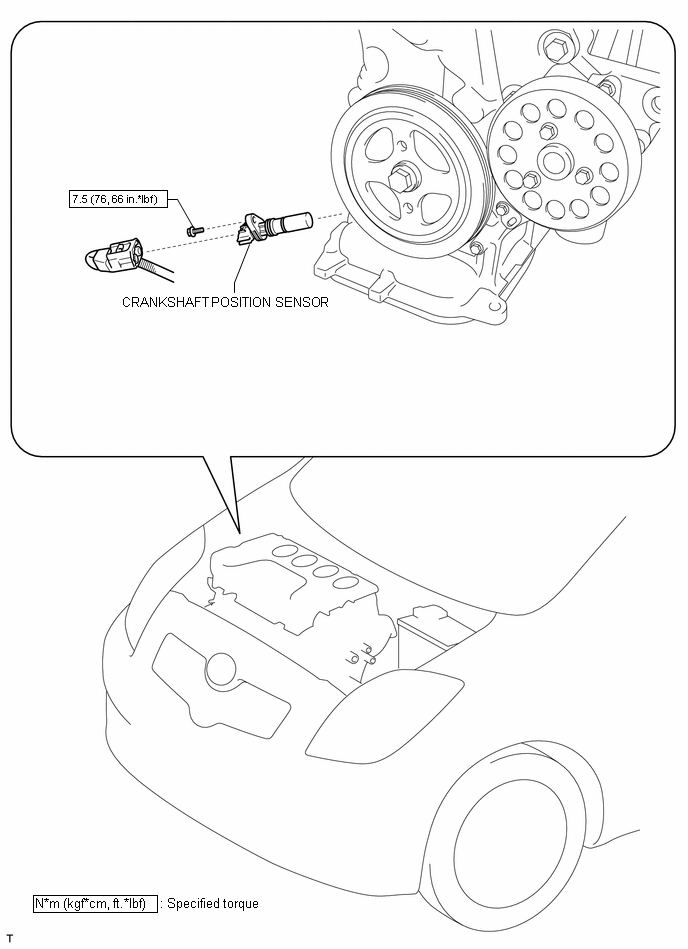

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (For Sedan) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Crankshaft Position Sensor Replacement Components With Torque Specifications (For Sedan) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
