POWER SOURCE (Current Flow Chart): S/D

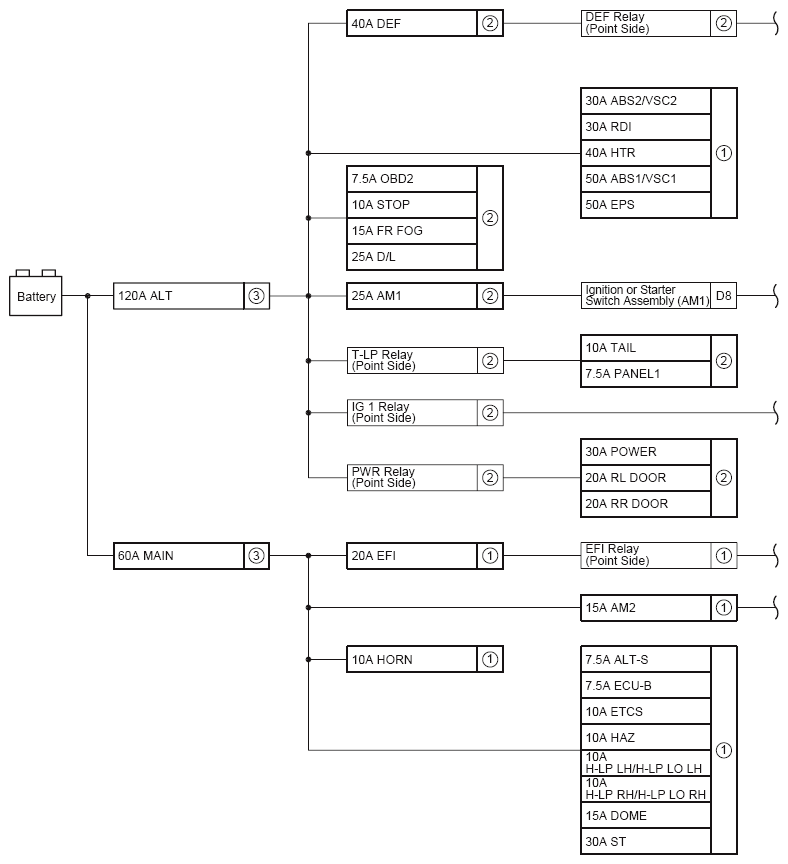

Fig 1: Current Flow Chart (S/D, 1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

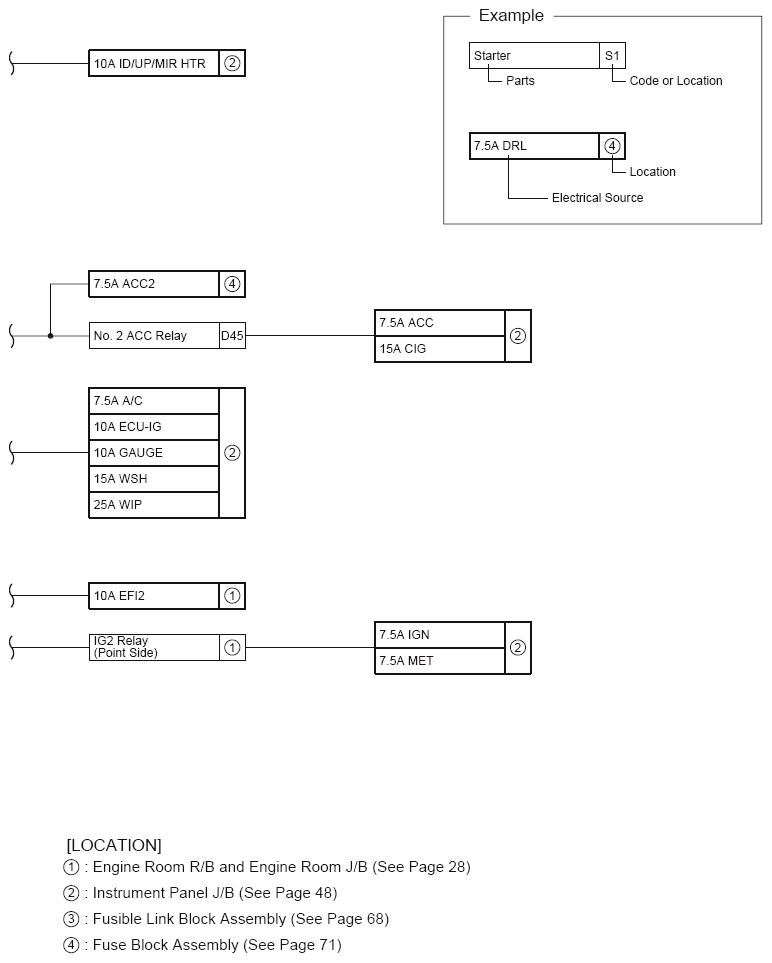

Fig 2: Current Flow Chart (S/D, 2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
