Audio System (S/D): Notes

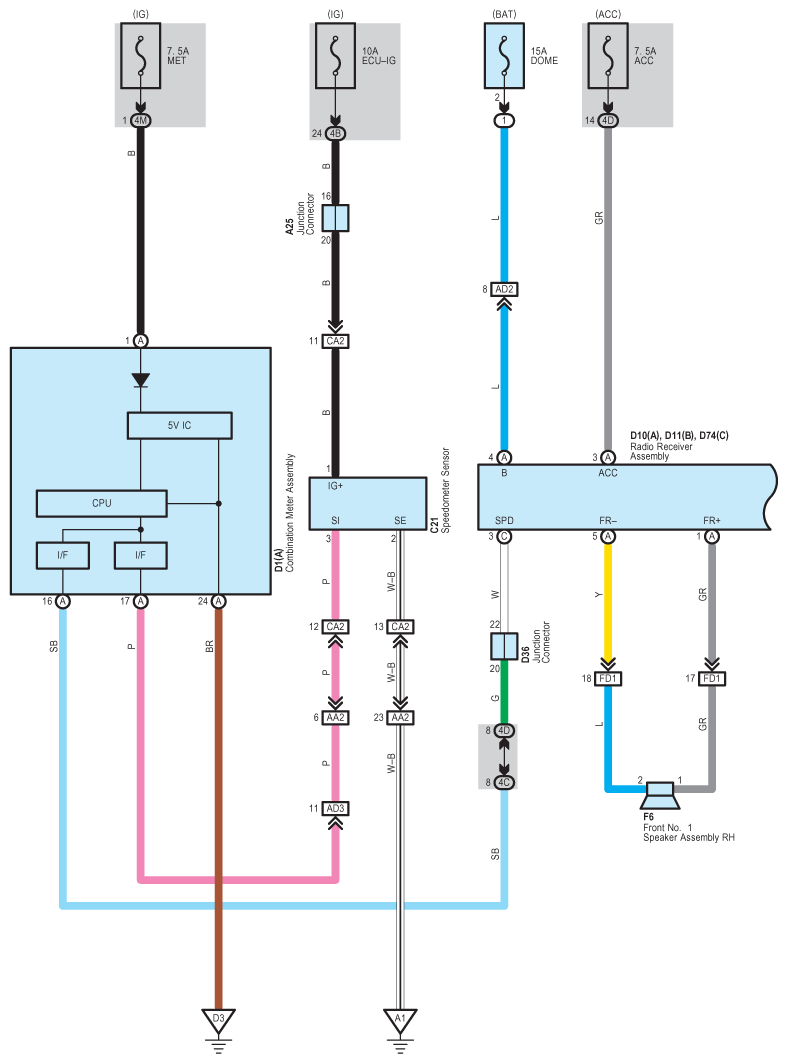

Fig 1: Audio System (S/D) System Wiring Diagram (1 Of 2)
G09112760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

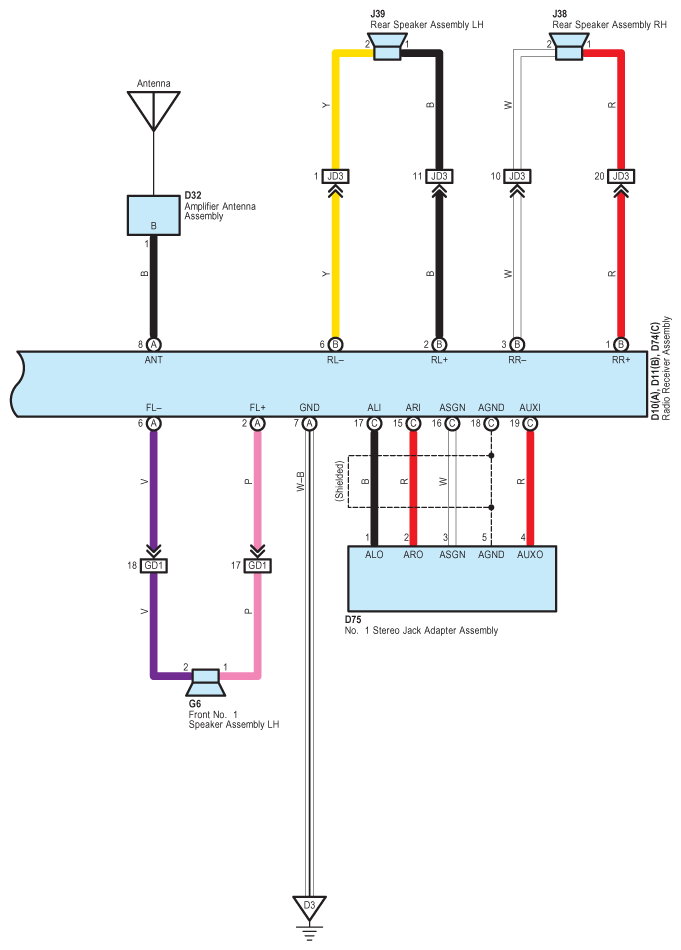

Fig 2: Audio System (S/D) System Wiring Diagram (2 Of 2)
G09112761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
