Yaris SE, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Back-Up Light (H/B)
›
Notes
Back-Up Light (H/B): Notes

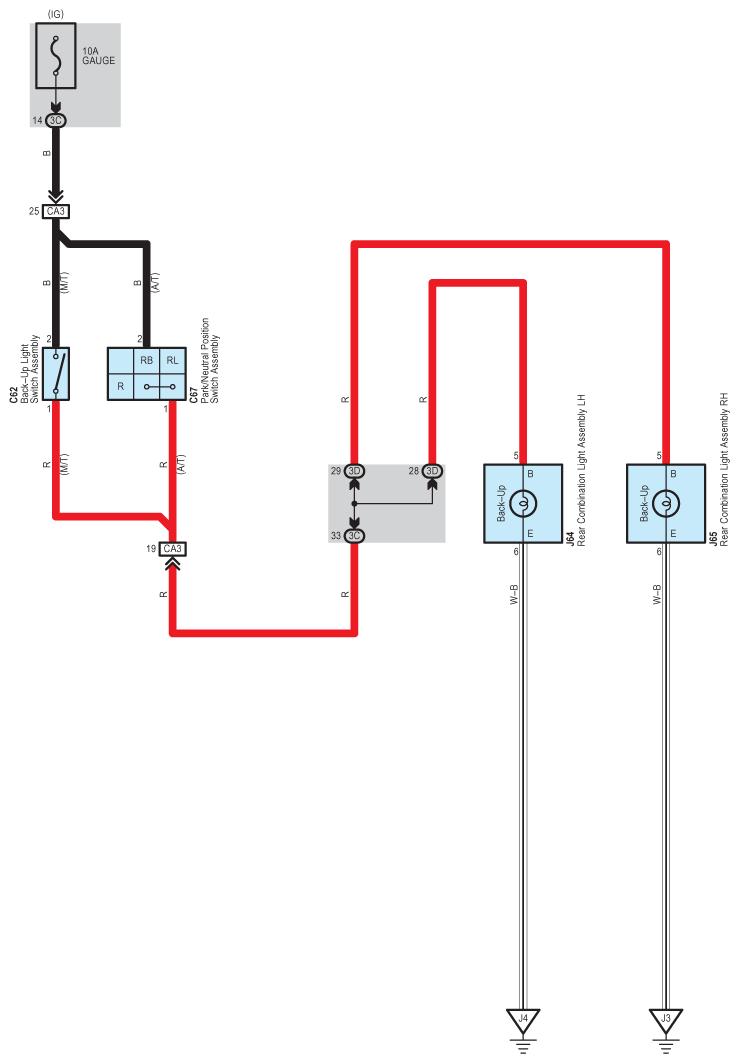

Fig 1: Back-Up Light System Wiring Diagram (H/B)
