Back-Up Light (S/D)
›
Notes
Back-Up Light (S/D): Notes

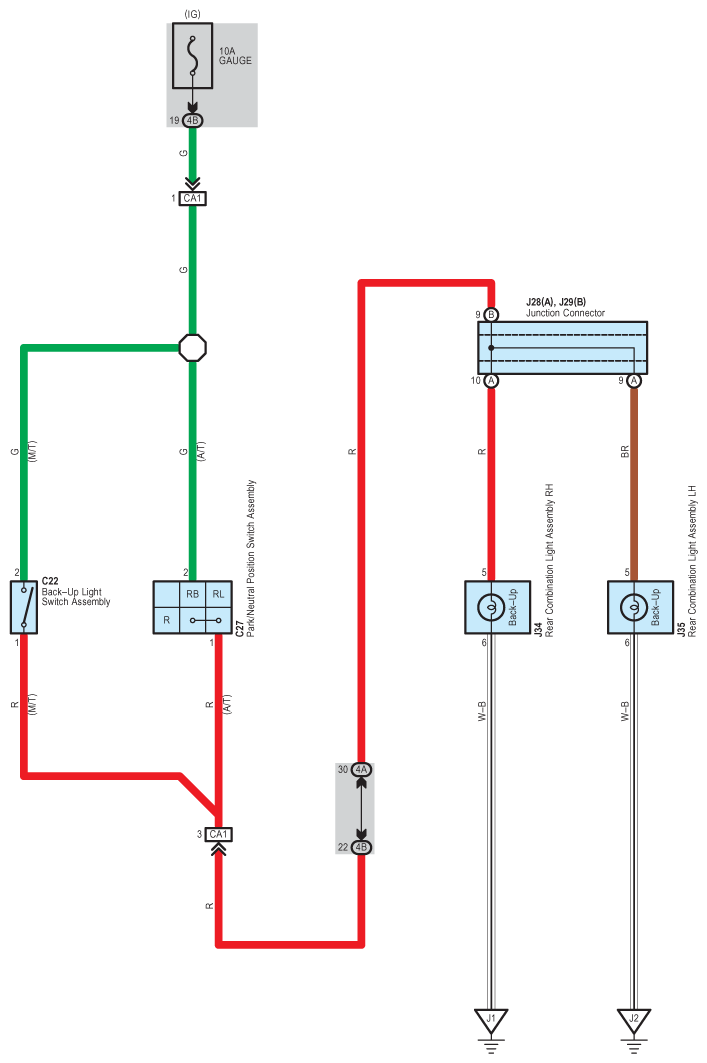

Fig 1: Back-Up Light (S/D) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
