Charging (S/D): Notes

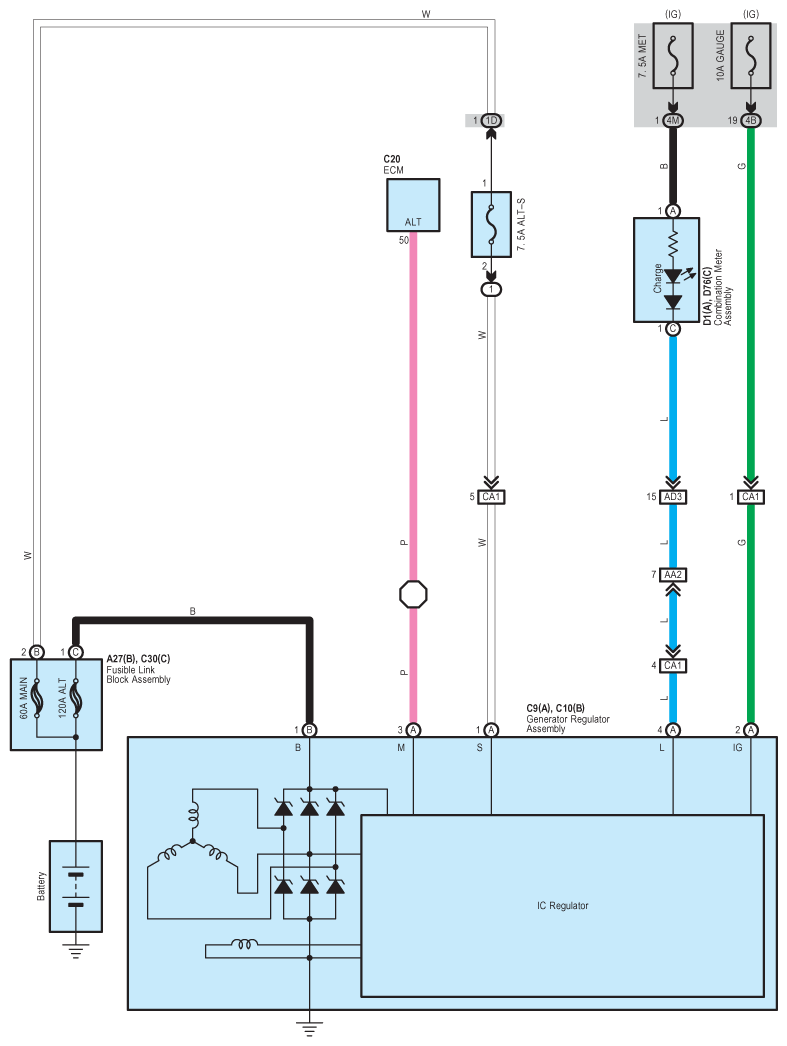

Fig 1: Charging (S/D) System Wiring Diagram
G09112681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
