Door Lock Control (S/D): Notes

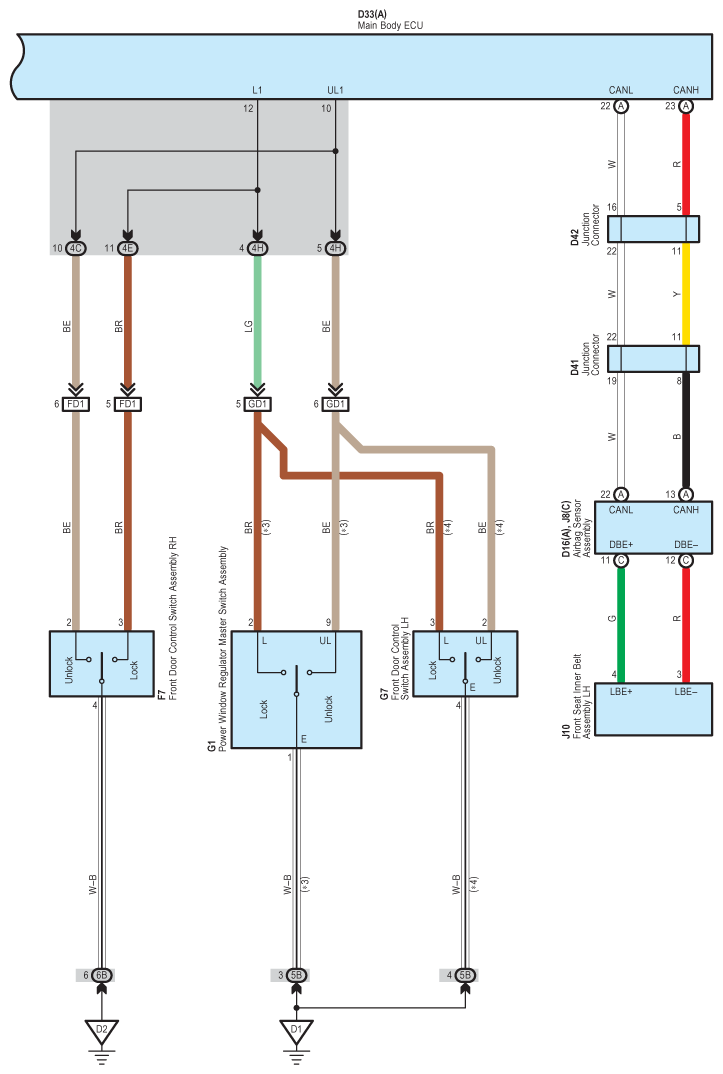

Fig 1: Door Lock Control (S/D) System Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

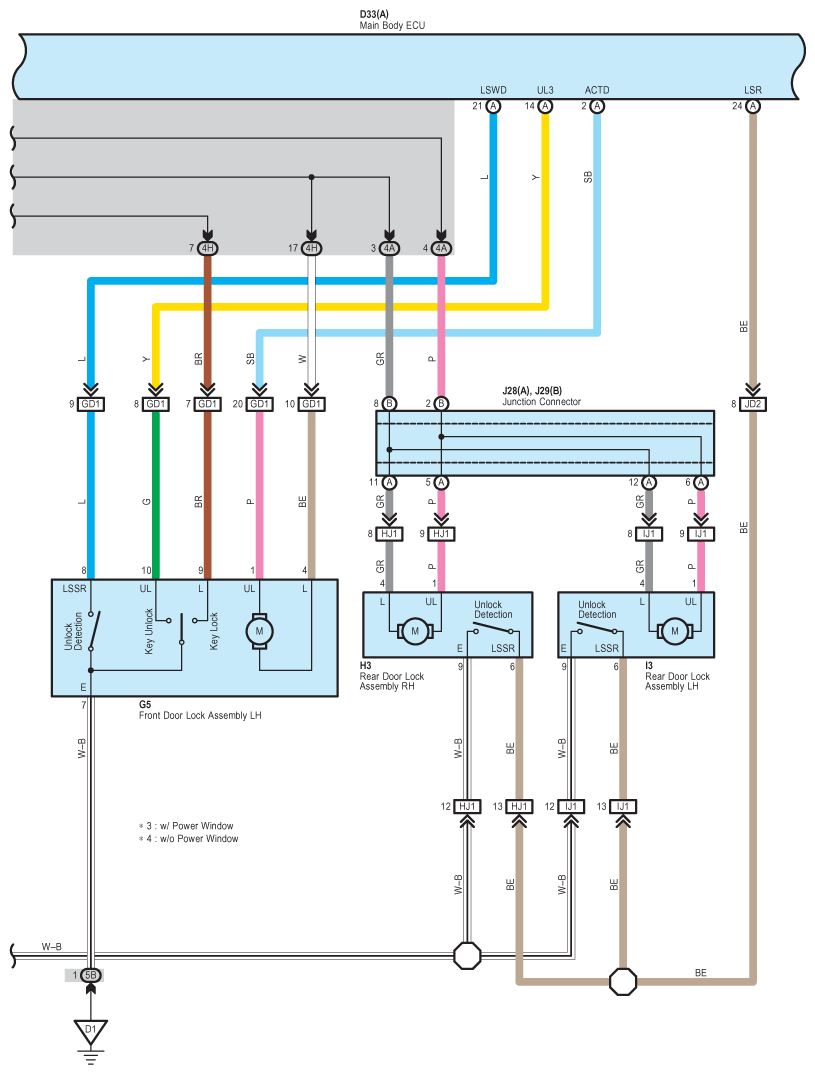

Fig 2: Door Lock Control (S/D) System Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

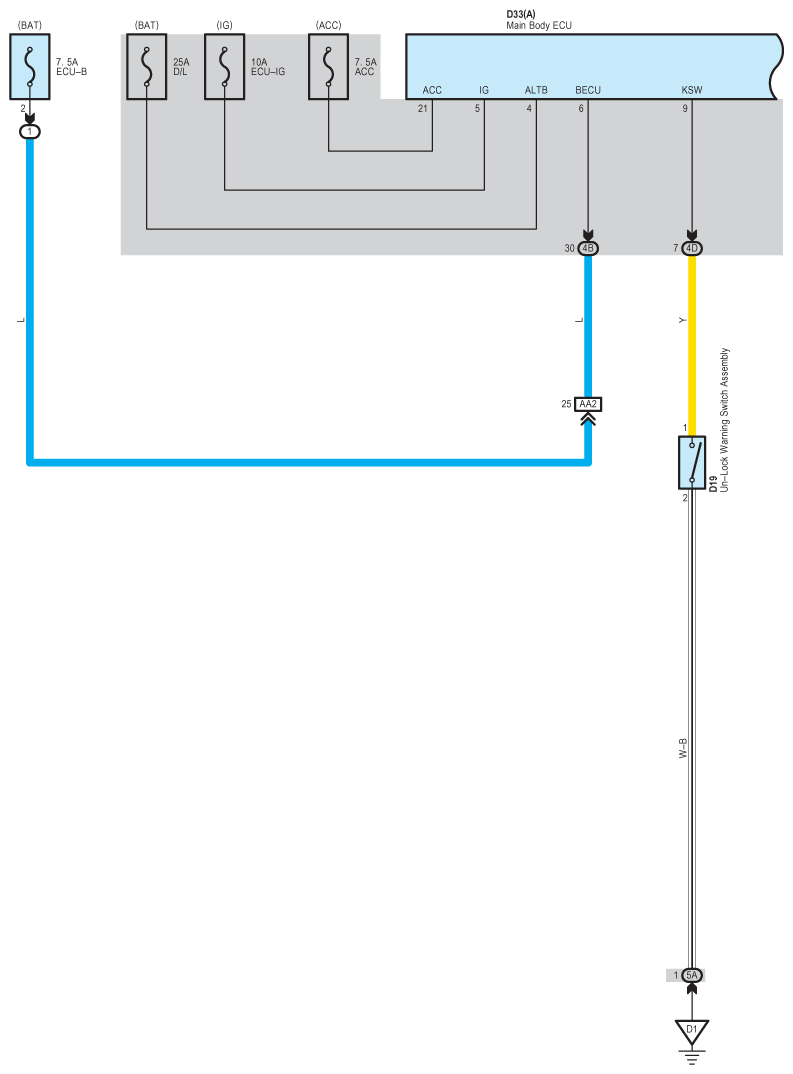

Fig 3: Door Lock Control (S/D) System Wiring Diagram (3 Of 4)

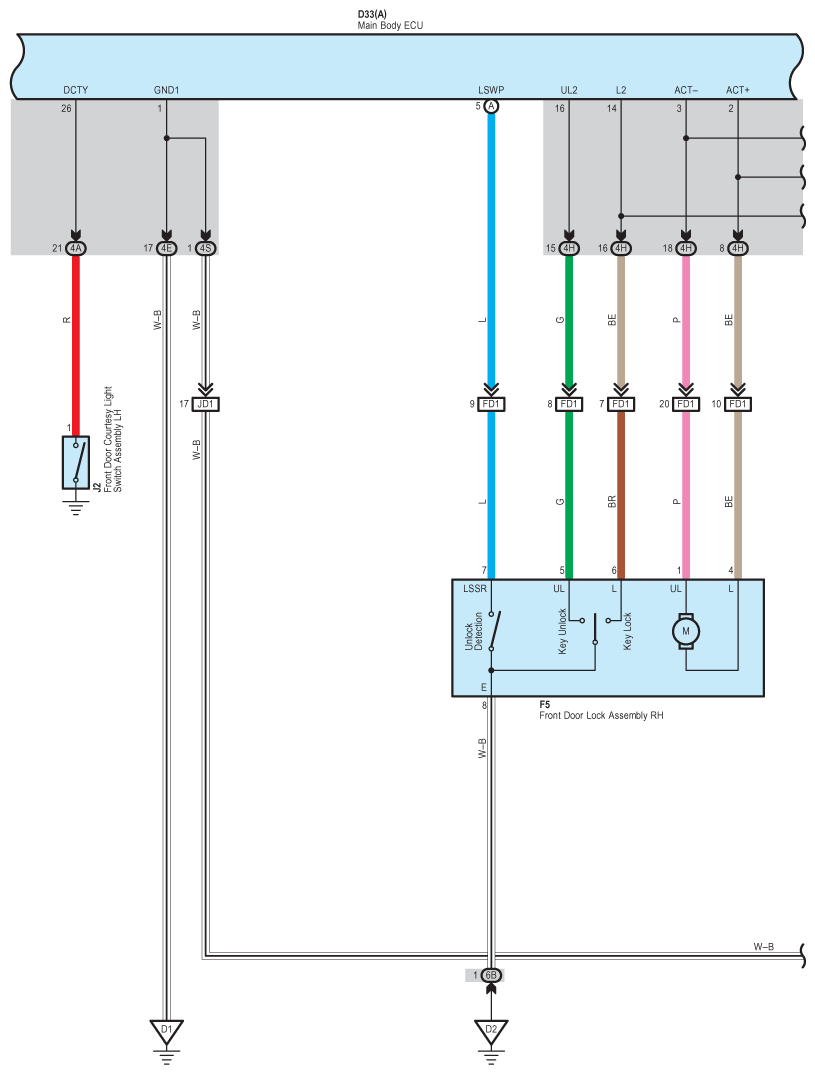

Fig 4: Door Lock Control (S/D) System Wiring Diagram (4 Of 4)
