EPS (S/D): Notes

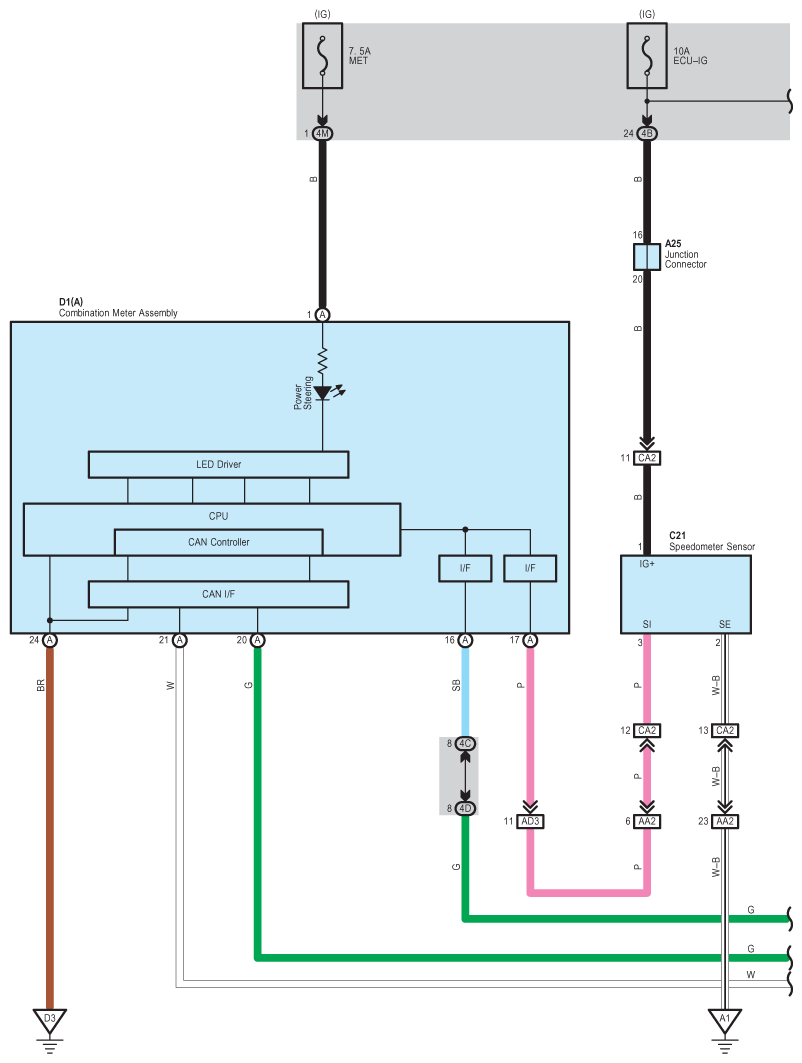

Fig 1: EPS (S/D) System Wiring Diagram (1 Of 2)
G09112729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

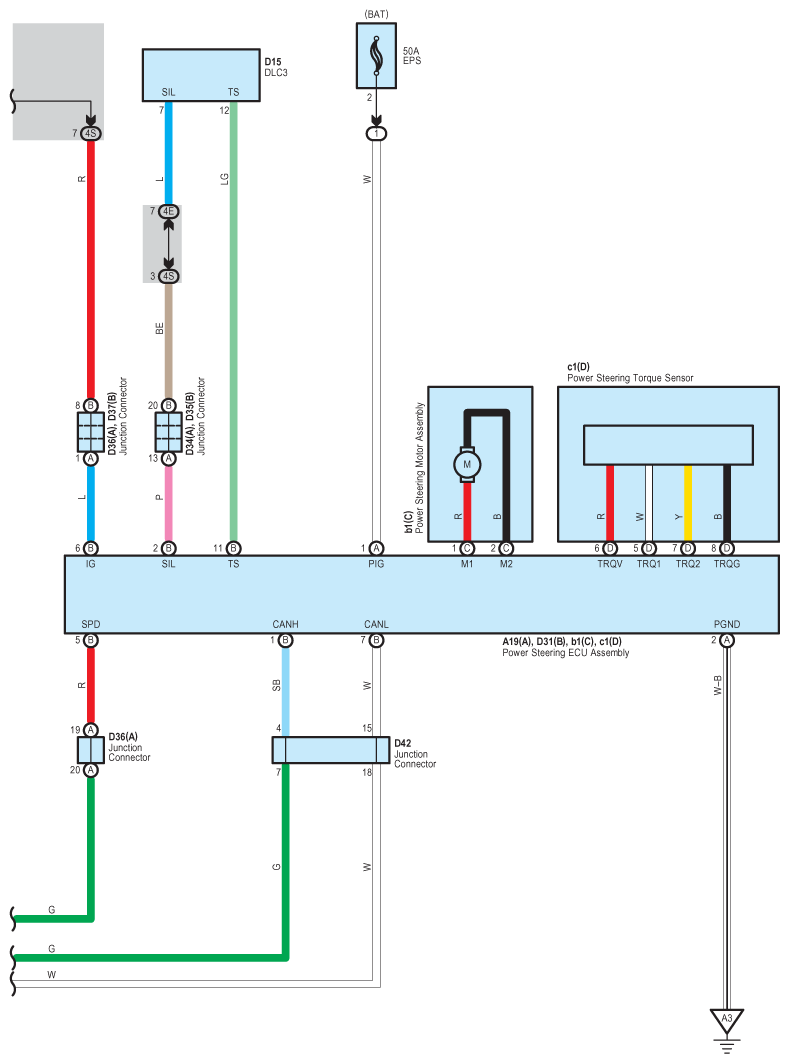

Fig 2: EPS (S/D) System Wiring Diagram (2 Of 2)
G09112730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
