Front Fog Light (S/D): Notes

Fig 1: Front Fog Light (S/D) System Wiring Diagram (1 Of 2)
G09112716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

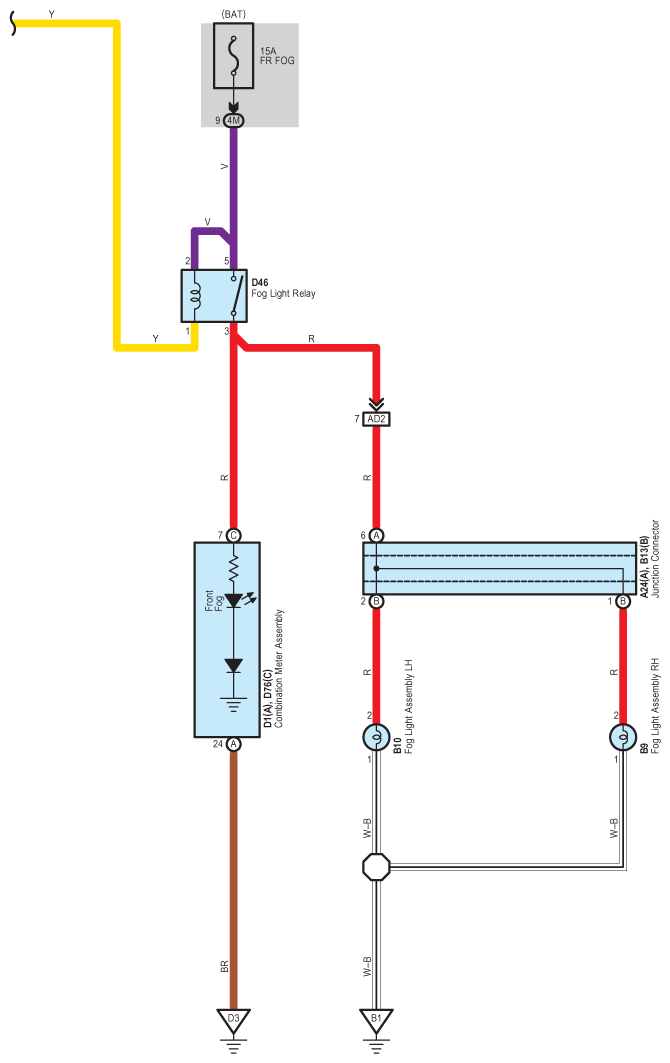

Fig 2: Front Fog Light (S/D) System Wiring Diagram (2 Of 2)
G09112717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
