Headlight (S/D): Notes

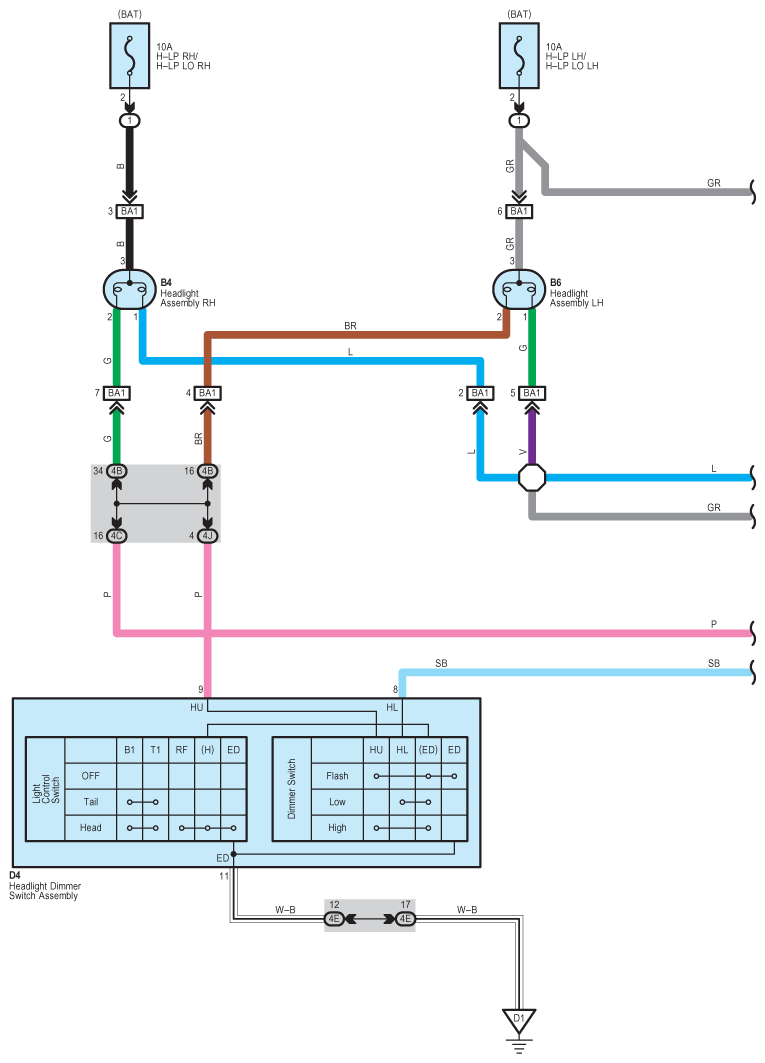

Fig 1: Headlight (S/D) System Wiring Diagram (1 Of 2)
G09112704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

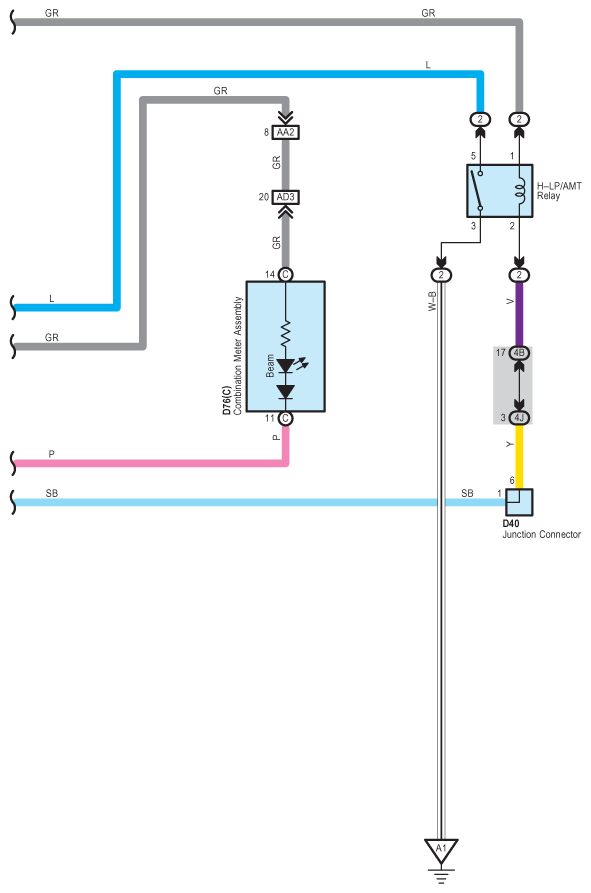

Fig 2: Headlight (S/D) System Wiring Diagram (2 Of 2)
G09112705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
