Ignition (H/B): Notes

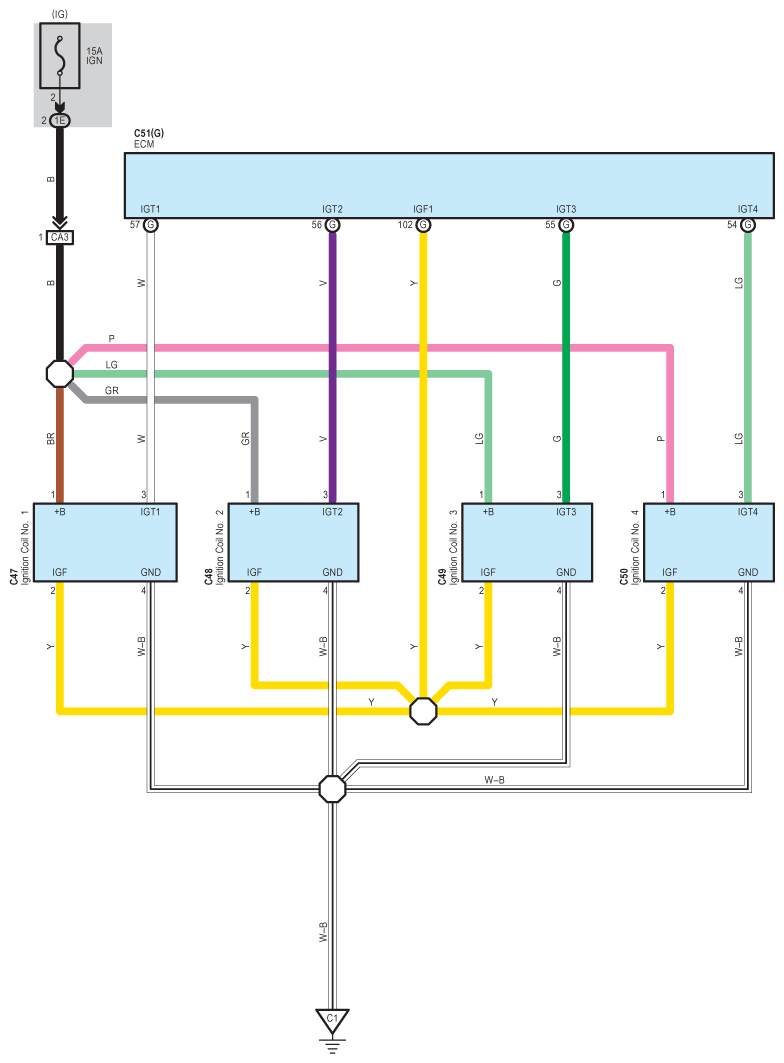

Fig 1: Ignition System Wiring Diagram (H/B)
G09112547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
