Yaris SE, Automatic Trans
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Interior Light (H/B)
›
Notes
Interior Light (H/B): Notes

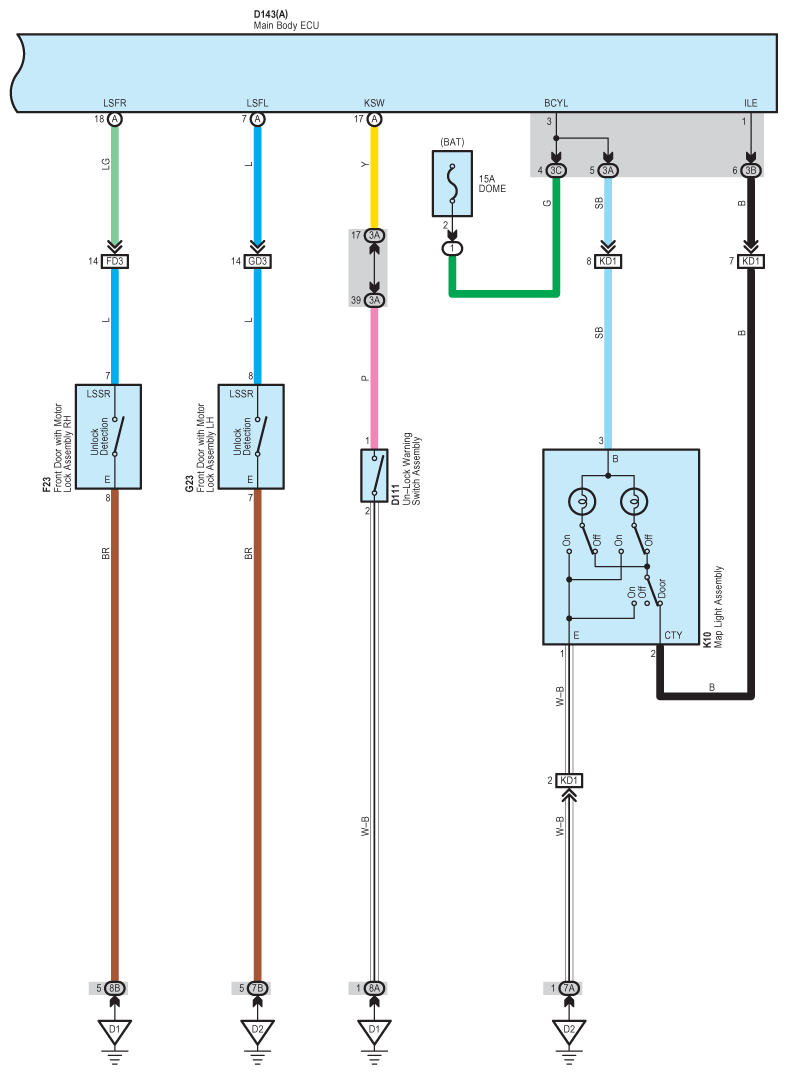

Fig 1: Interior Light System Wiring Diagram (H/B) (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

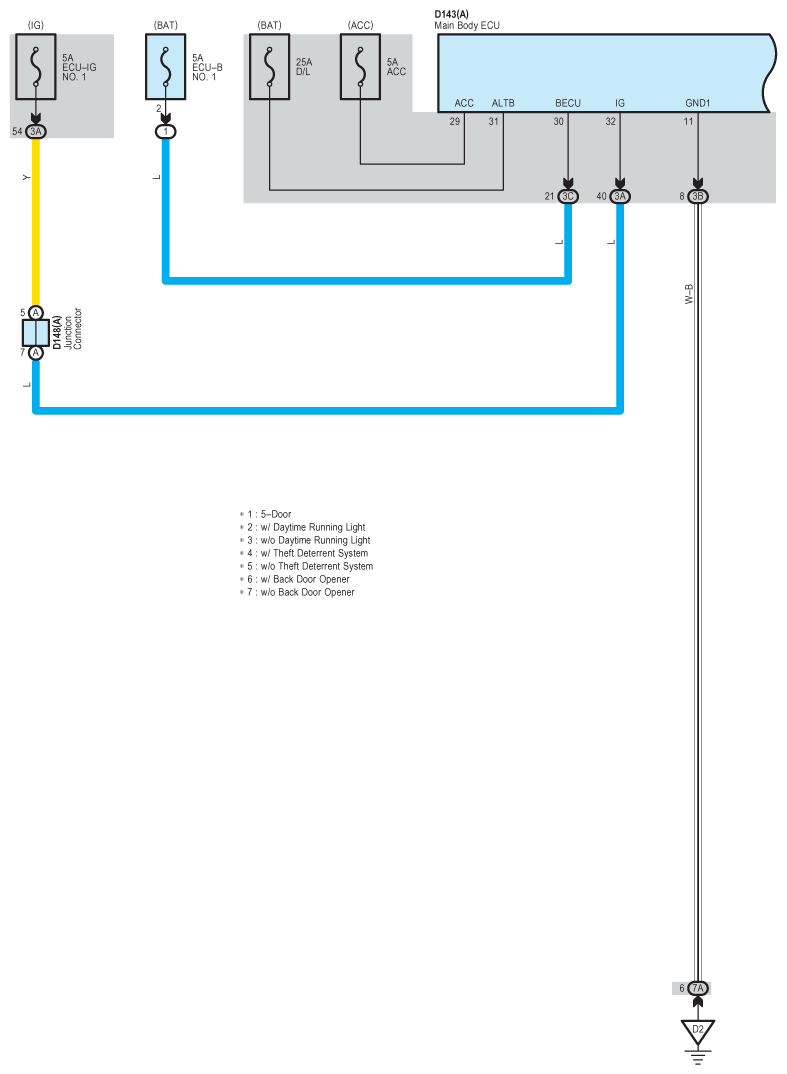

Fig 2: Interior Light System Wiring Diagram (H/B) (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

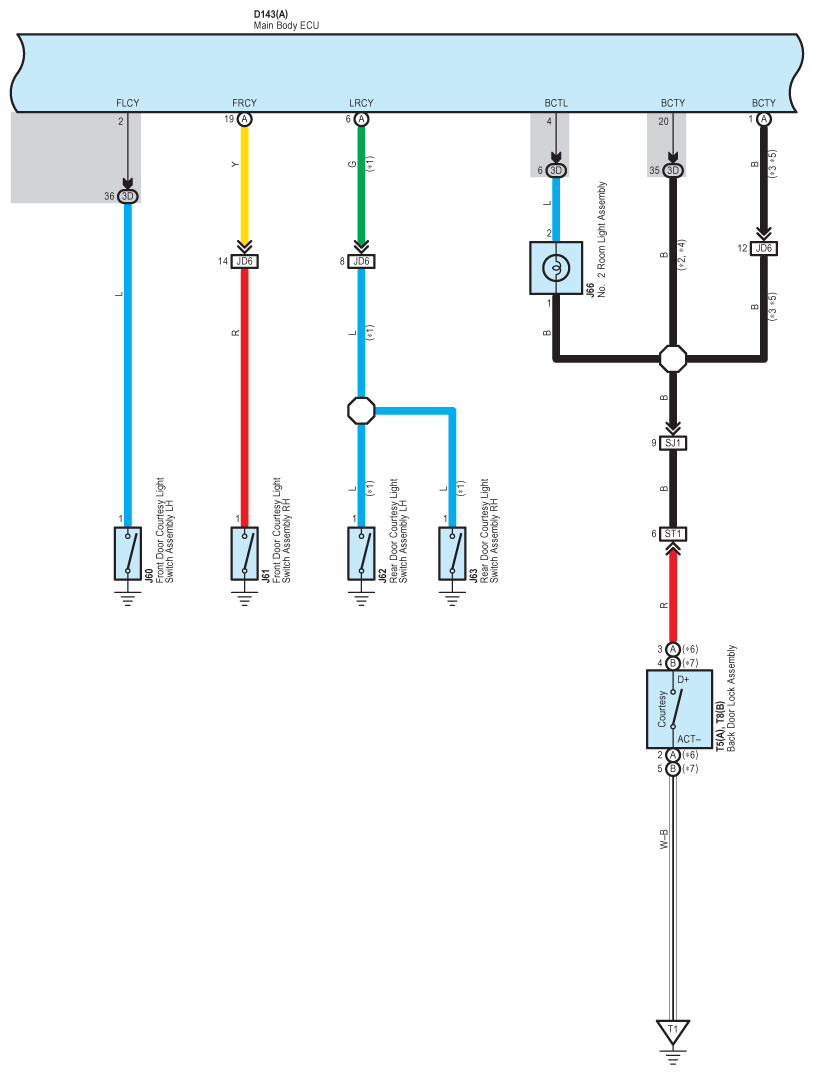

Fig 3: Interior Light System Wiring Diagram (H/B) (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
