Multiplex Communication System (CAN) (H/B): Notes

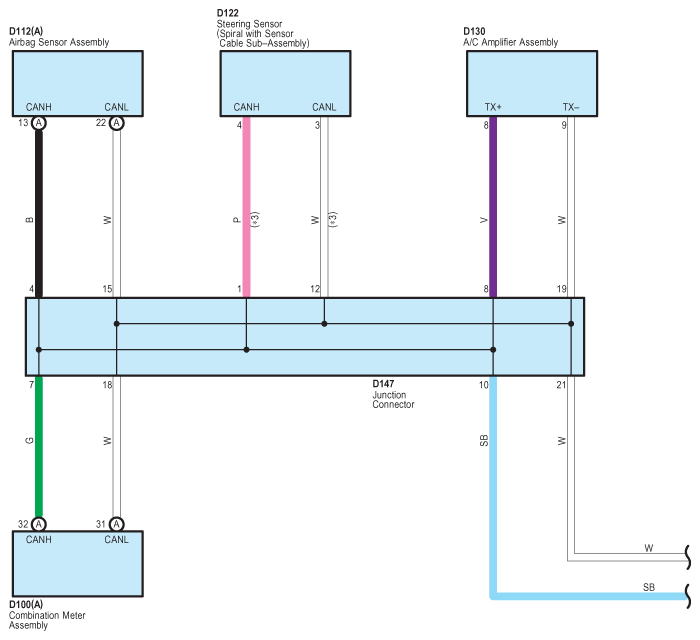

Fig 1: Multiplex Communication System Wiring Diagram (CAN) (H/B) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

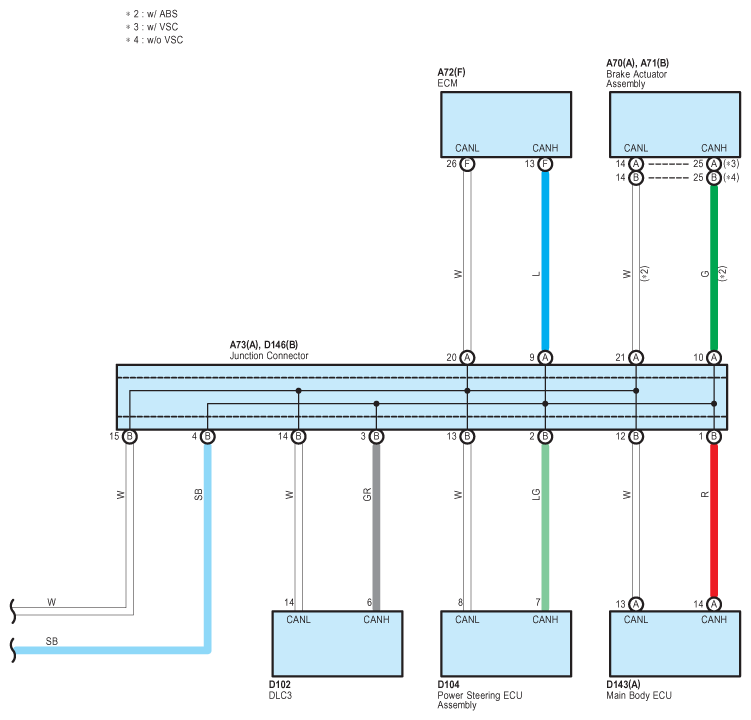

Fig 2: Multiplex Communication System Wiring Diagram (CAN) (H/B) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
