Remote Control Mirror (S/D): Notes

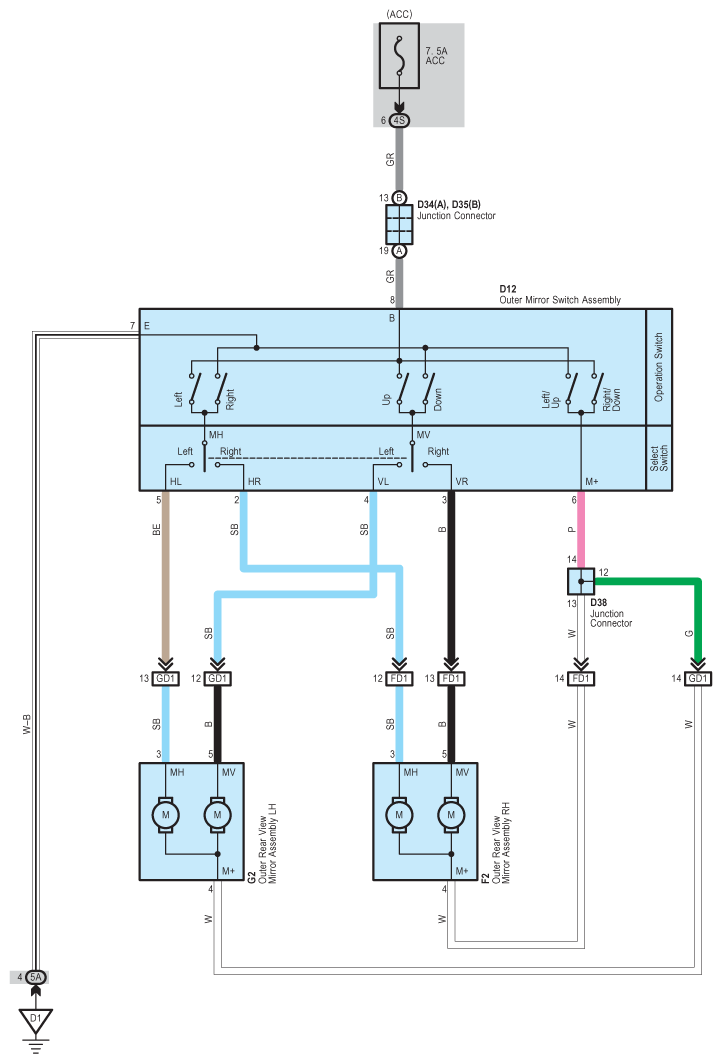

Fig 1: Remote Control Mirror (S/D) System Wiring Diagram
G09112757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
