Shift Lock (H/B)
›
Notes
Shift Lock (H/B): Notes

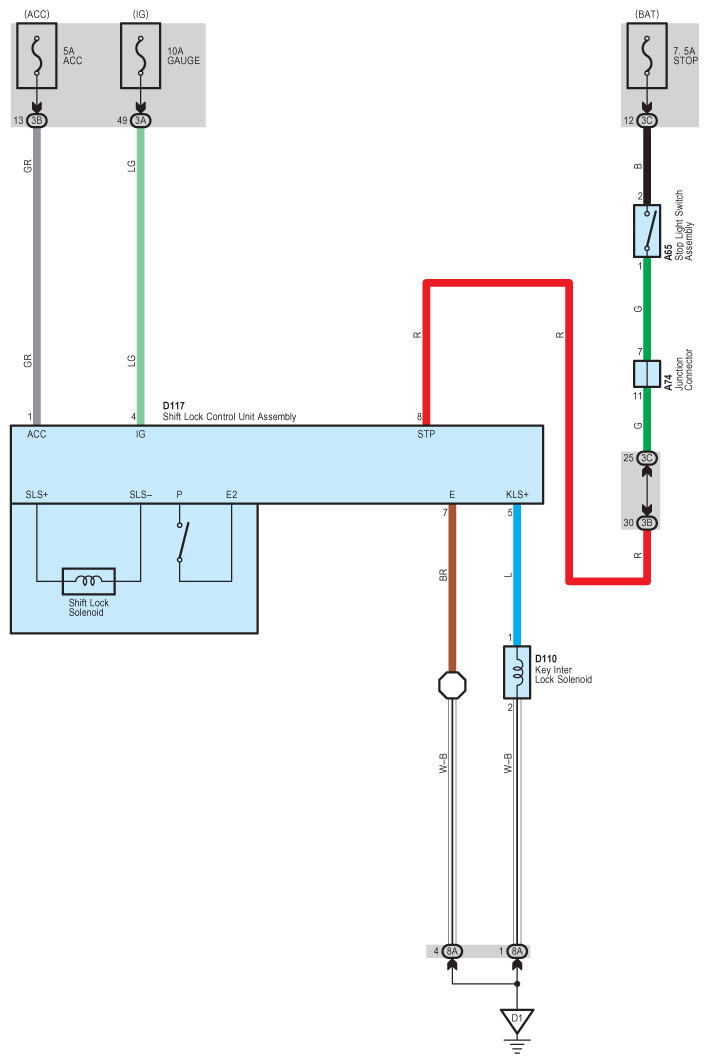

Fig 1: Shift Lock (H/B) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
