Shift Lock (S/D)
›
Notes
Shift Lock (S/D): Notes

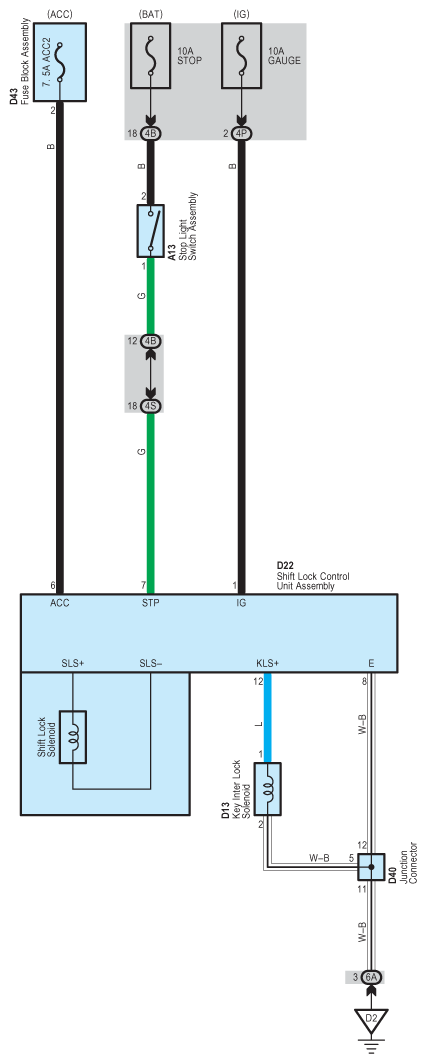

Fig 1: Shift Lock (S/D) System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
