Starting (H/B): Notes

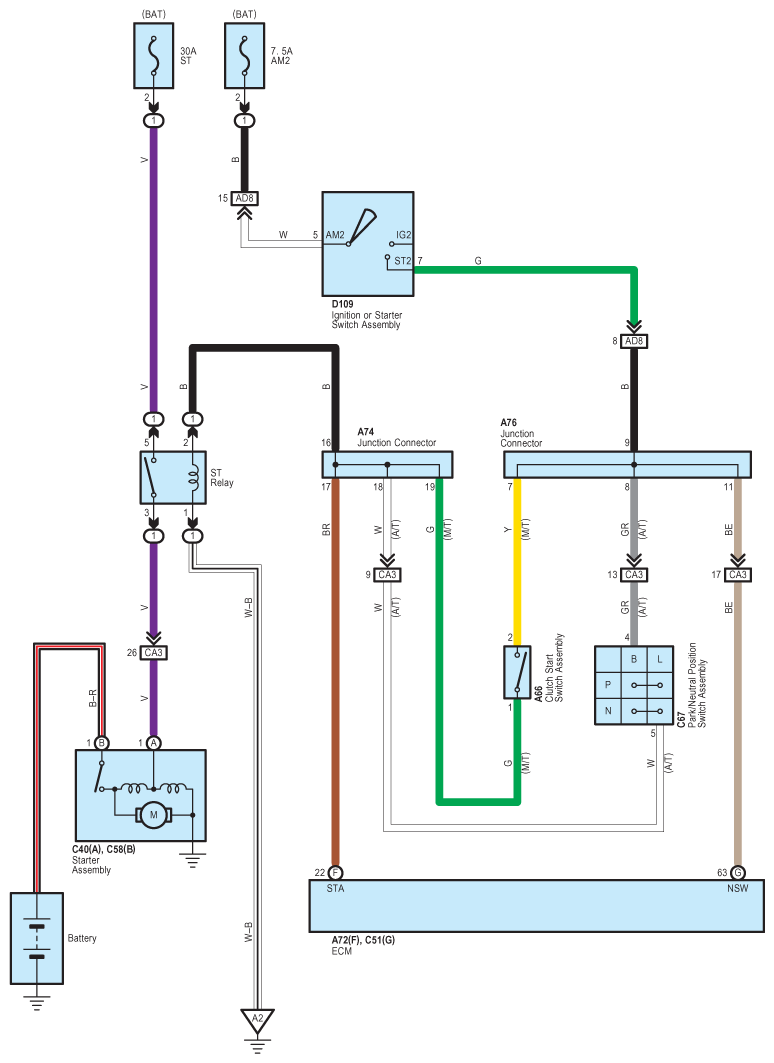

Fig 1: Starting System Wiring Diagram (H/B)

G09112544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
