Stop Light (H/B)
›
Notes
Stop Light (H/B): Notes

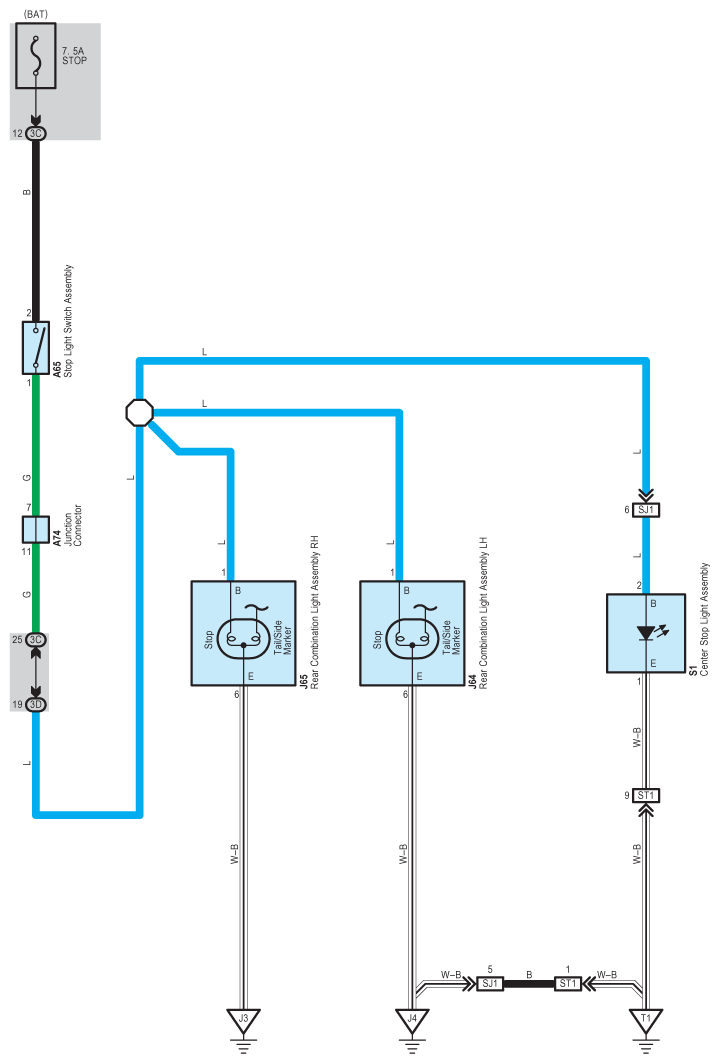

Fig 1: Stop Light System Wiring Diagram (H/B)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
