Tire Pressure Warning System (H/B): Notes

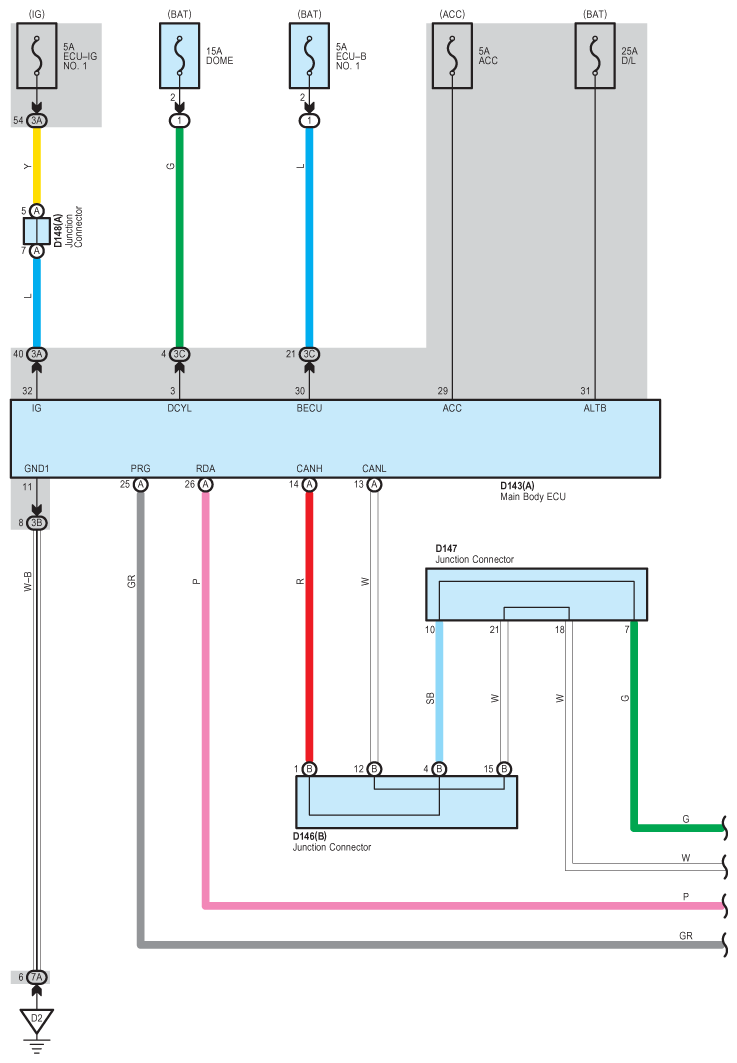

Fig 1: Tire Pressure Warning System Wiring Diagram (H/B) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

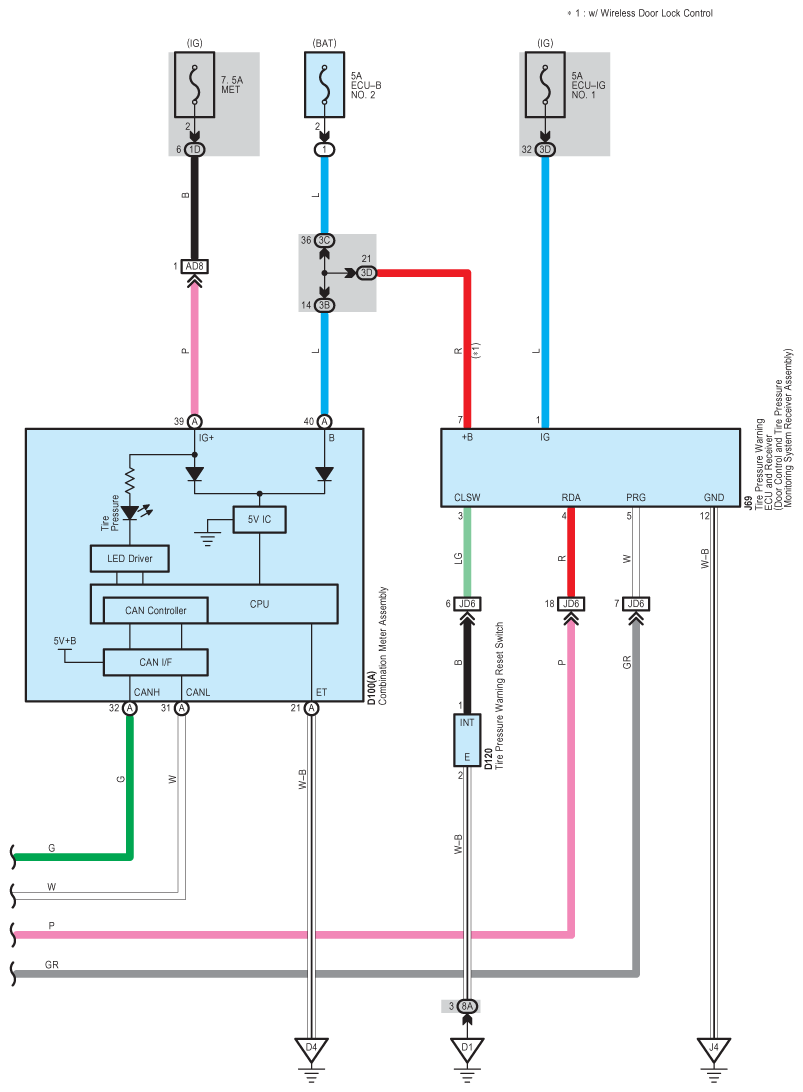

Fig 2: Tire Pressure Warning System Wiring Diagram (H/B) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
