CAMSHAFT OIL CONTROL VALVE (for Hatchback): Components: Illustration

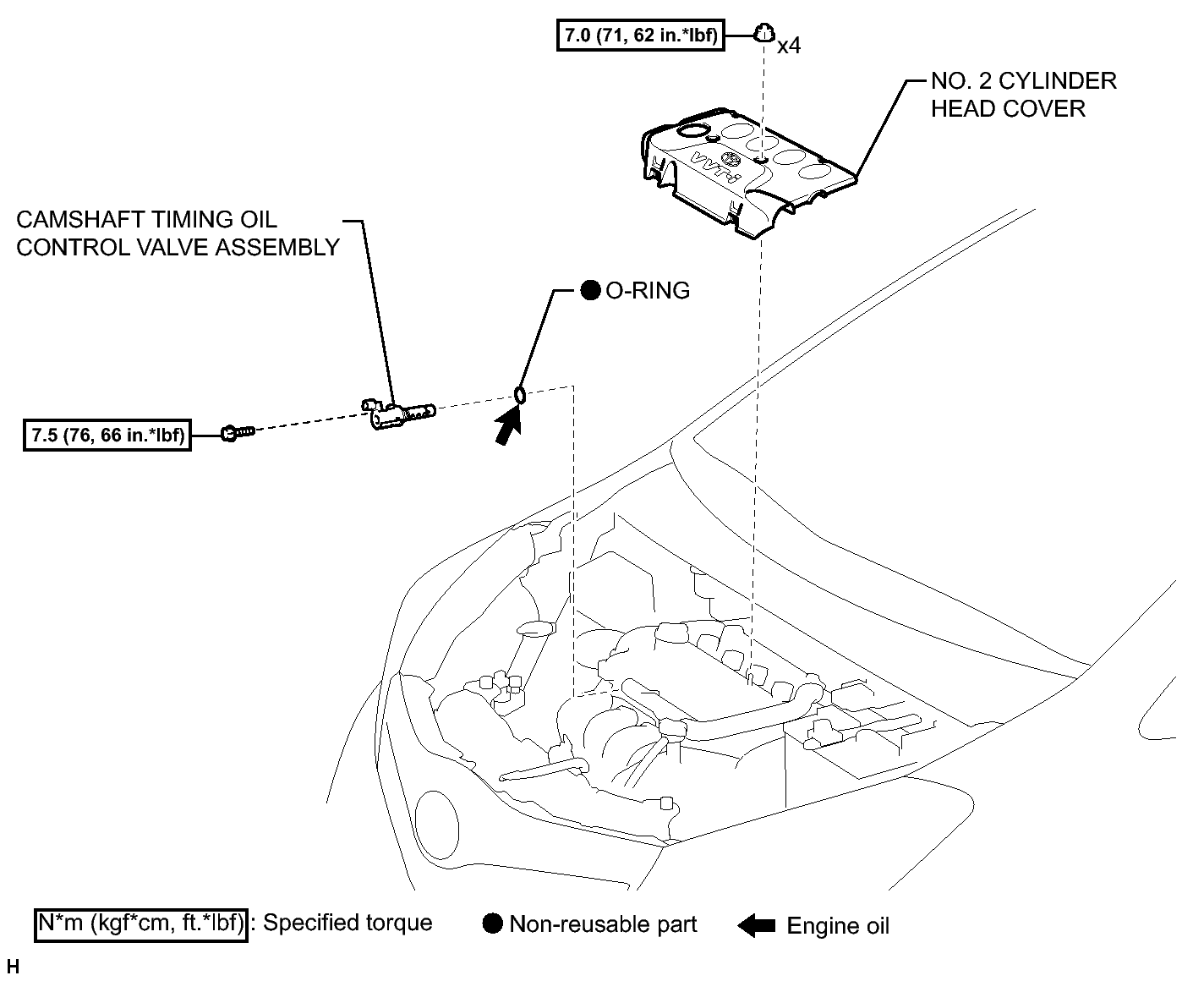

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (For Hatchback)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
