CAMSHAFT POSITION SENSOR (for Hatchback): Components: Illustration

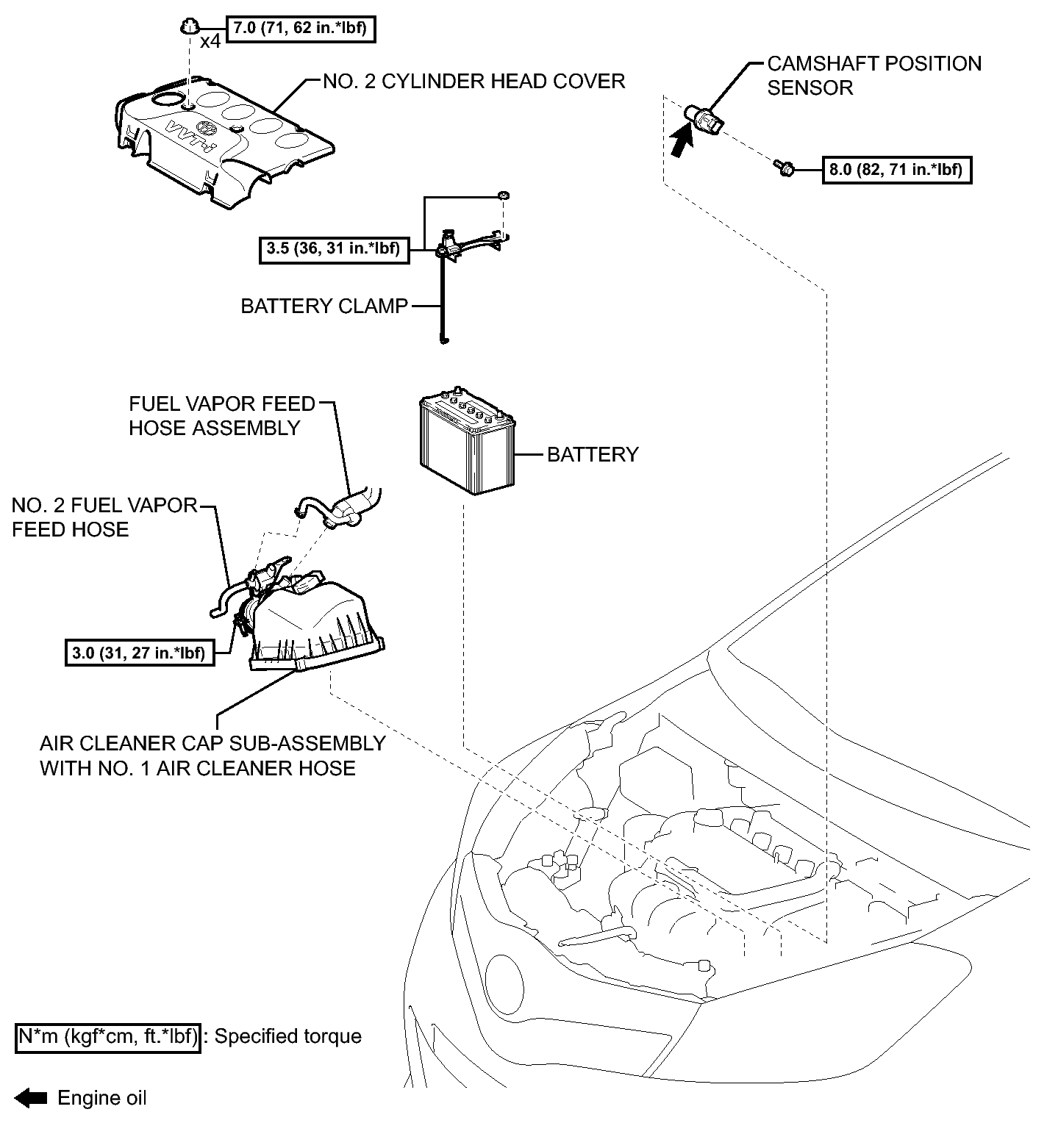

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications (For Hatchback)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
