Parts Location: Illustration

WARNING: This page is about a different car, the 2013 Toyota Prius V. However, it is still accessible from the selected car via links, so may be relevant.

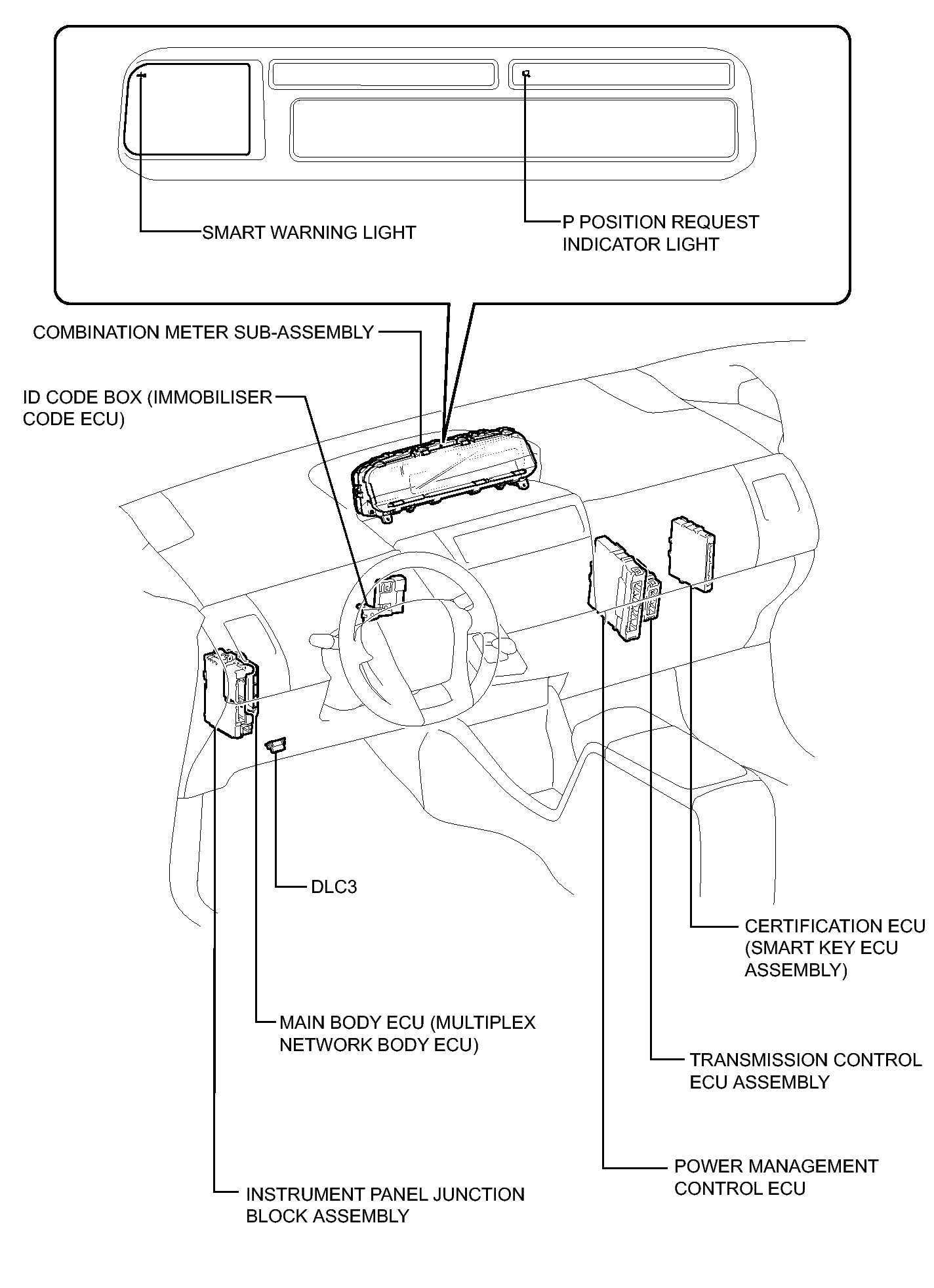

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

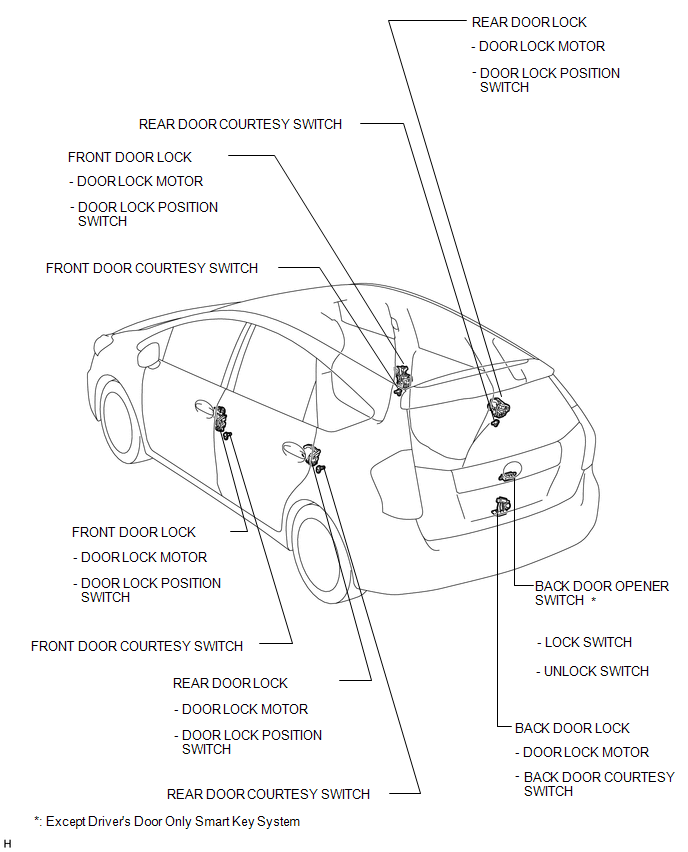

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (2 Of 3)

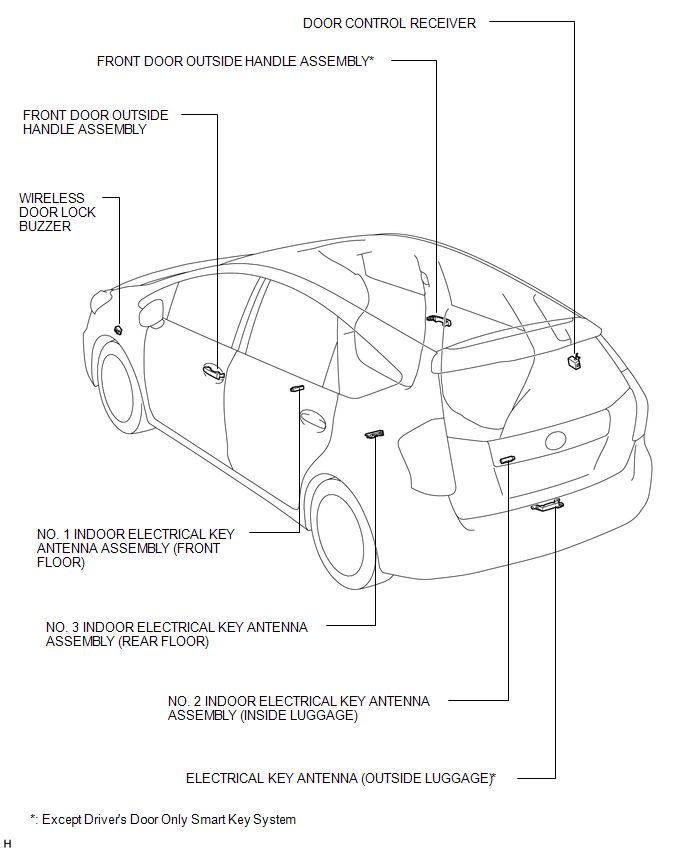

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (3 Of 3)
