Ignition
›
System Diagrams
System Diagrams

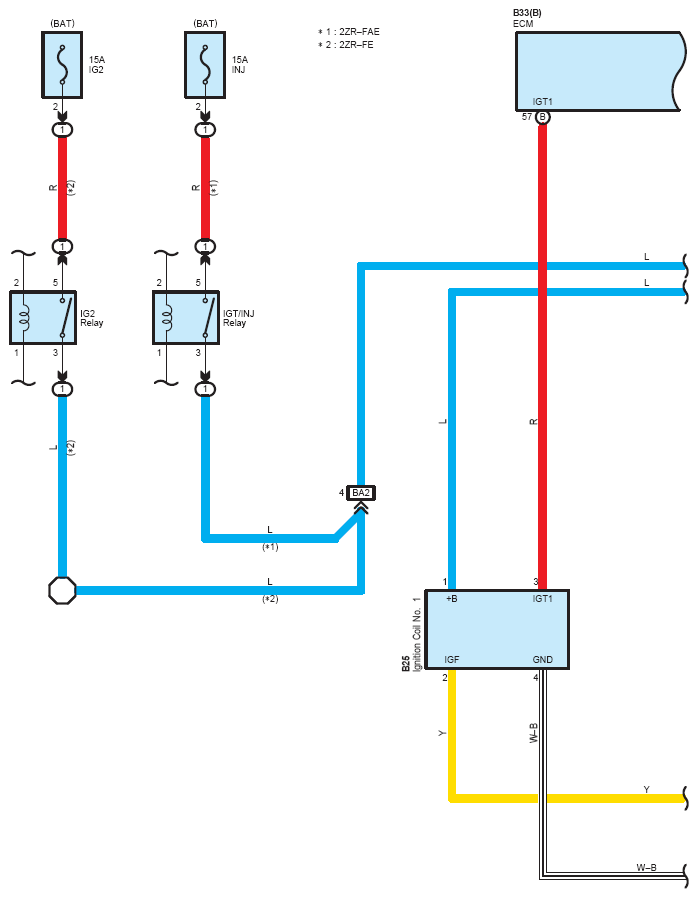

Fig 1: Ignition (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

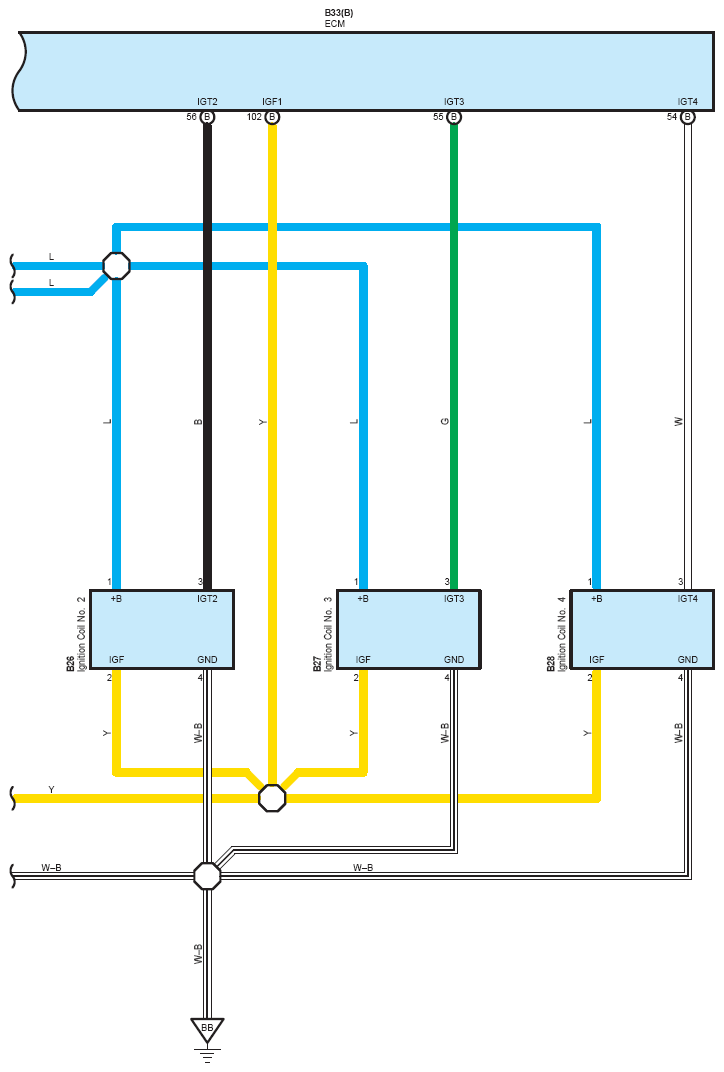

Fig 2: Ignition (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
