System Diagram [10/2013 - ]

WARNING: This page is about a different variant/trim than selected.

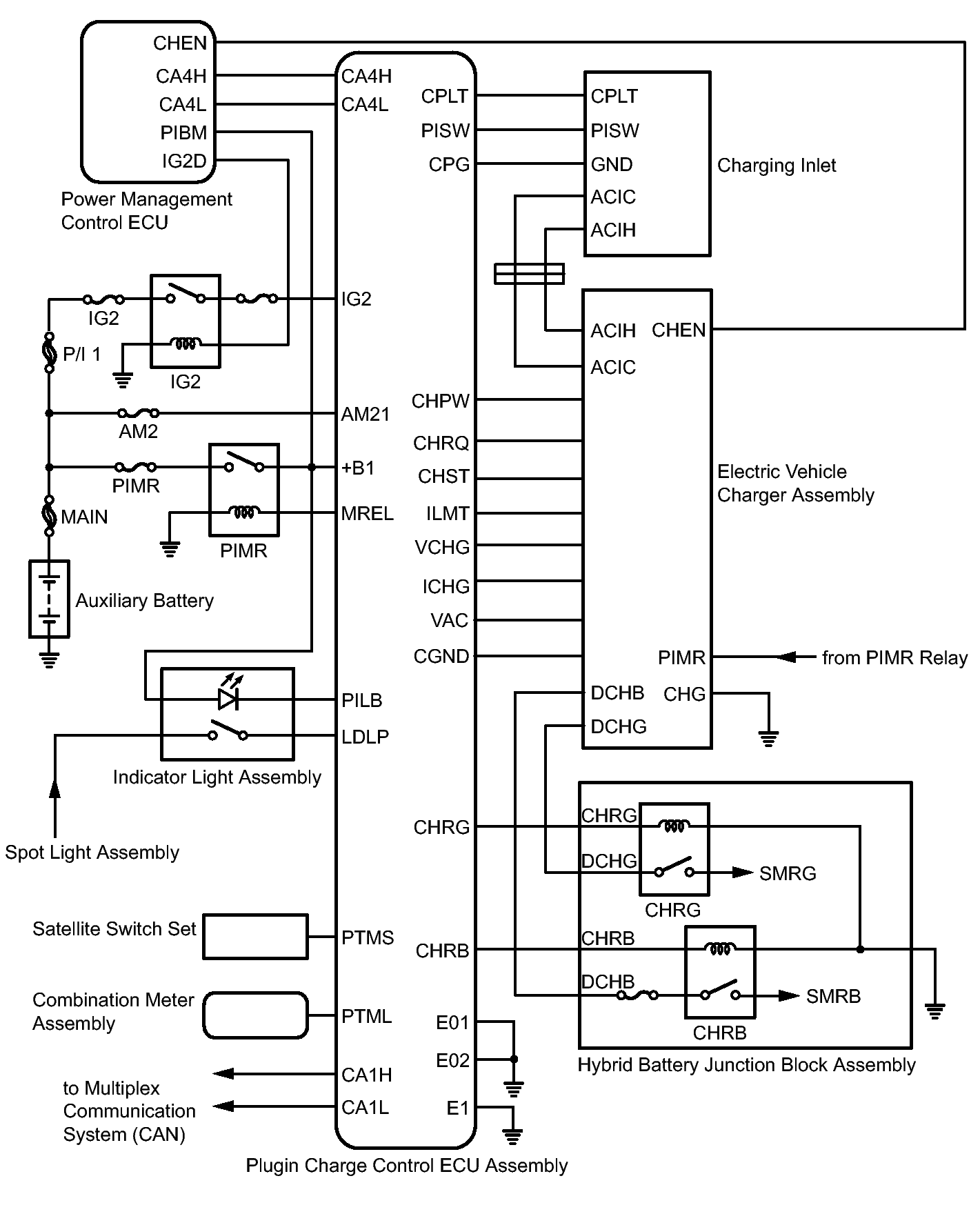

Fig 1: Identifying Plug-In Charge Control System Circuit Diagram
GTY428150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
