In-Line Connector End View (UD2)
In-Line Connector End View (UD2)

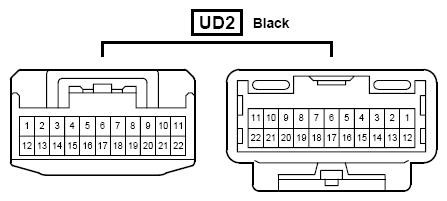

Fig 1: In-Line Connector End View (UD2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
