DTC U0293-449: Lost Communication with Hybrid Powertrain Control Module [08/2014 - ]: Wiring Diagram

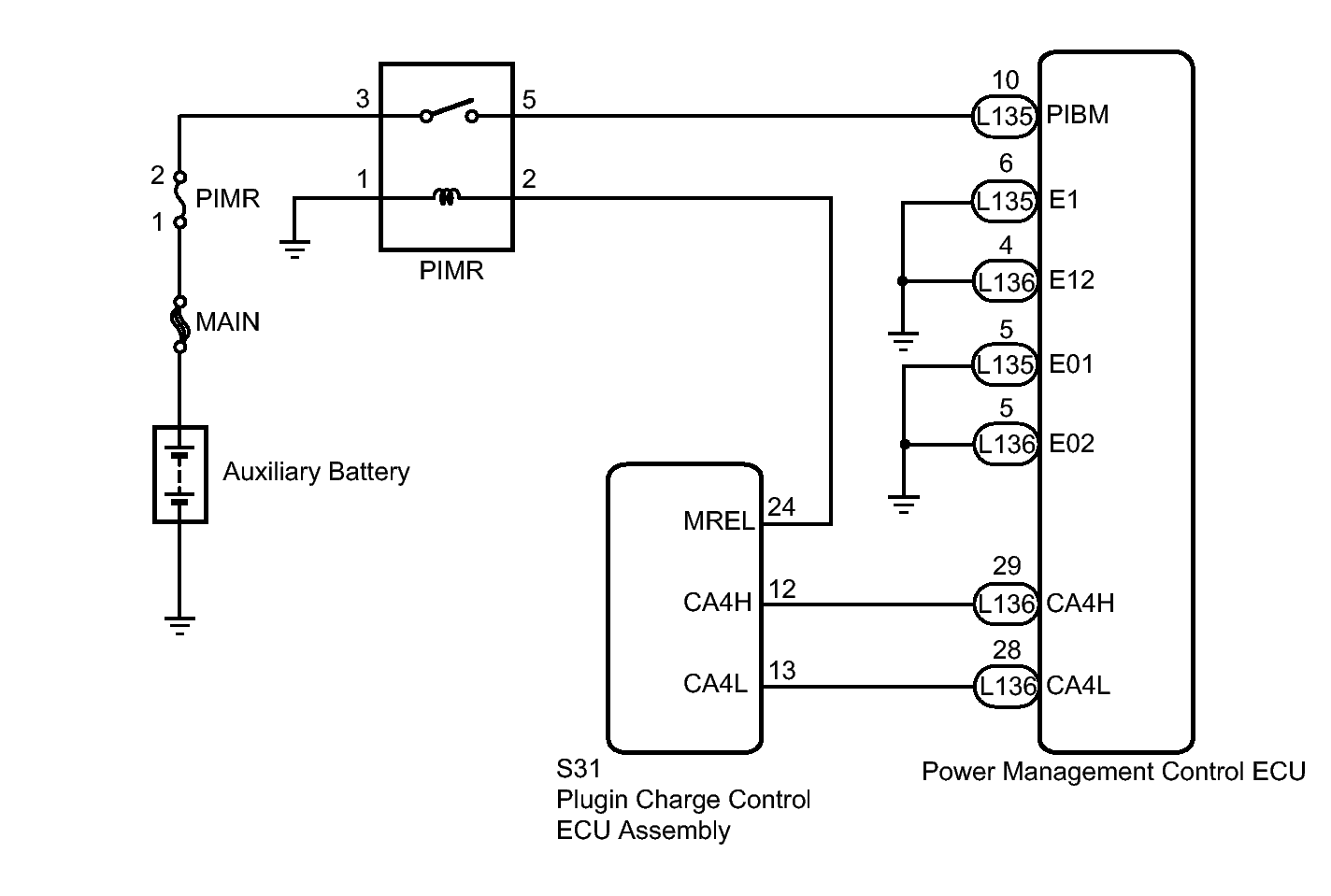

Fig 1: Identifying Power Management Control ECU Circuit Diagram
GTY339480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
