Components [08/2014 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

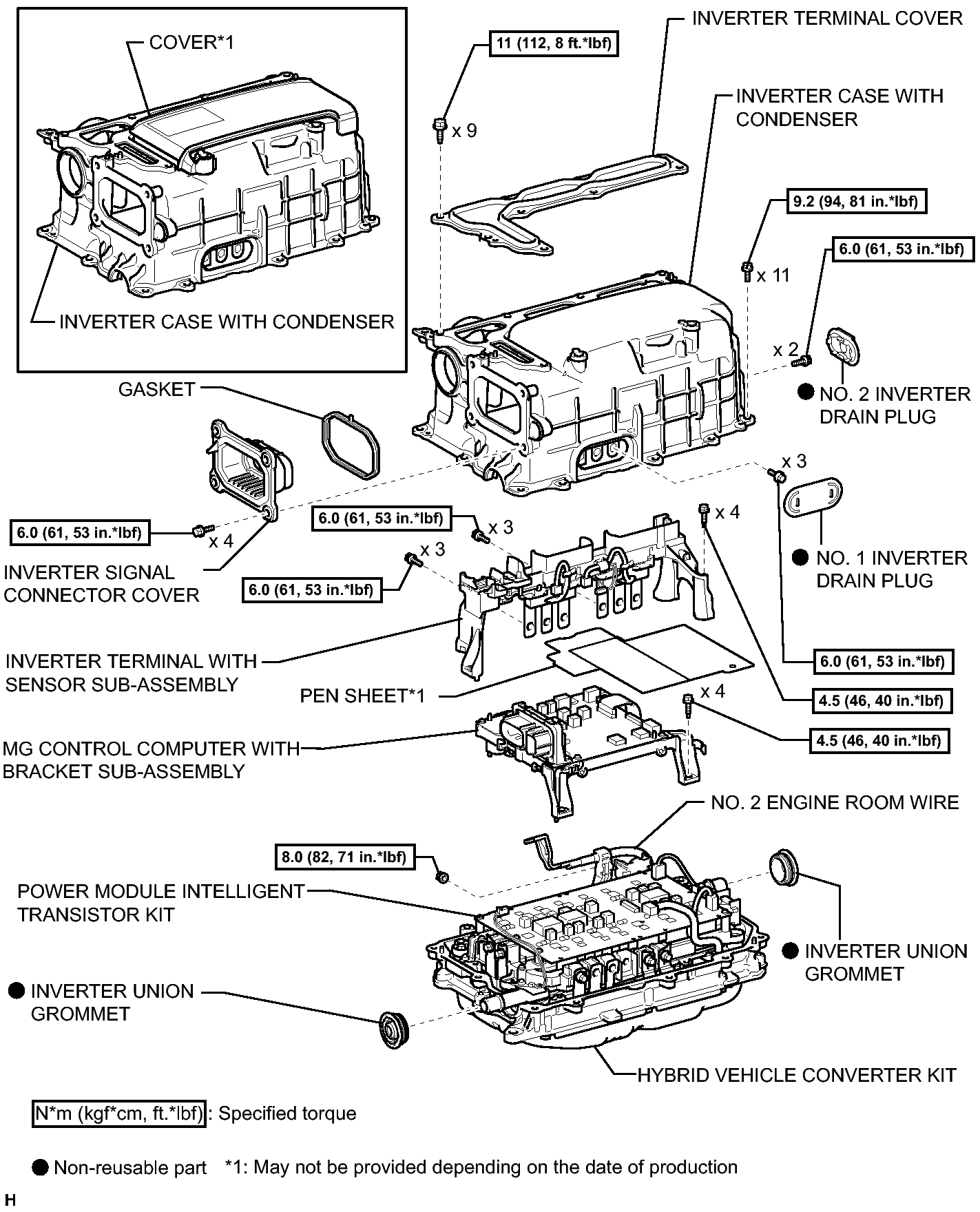

Fig 1: Identifying Inverter Replacement Components With Torque Specifications
GTY480746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
