System Diagram [08/2014 - ]

WARNING: This page is about a different variant/trim than selected.

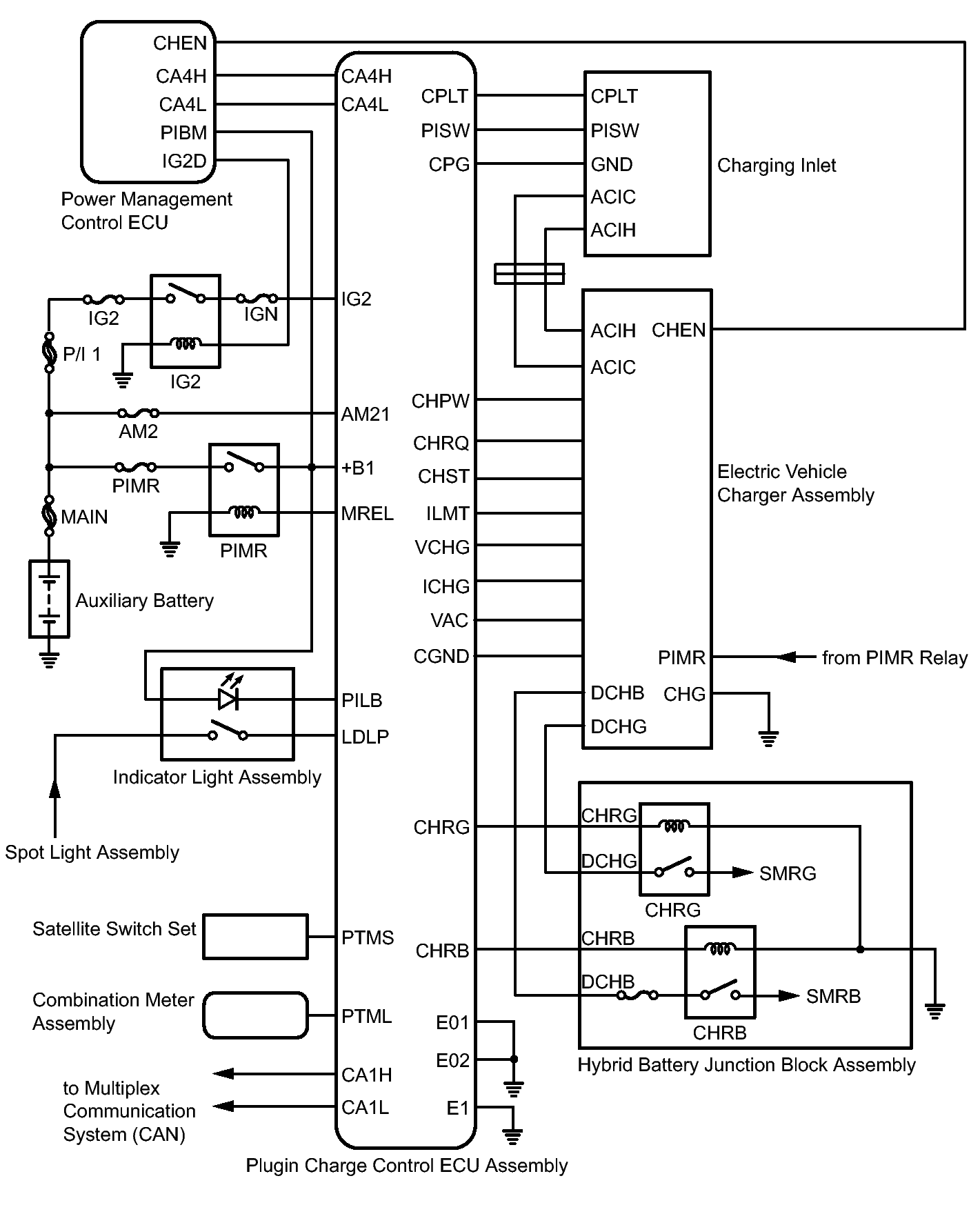

Fig 1: Identifying Plug-In Charge Control System Diagram
GTY473605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
