ECU Power Source Circuit [08/2014 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

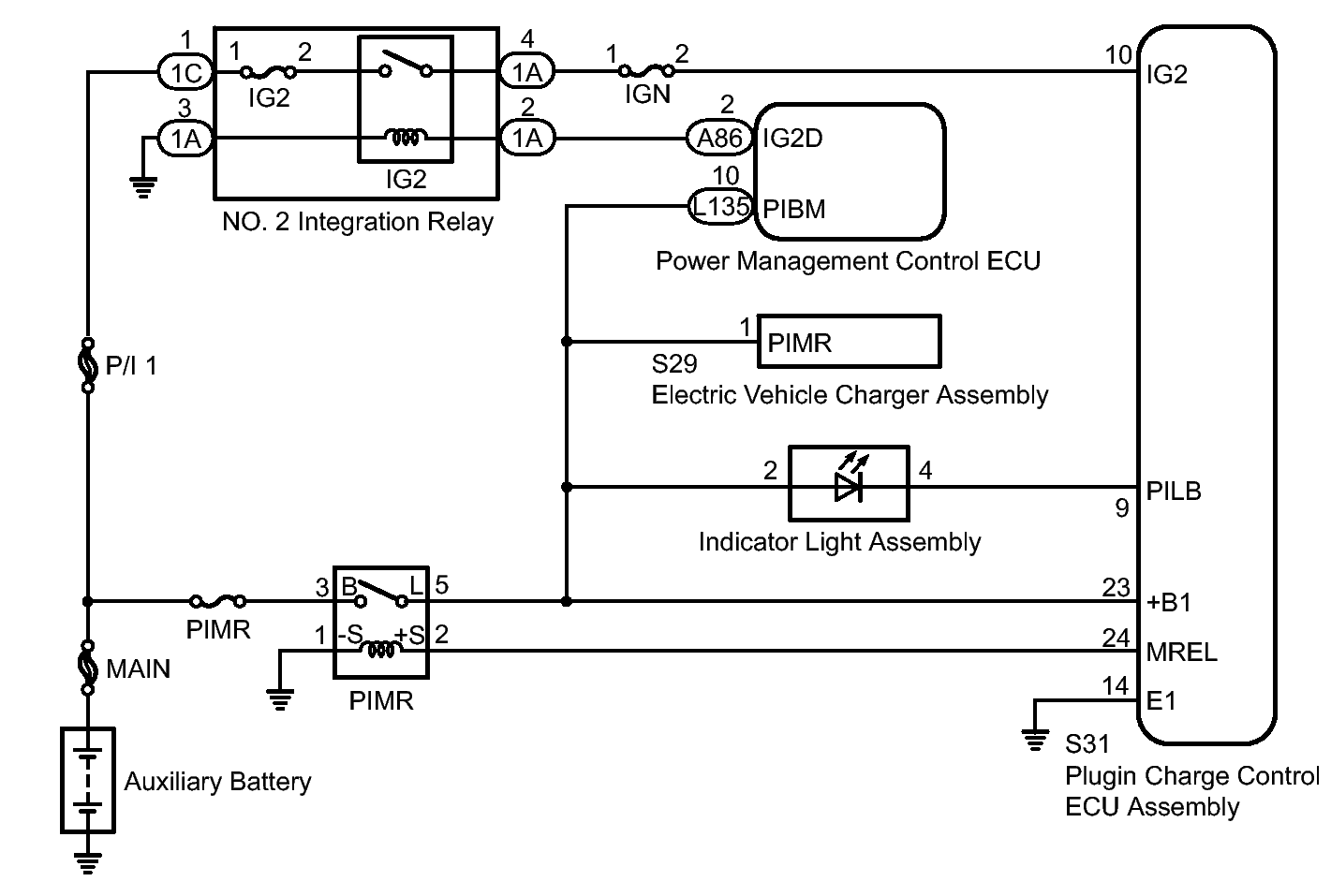

Fig 1: ECU Power Source Circuit Diagram
GTY434793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
