Components [08/2014 - ]: Illustration

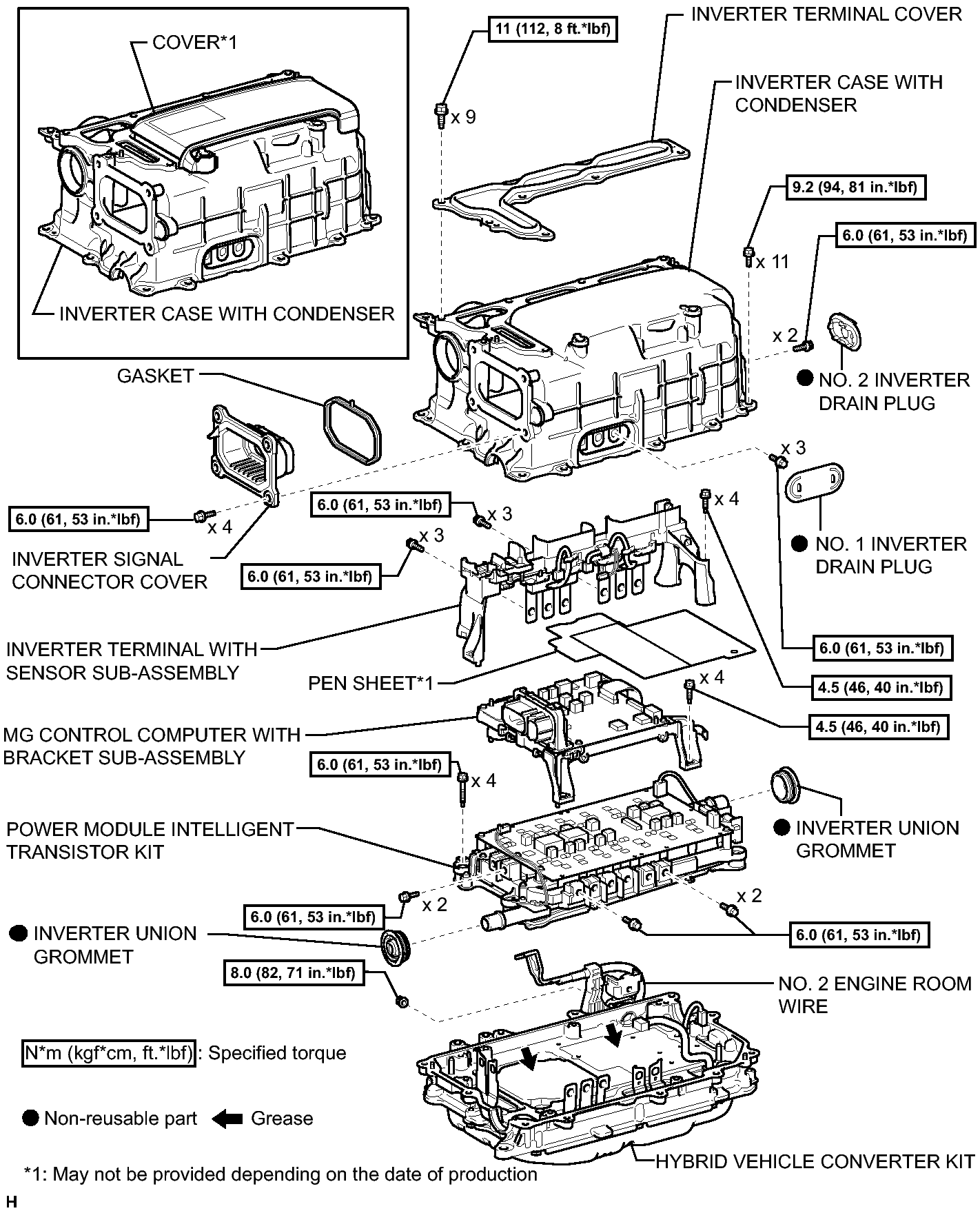

Fig 1: Identifying Inverter Replacement Components With Torque Specifications

GTY472570

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
